Product Information

Characteristics

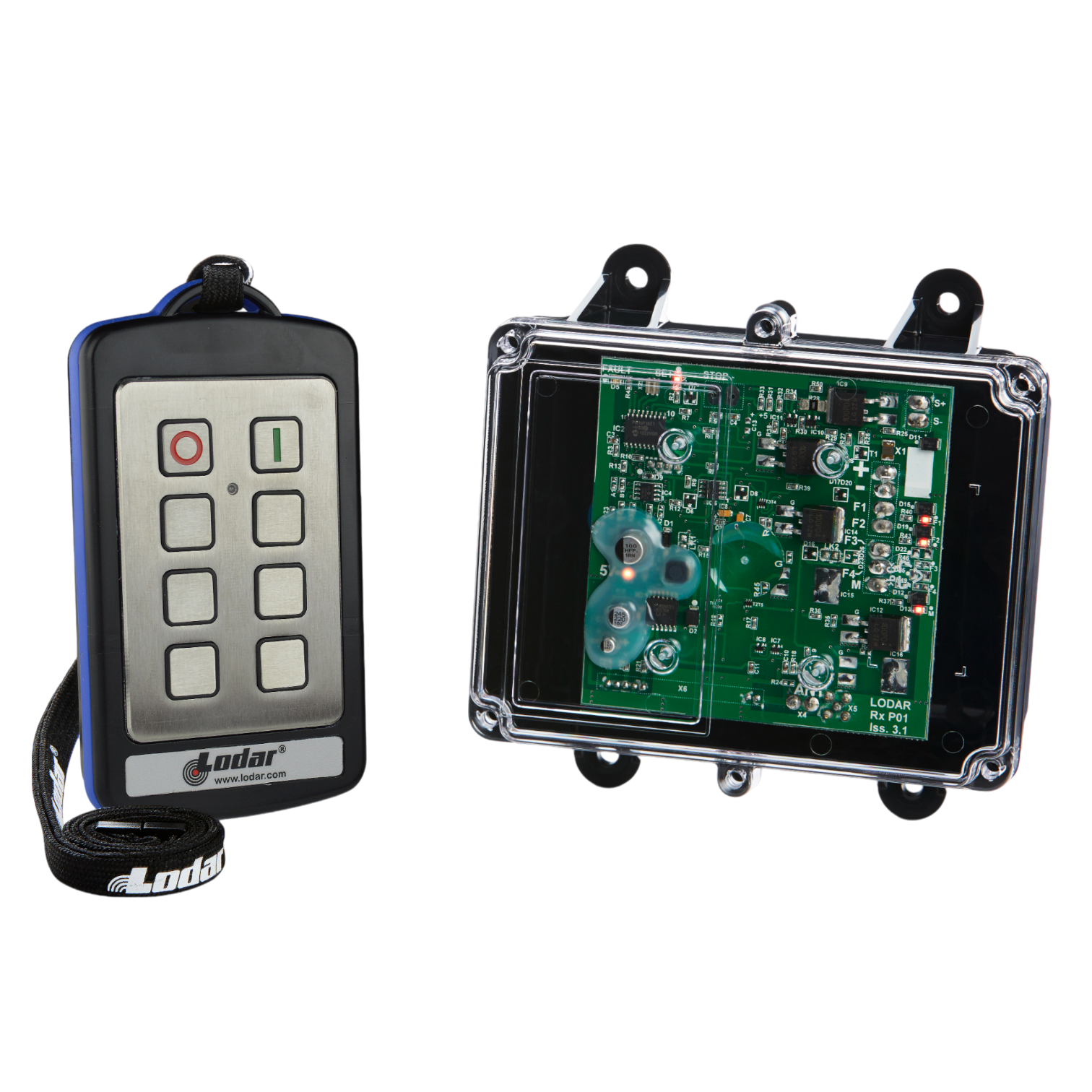

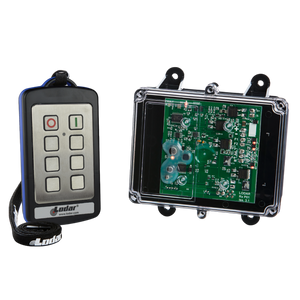

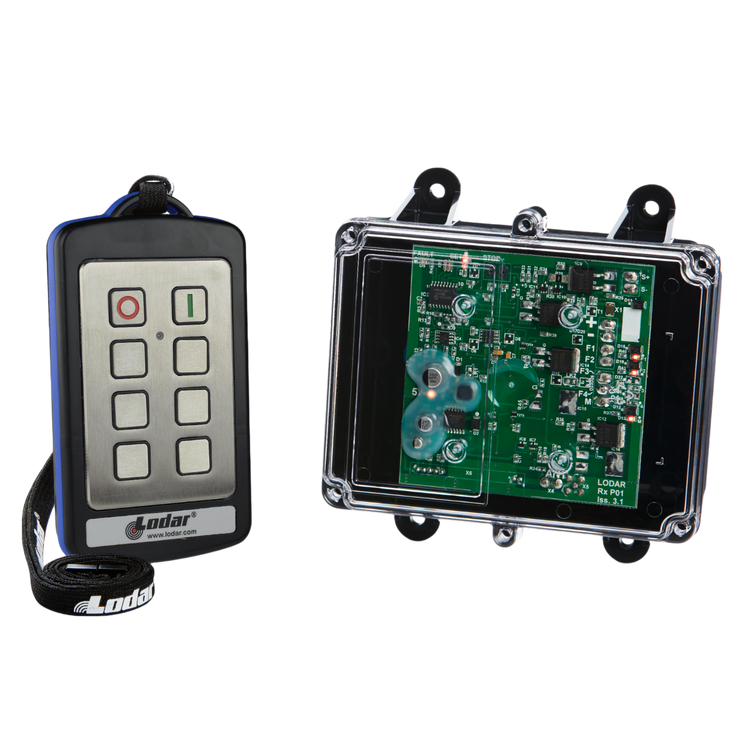

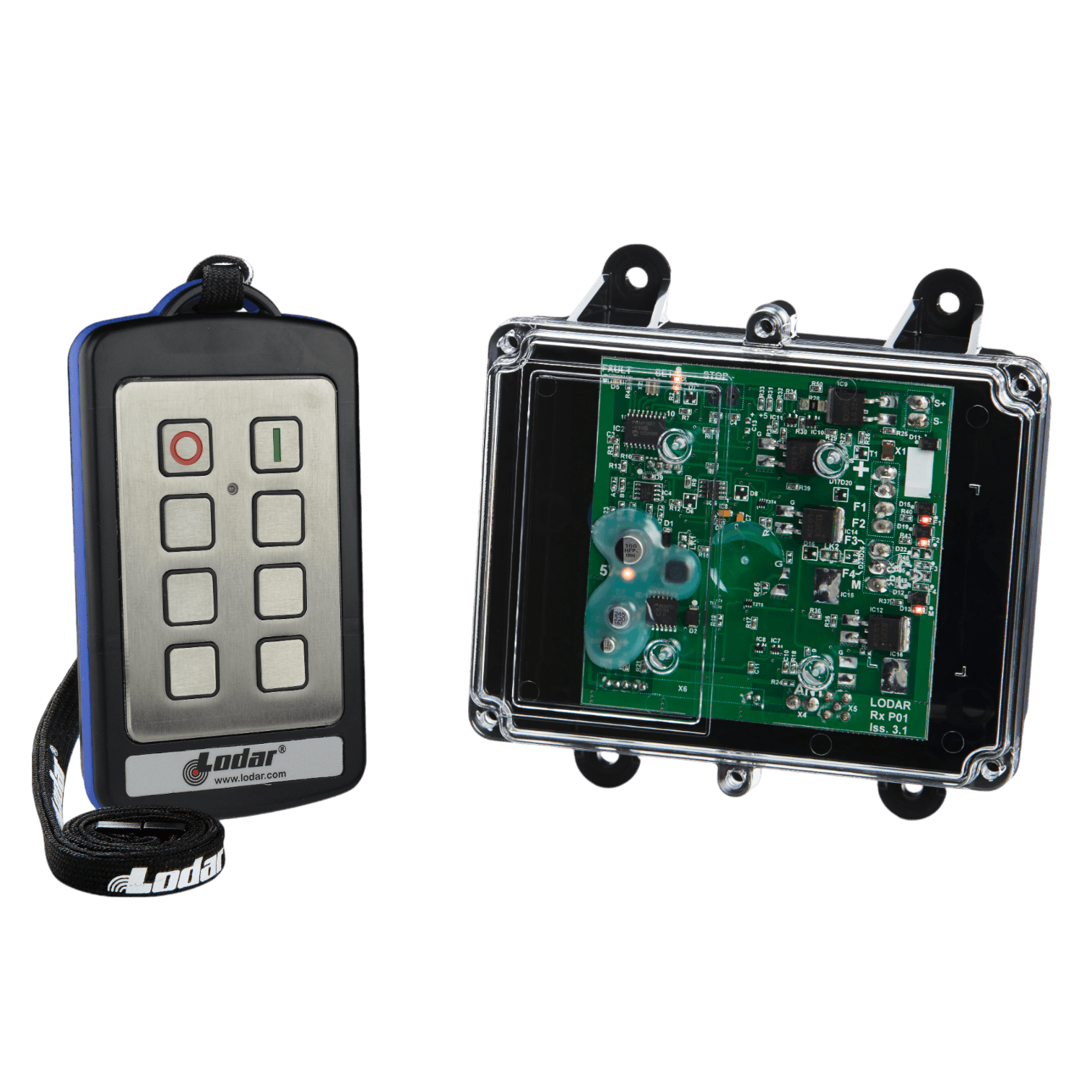

The 92 Series 2 Function Stainless Steel IP Wireless Control System boasts the strongest transmitter in the lineup and an ultra durable stainless steel keypad. With an IP rating of 65 for both the transmitter and receiver, this system is built to withstand tough industrial environments. Operating at 12/24 Volts DC with a range of 200 ft., this system includes a master output and can handle up to 10 amps per output.

Specifications

Specification Details
TRANSMITTER Stainless Steel Industrial
FUNCTIONS 2
OPERATING VOLTAGE 12/24 Volts DC
TRANSMITTER IP RATING IP 65
RECEIVER IP RATING IP 65
OPERATING DISTANCE 200 ft. (61 m.)
MASTER OUTPUT Yes
MAX AMPS 15
SERIES 9000 Series
TRANSMITTER BATTERIES AAA x 4
CHANNEL Wide Band, Fixed
FREQUENCY 418 MHz

Resources

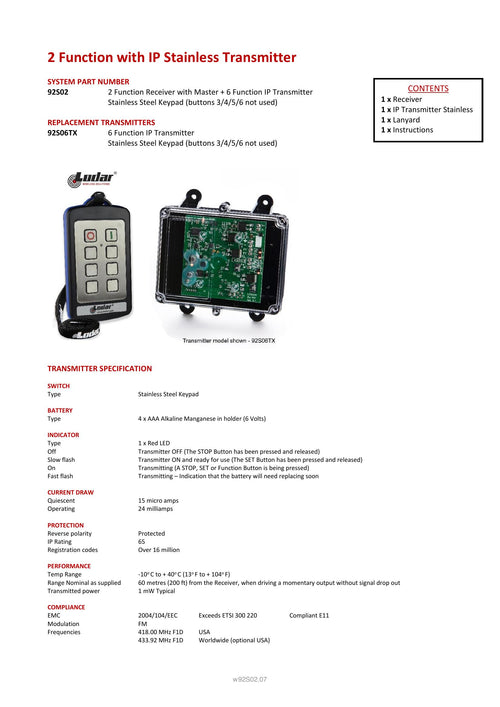

Spec Sheet
92S02 - 2 Function with IP Stainless Transmitter

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
Characteristics

The 92 Series 2 Function Stainless Steel IP Wireless Control System boasts the strongest transmitter in the lineup and an ultra durable stainless steel keypad. With an IP rating of 65 for both the transmitter and receiver, this system is built to withstand tough industrial environments. Operating at 12/24 Volts DC with a range of 200 ft., this system includes a master output and can handle up to 10 amps per output.
