Product Information

Characteristics

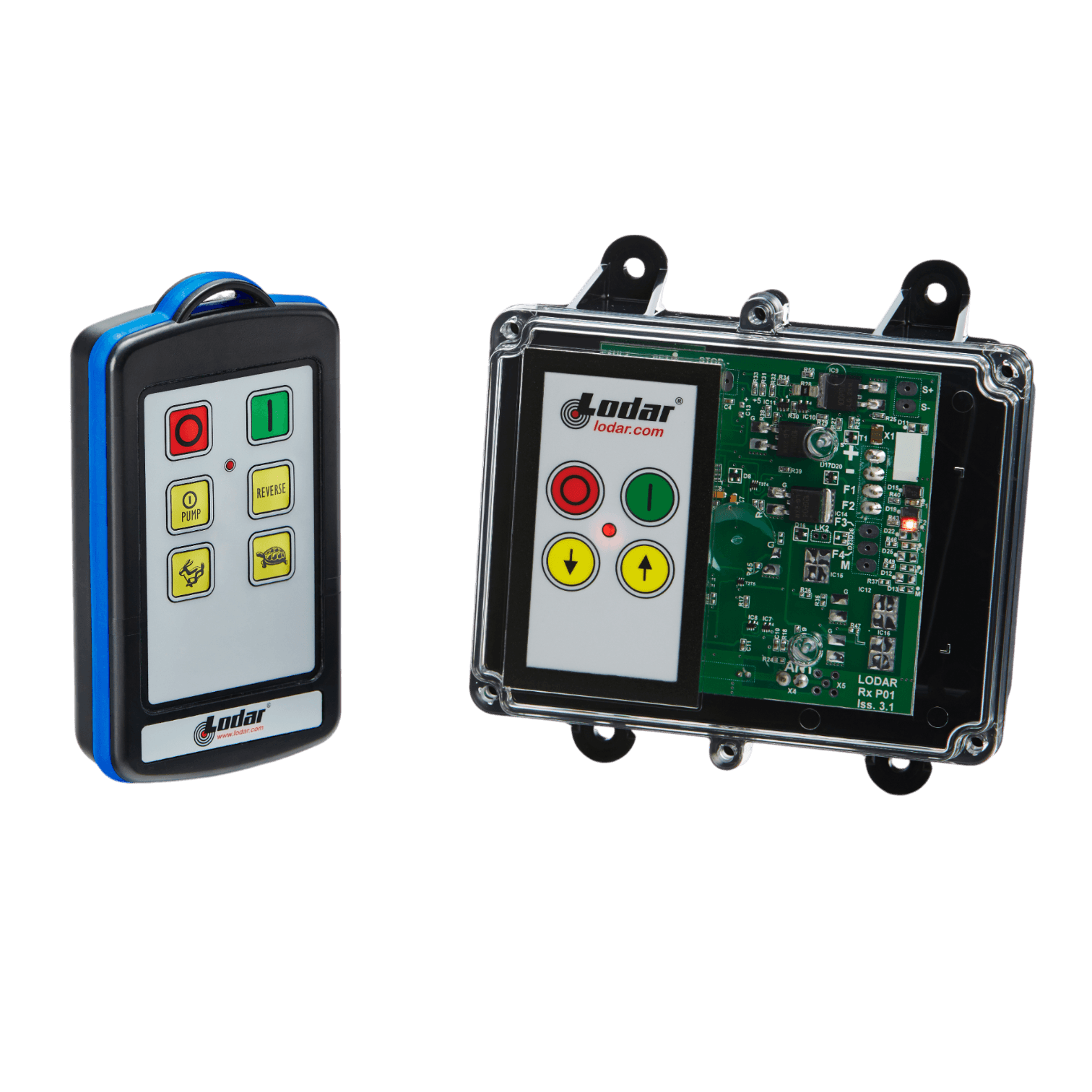

Equipped with an optional keypad mounted on the receiver, the Lodar 2-function wireless control system allows for easy control of up to 10-amp outputs and a range of 200 feet. Its master function and upgraded IP 65 series remote make it ideal for use with a variety of solenoid-operated equipment, including winches and electric/hydraulic machinery. Forget the constraints of corded remotes and complicated wiring - with Lodar, installation is a breeze on any 12/24 volt system. Suitable for a wide range of applications, such as stabilization, construction work, towing and recovery, pumping, automation, agriculture, and recreational vehicles.

Specifications

Specification Details
TRANSMITTER Industrial Pro
FUNCTIONS 2
OPERATING VOLTAGE 12/24 Volts DC
TRANSMITTER IP RATING IP 65
RECEIVER IP RATING IP 65
OPERATING DISTANCE 200 ft. (61 m.)
MASTER OUTPUT Yes
MAX AMPS 15
SERIES 9000 Series
SPECIAL FEATURES Receiver Keypad
CHANNEL Wide Band, Fixed

Resources

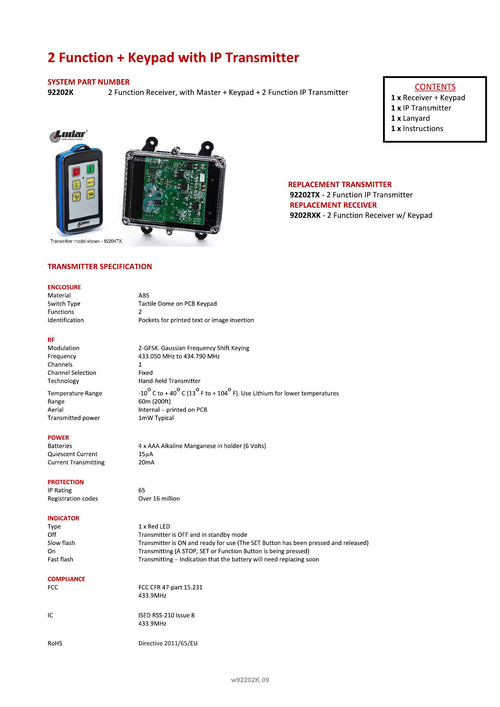

Spec Sheet
92202K - 2 Function + Keypad with IP Transmitter
Instructions
92-93 Series - Instructions IP Transmitter Coding
Wiring Diagram
92-93 Series - Wiring Instructions for 2 & 4 Function, FET Receivers.

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
Characteristics

Equipped with an optional keypad mounted on the receiver, the Lodar 2-function wireless control system allows for easy control of up to 10-amp outputs and a range of 200 feet. Its master function and upgraded IP 65 series remote make it ideal for use with a variety of solenoid-operated equipment, including winches and electric/hydraulic machinery. Forget the constraints of corded remotes and complicated wiring - with Lodar, installation is a breeze on any 12/24 volt system. Suitable for a wide range of applications, such as stabilization, construction work, towing and recovery, pumping, automation, agriculture, and recreational vehicles.
