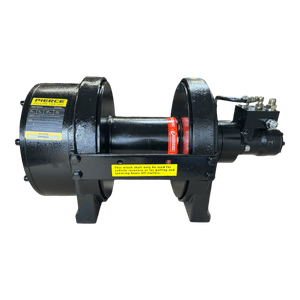

The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and air clutch features a black casing adorned with yellow labels on a black background.

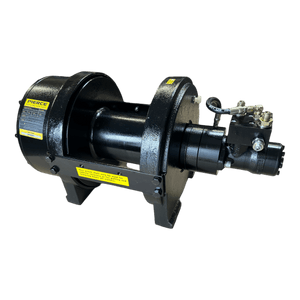

PIERCE 30,000 lb Hydraulic Recovery Winch featuring a narrow drum and air clutch, set against a dark background.

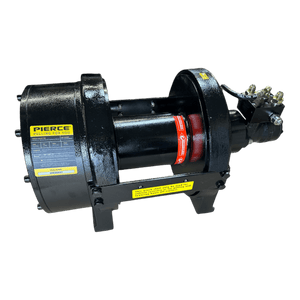

PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch on a black background, showcasing labels and connectors.
PSHDH Manual Clutch Option
PSHDH Air Clutch Option

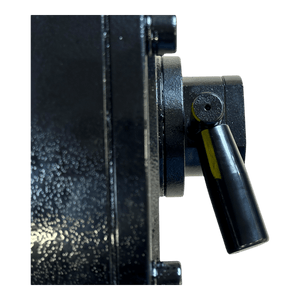

Close-up of a black mechanical lever on the textured metallic surface of the 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch by PIERCE.

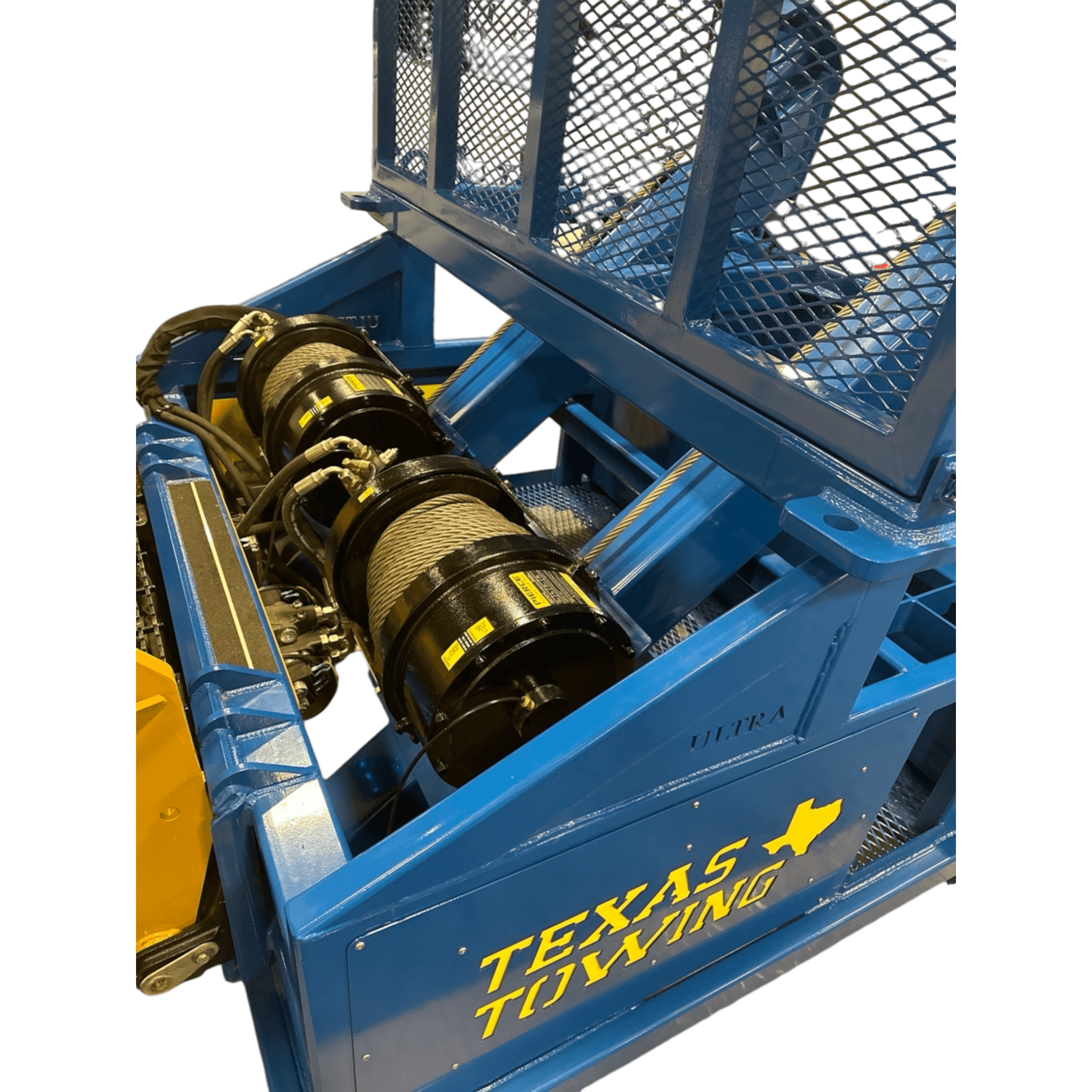

Dual Mounted PSHDH Winches
    The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and air clutch features a black casing adorned with yellow labels on a black background.
    PIERCE 30,000 lb Hydraulic Recovery Winch featuring a narrow drum and air clutch, set against a dark background.
    PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch on a black background, showcasing labels and connectors.
    PSHDH Manual Clutch Option
    PSHDH Air Clutch Option
    Close-up of a black mechanical lever on the textured metallic surface of the 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch by PIERCE.
    Dual Mounted PSHDH Winches
The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and air clutch features a black casing adorned with yellow labels on a black background.
PIERCE 30,000 lb Hydraulic Recovery Winch featuring a narrow drum and air clutch, set against a dark background.
PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch on a black background, showcasing labels and connectors.
PSHDH Manual Clutch Option
PSHDH Air Clutch Option
Close-up of a black mechanical lever on the textured metallic surface of the 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch by PIERCE.
Dual Mounted PSHDH Winches
The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and air clutch features a black casing adorned with yellow labels on a black background.
PIERCE 30,000 lb Hydraulic Recovery Winch featuring a narrow drum and air clutch, set against a dark background.
PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch on a black background, showcasing labels and connectors.
PSHDH Manual Clutch Option
PSHDH Air Clutch Option
Close-up of a black mechanical lever on the textured metallic surface of the 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch by PIERCE.
Dual Mounted PSHDH Winches
    The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and air clutch features a black casing adorned with yellow labels on a black background.
    PIERCE 30,000 lb Hydraulic Recovery Winch featuring a narrow drum and air clutch, set against a dark background.
    PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch on a black background, showcasing labels and connectors.
    PSHDH Manual Clutch Option
    PSHDH Air Clutch Option
    Close-up of a black mechanical lever on the textured metallic surface of the 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch by PIERCE.
    Dual Mounted PSHDH Winches
The PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and air clutch features a black casing adorned with yellow labels on a black background.
PIERCE 30,000 lb Hydraulic Recovery Winch featuring a narrow drum and air clutch, set against a dark background.
PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch on a black background, showcasing labels and connectors.
PSHDH Manual Clutch Option
PSHDH Air Clutch Option
Close-up of a black mechanical lever on the textured metallic surface of the 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Air Clutch by PIERCE.
Dual Mounted PSHDH Winches

Product Information

Expertly designed for the toughest jobs, the 30,000 lb Hydraulic Recovery Winch offers exceptional performance and reliability. With a powerful hydraulic motor and 2-stage planetary gear, it can handle loads with ease. The manual clutch and multidisc brake provide precise control and safety. Recommended for professionals.

What is Included

1 x (PSHDH30000ND) 30,000 lb Hydraulic Recovery Winch | Narrow Drum | Air Clutch ↗
1 x Roller Fairlead PSHDH Series
1 x Cable Tensioner
1 x Instructions

Specifications

BRAKE TYPE
Multidisc Brake
CLUTCH TYPE
Output Shaft Disengaged - Air Spool
CONSTRUCTION
Cast Housings with Steel Drum
DRUM ROTATION
Counter-Clockwise (Underwound)
GEAR RATIO
41:1
GEAR TYPE
2-Stage Planetary Gear
HYDRAULIC MOTOR
9.5 in³ / rev
MAX CAPACITY (LBS.)
30000
MAX LINE SPEED
16 fpm @ 15.9 gpm
MAX OIL FLOW (GPM)
15.9
MOUNTING BOLT PATTERN
7.5” x 12” ; 10.5” x 12”
OPERATIONAL PRESSURE (PSI)
2540
POWER SOURCE
Hydraulic
RECOMMENDED WIRE ROPE
⅝" x 141' (1,960 N/mm2grade a minimum breaking strength of 179 KN required)

PSHDH30000 Line Pull and Rope Layer

Data is calculated based on a consistently supplied 15.9 gpm flow with ⅝" winch cable. Environmental and other conditions may affect results. Always use the proper safety gear and follow all safety precautions when winching.
Layer of Wire Rope Pull by Layer (lbs.) Total Rope on the Drum (ft.) Line Speed (@ 15.9 gpm) fpm
1st 30,000 36 16
2nd 25,216 82 19
3rd 21,745 131 23
4th 19,115 190 26
5th 17,052 246 29

Warranty

1 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.

Resources

Spec Sheet
PSHDH30000

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

30,000 lb Hydraulic Recovery Winch | Narrow Drum | Air Clutch

PSHDH30000ND
$6,750.00
$6,750.00
$0.00
Shipping calculated at checkout.
In Stock
Customization Inquiry
WARNING
This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation
