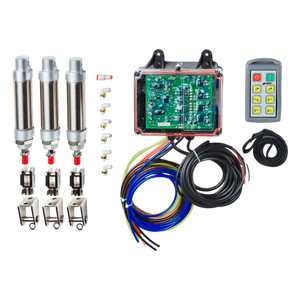

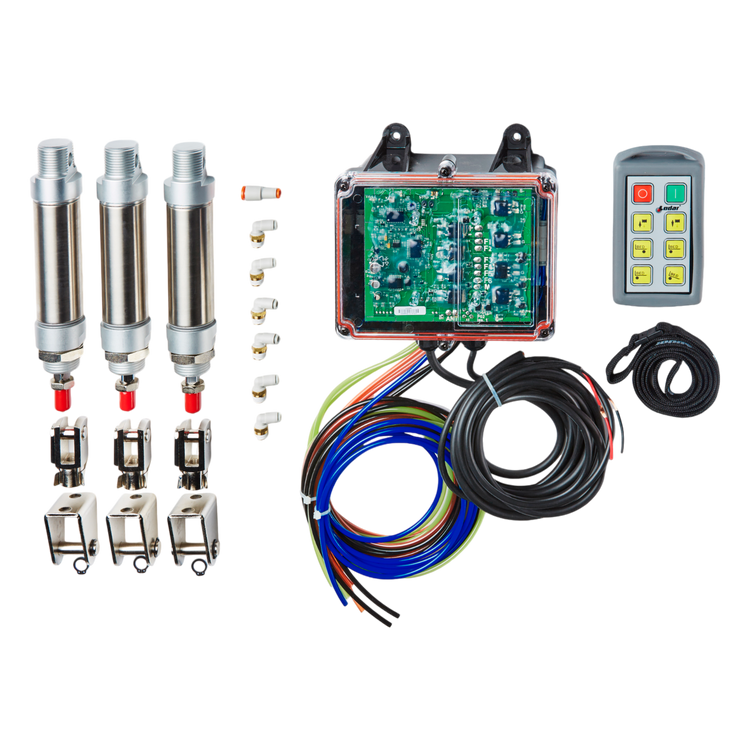

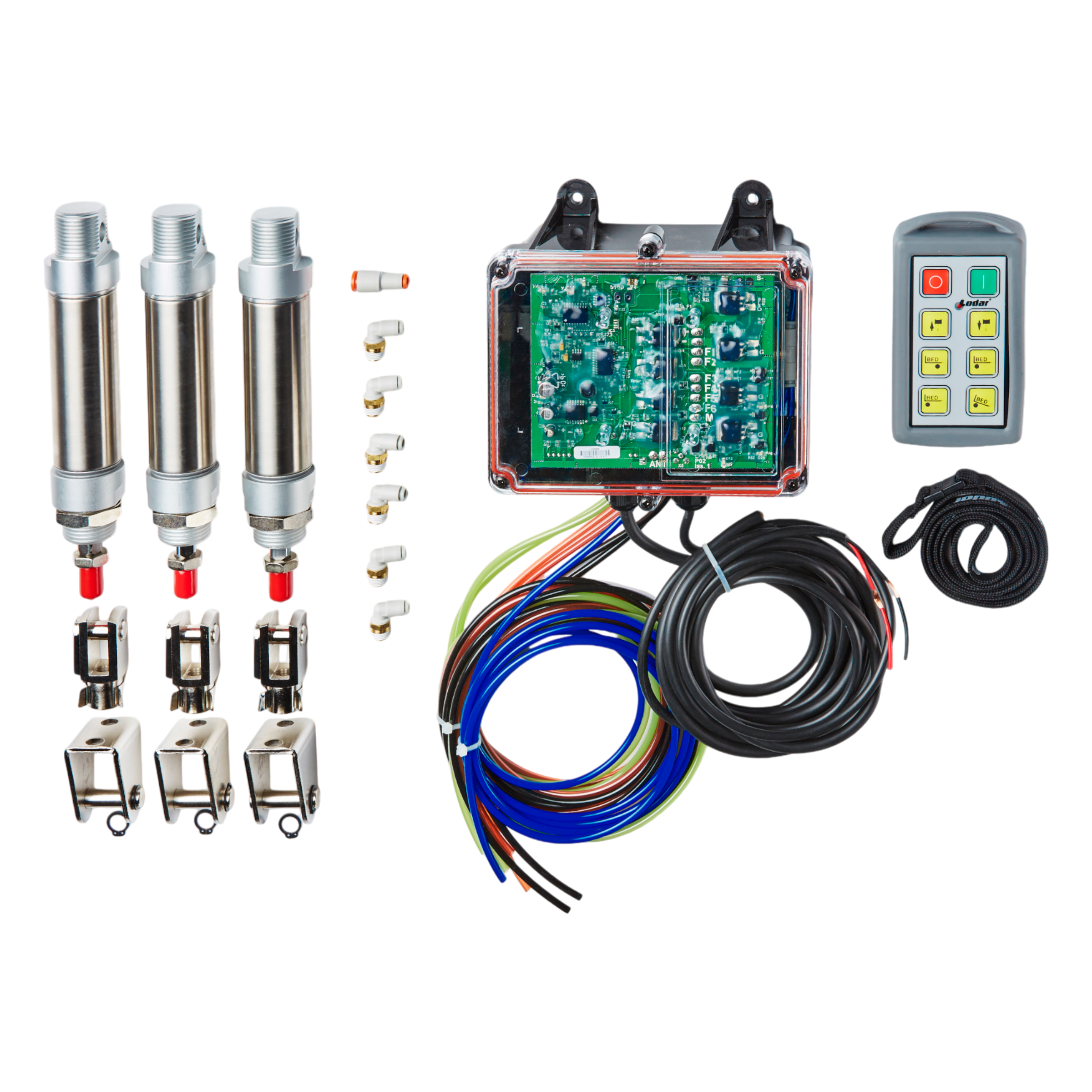

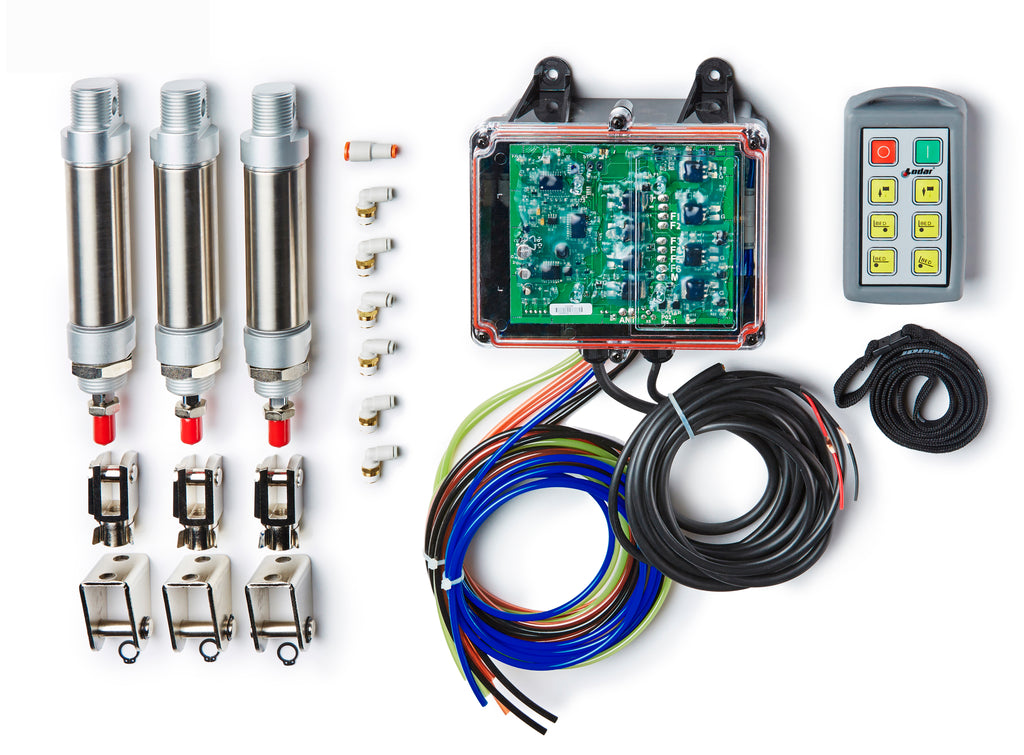

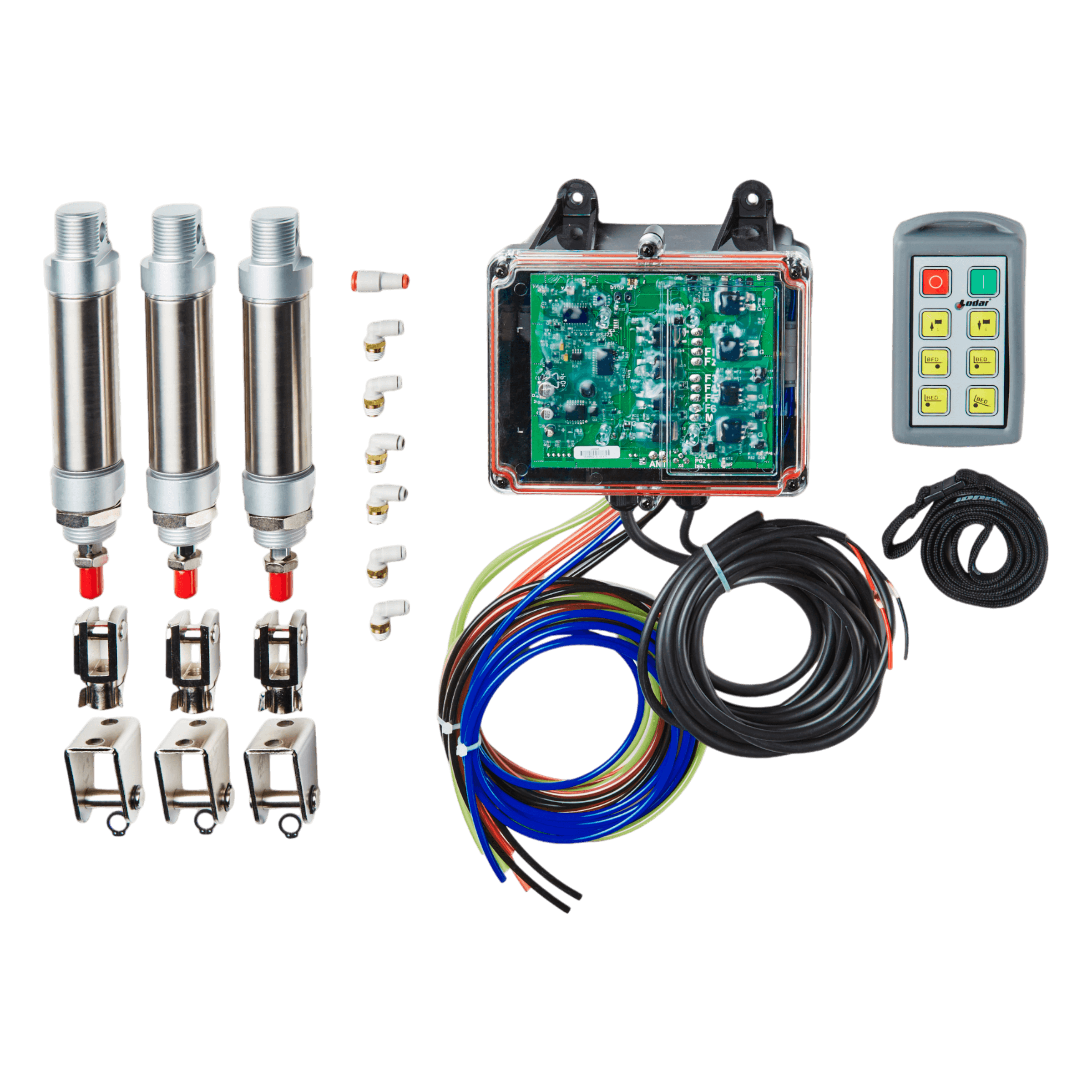

The 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver from Lodar LTD includes three sensors, cables, connectors, a circuit box, and an advanced remote control system.
Pairing the 92 Series Lodar Remote & Transmitter
    The 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver from Lodar LTD includes three sensors, cables, connectors, a circuit box, and an advanced remote control system.
    Pairing the 92 Series Lodar Remote & Transmitter
The 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver from Lodar LTD includes three sensors, cables, connectors, a circuit box, and an advanced remote control system.
Pairing the 92 Series Lodar Remote & Transmitter
The 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver from Lodar LTD includes three sensors, cables, connectors, a circuit box, and an advanced remote control system.
Pairing the 92 Series Lodar Remote & Transmitter
    The 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver from Lodar LTD includes three sensors, cables, connectors, a circuit box, and an advanced remote control system.
    Pairing the 92 Series Lodar Remote & Transmitter
The 6 Function Standard Wireless Actuator Control System | 92 Series | FET Air Receiver from Lodar LTD includes three sensors, cables, connectors, a circuit box, and an advanced remote control system.
Pairing the 92 Series Lodar Remote & Transmitter

Product Information

Characteristics

The Lodar Wireless Air Actuator Control System - 6 Functions has a range of 200 ft. and is compatible with most popular carriers and wreckers that use levers for operation. When paired with an air source, this system enables remote control of levers, maintaining a safe working distance. It includes the Lodar 6-function system with integrated air valves, along with all necessary air lines and cylinders.

This wireless remote control system operates hand levers safely and effectively. The increased safety, effectiveness, and installation make it not only an alternative, but a clear choice.

Operation Requirements

  • On-Board Air Supply via Air Compressor with at Least 110-120 PSI
  • On-Board 12 Volt Power

    Specifications

    Specification Details
    TRANSMITTER Standard
    FUNCTIONS 6
    ACTUATOR Air
    OPERATING VOLTAGE 12/24 Volts DC
    TRANSMITTER IP RATING IP 54
    RECEIVER IP RATING IP 65
    OPERATING DISTANCE 200 ft. (61 m.)
    MAX AMPS 15
    SERIES 9000 Series
    TRANSMITTER BATTERIES 9V x 1
    FREQUENCY 433 MHz
    TYPE Full System

    Resources

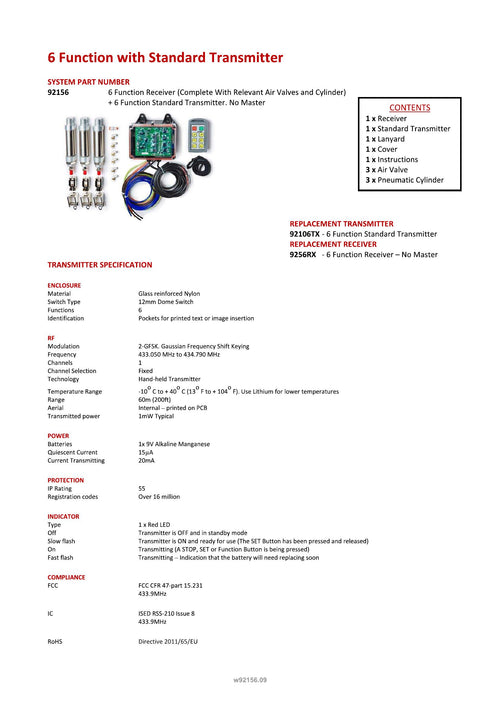

    Spec Sheet
    92156 - 6 Function with Standard Transmitter
    Instructions
    92-93 Series - Instructions Standard Transmitter Coding

    Warranty

    5 Year Pro-Rated Warranty
    For the first 2 years Warranty is unlimited.
    • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
    • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
    For the following 3 years Warranty is pro-rated.
    • During that period, your Distributor will replace with a new product at a discounted price.
    • These prices are set by each Distributor.
    • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
    Conditions
    • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
    • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
    • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
    • Lodar 8000 Series are now totally out of warranty and are not covered.
    • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
    Characteristics

    The Lodar Wireless Air Actuator Control System - 6 Functions has a range of 200 ft. and is compatible with most popular carriers and wreckers that use levers for operation. When paired with an air source, this system enables remote control of levers, maintaining a safe working distance. It includes the Lodar 6-function system with integrated air valves, along with all necessary air lines and cylinders.

    This wireless remote control system operates hand levers safely and effectively. The increased safety, effectiveness, and installation make it not only an alternative, but a clear choice.

    Operation Requirements

    • On-Board Air Supply via Air Compressor with at Least 110-120 PSI
    • On-Board 12 Volt Power
