Product Information
Characteristics

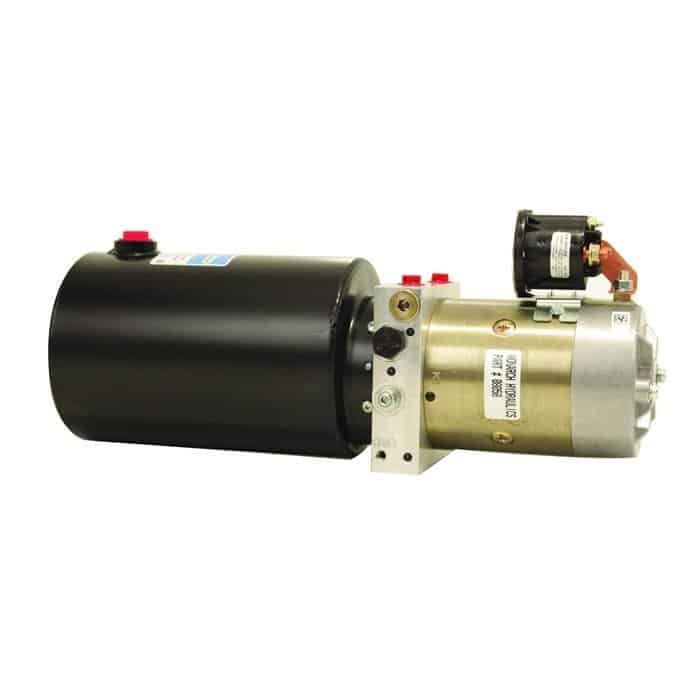

Bucher Dual Action (Power Up / Power Down) Hydraulic Pump Features:
- 3 Quart Steel Tank
- 1.25 GPM at 1,750 psi.
- Horizontal mount.
Applications: Perfect for Hay Bale Spears (ABS1K & ABS2K)
Why Bucher?
- Units are manufactured in the USA.
- 100% unit and pump testing on a computer-operated test stand.
- ISO9001 certified Pump parts are machined to very tight tolerances to increase efficiency.
- Customer-oriented and high-quality customer service.
- Less than 1% warranty returns.
Specifications
| Specification | Details |
|---|---|
| OPERATING VOLTAGE | 12 Volts DC |
| MAX OIL FLOW (GPM) | 1.5 |
| OPERATIONAL PRESSURE (PSI) | 2500 |
| RESERVOIR CAPACITY | 3 Quarts |
| RESERVOIR MATERIAL | Steel |
| HOSE CONNECTIONS | #6 SAE |
| RECOMMENDED FLUID | ATF (Automatic Transmission Fluid) |
| PUMP DIRECTIONS | 2-Way (Power Up / Power Down) |
| OPERATING TEMPERATURE RANGE | -20ºF to 130ºF (-30ºC to 55ºC) |
Resources
Spec Sheet
PM-3554-0131 Spec Sheet
Wiring Diagram
PM-3554-0131 - Bucher Pump with Dual Action Wiring Diagram
Guide
Pump Troubleshooting Guide
Wiring Diagram
PS002 - PM-3554 - Wireless Remote to Bucher Pump Wiring Diagram
