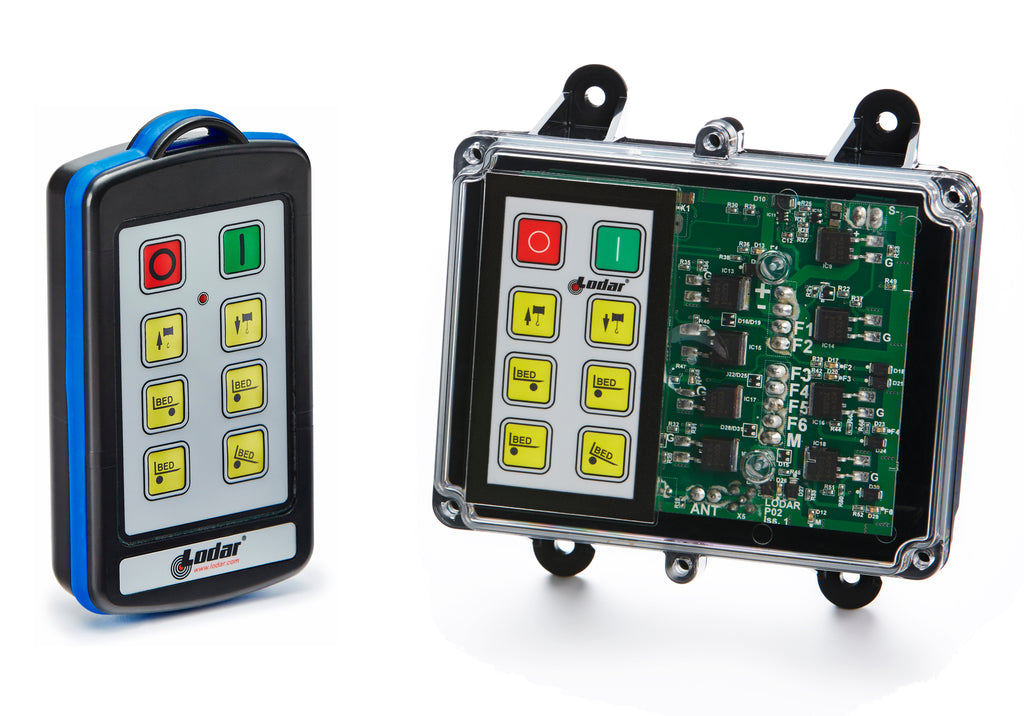

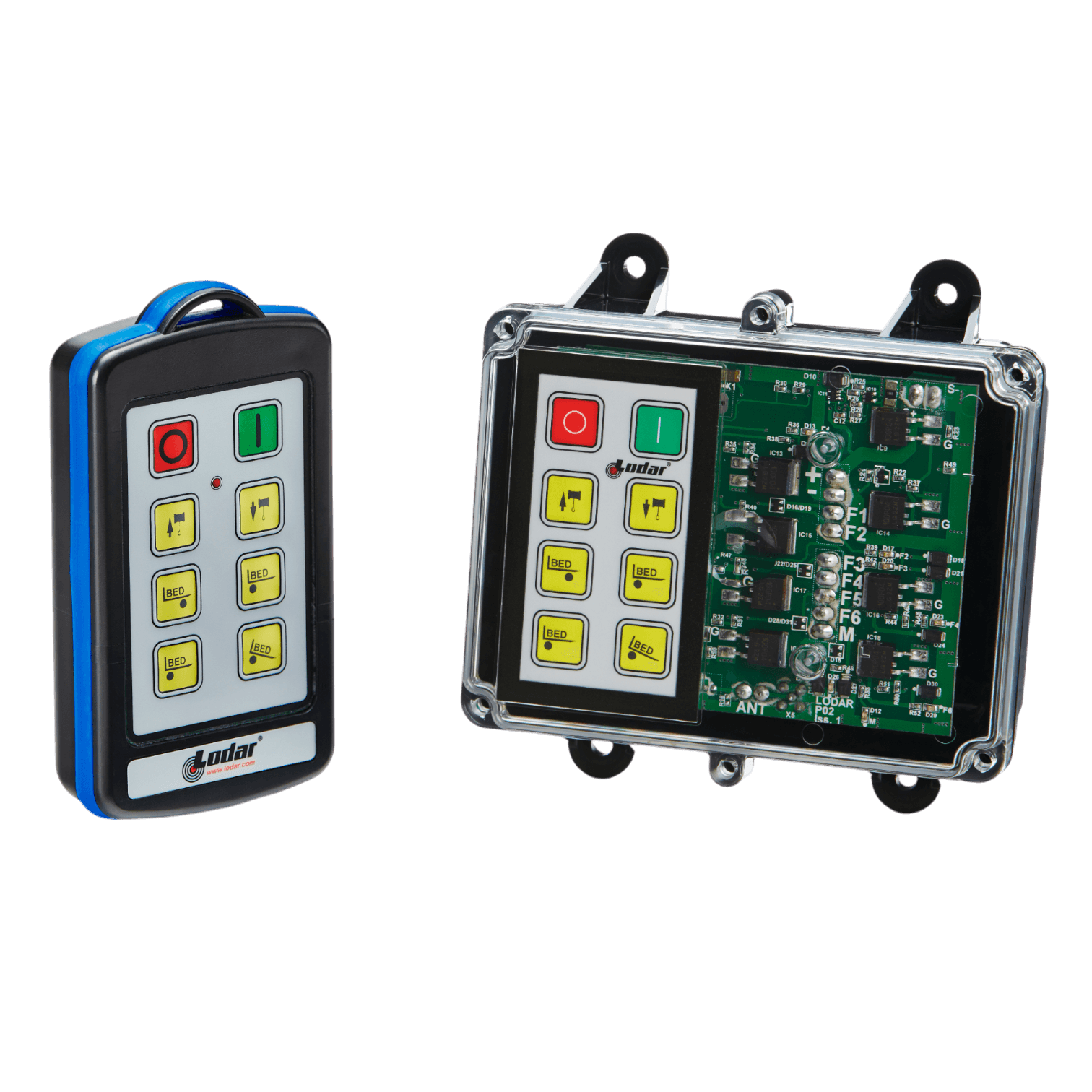

Two electronic devices: a Lodar LTD 6 Function IP Wireless Control System with buttons and a 92 Series FET Keypad Receiver featuring labeled buttons in clear casings.
Pairing the 92 Series Lodar Remote & Transmitter
    Two electronic devices: a Lodar LTD 6 Function IP Wireless Control System with buttons and a 92 Series FET Keypad Receiver featuring labeled buttons in clear casings.
    Pairing the 92 Series Lodar Remote & Transmitter
Two electronic devices: a Lodar LTD 6 Function IP Wireless Control System with buttons and a 92 Series FET Keypad Receiver featuring labeled buttons in clear casings.
Pairing the 92 Series Lodar Remote & Transmitter
Two electronic devices: a Lodar LTD 6 Function IP Wireless Control System with buttons and a 92 Series FET Keypad Receiver featuring labeled buttons in clear casings.
Pairing the 92 Series Lodar Remote & Transmitter
    Two electronic devices: a Lodar LTD 6 Function IP Wireless Control System with buttons and a 92 Series FET Keypad Receiver featuring labeled buttons in clear casings.
    Pairing the 92 Series Lodar Remote & Transmitter
Two electronic devices: a Lodar LTD 6 Function IP Wireless Control System with buttons and a 92 Series FET Keypad Receiver featuring labeled buttons in clear casings.
Pairing the 92 Series Lodar Remote & Transmitter

Product Information

Lodar 6-function wireless control system with optional keypad mounted on the receiver. Features up to 200 foot range, 10 amp outputs. Works on any 12-24V solenoid operated equipment. Includes a master function. Comes with upgraded IP series remote. This Lodar industrial radio control system is perfect for winches or other electric/hydraulic equipment. Lodar removes the limitations of corded remotes and uses simple wiring and installation to any 12/24 volt electric or hydraulic over the electric valve.

Specifications

CHANNEL
Wide Band, Fixed
FUNCTIONS
6
MASTER OUTPUT
Yes
MAX AMPS
15
OPERATING DISTANCE
200 ft. (61 m.)
OPERATING VOLTAGE
12/24 Volts DC
RECEIVER IP RATING
IP 65
SERIES
9000 Series
SPECIAL FEATURES
Receiver Keypad
TRANSMITTER
Industrial Pro
TRANSMITTER IP RATING
IP 65

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
