Product Information

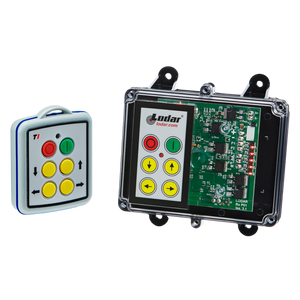

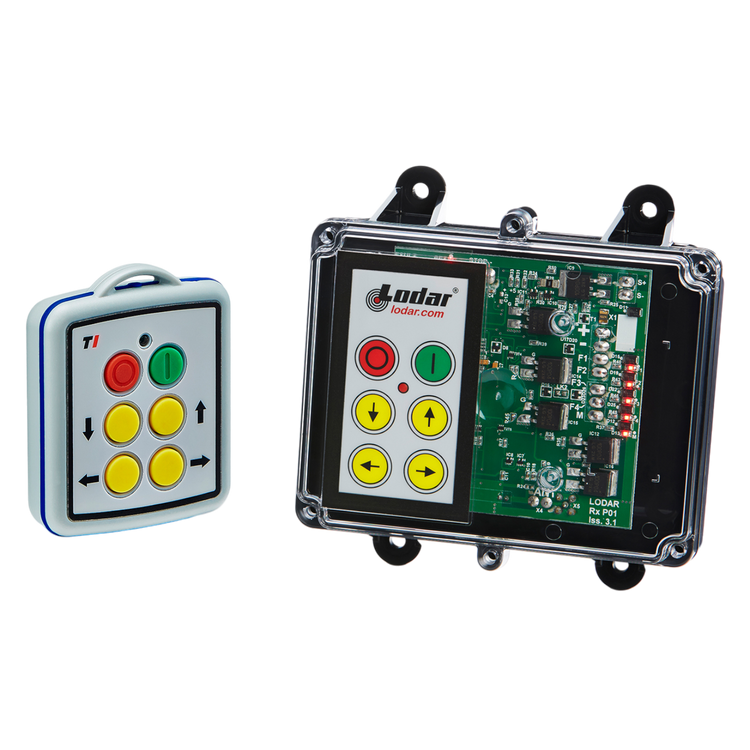

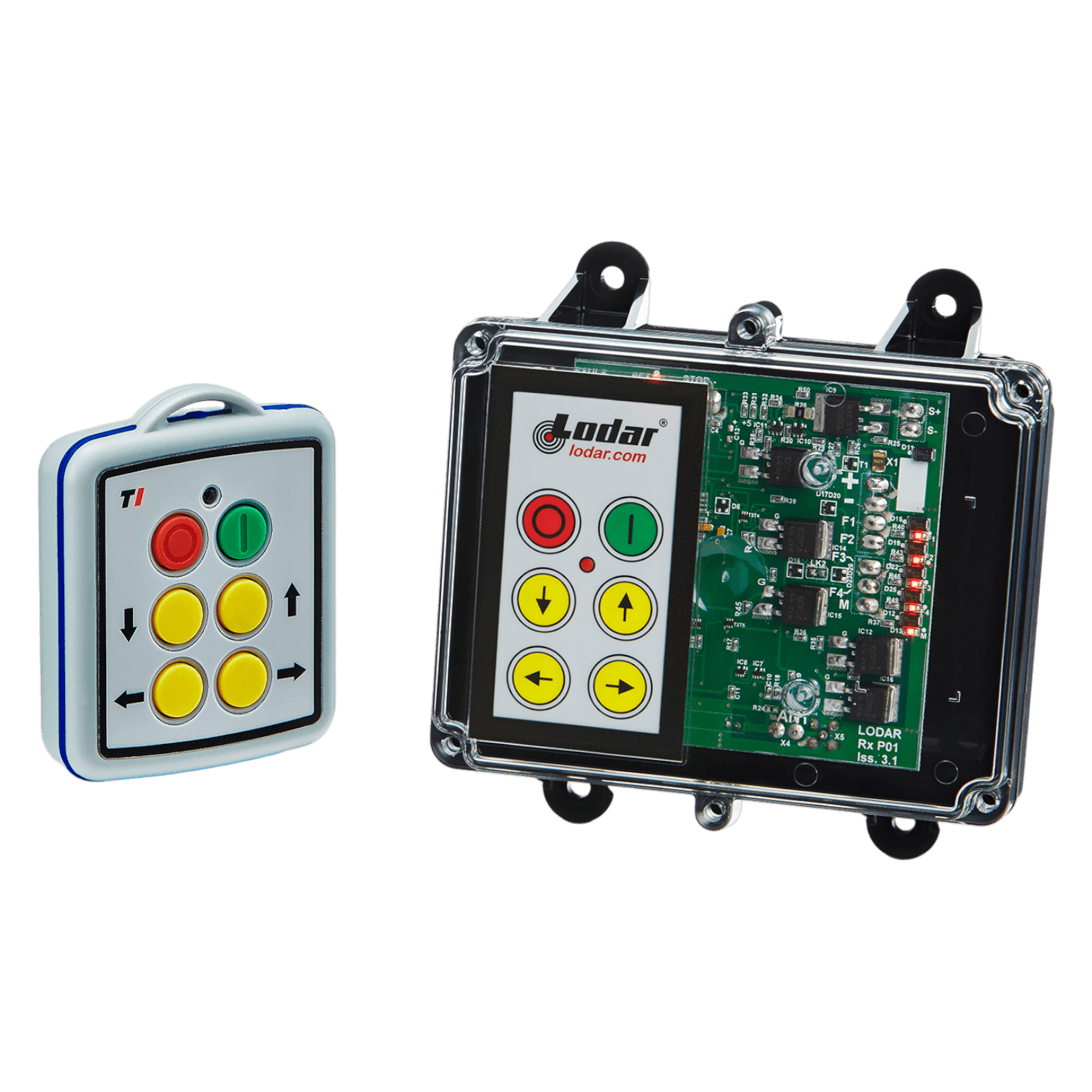

The Lodar wireless control system features a 4-function mini remote and a master function, with a transmitter and receiver both rated IP 67 and IP 66, respectively. Designed to work on 12-24V solenoid operated equipment, it offers an operating distance of 200 feet (61 meters) and can handle up to 15 amps of power. This system also includes a receiver keypad for added convenience.
What is Included
Specifications
Specification | Details |
---|---|
TRANSMITTER | Mini |
FUNCTIONS | 4 |
OPERATING VOLTAGE | 12/24 Volts DC |
TRANSMITTER IP RATING | IP 67 |
RECEIVER IP RATING | IP 65 |
OPERATING DISTANCE | 200 ft. (61 m.) |
MAX AMPS | 15 |
SERIES | 9000 Series |
SPECIAL FEATURES | Receiver Keypad |
CHANNEL | Wide Band, Fixed |
SWITCH TYPE | Silicone Rubber Keypad with Carbon Pill |
Resources
Warranty
The Lodar wireless control system features a 4-function mini remote and a master function, with a transmitter and receiver both rated IP 67 and IP 66, respectively. Designed to work on 12-24V solenoid operated equipment, it offers an operating distance of 200 feet (61 meters) and can handle up to 15 amps of power. This system also includes a receiver keypad for added convenience.
4 Function Mini Wireless Control System | 92 Series | FET Keypad Receiver
92004K-8
