Product Information

Characteristics

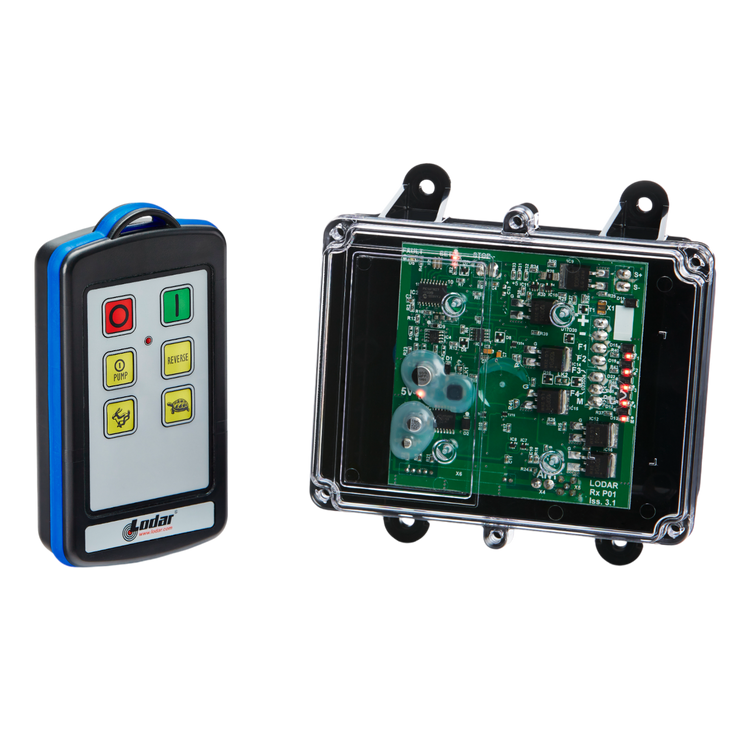

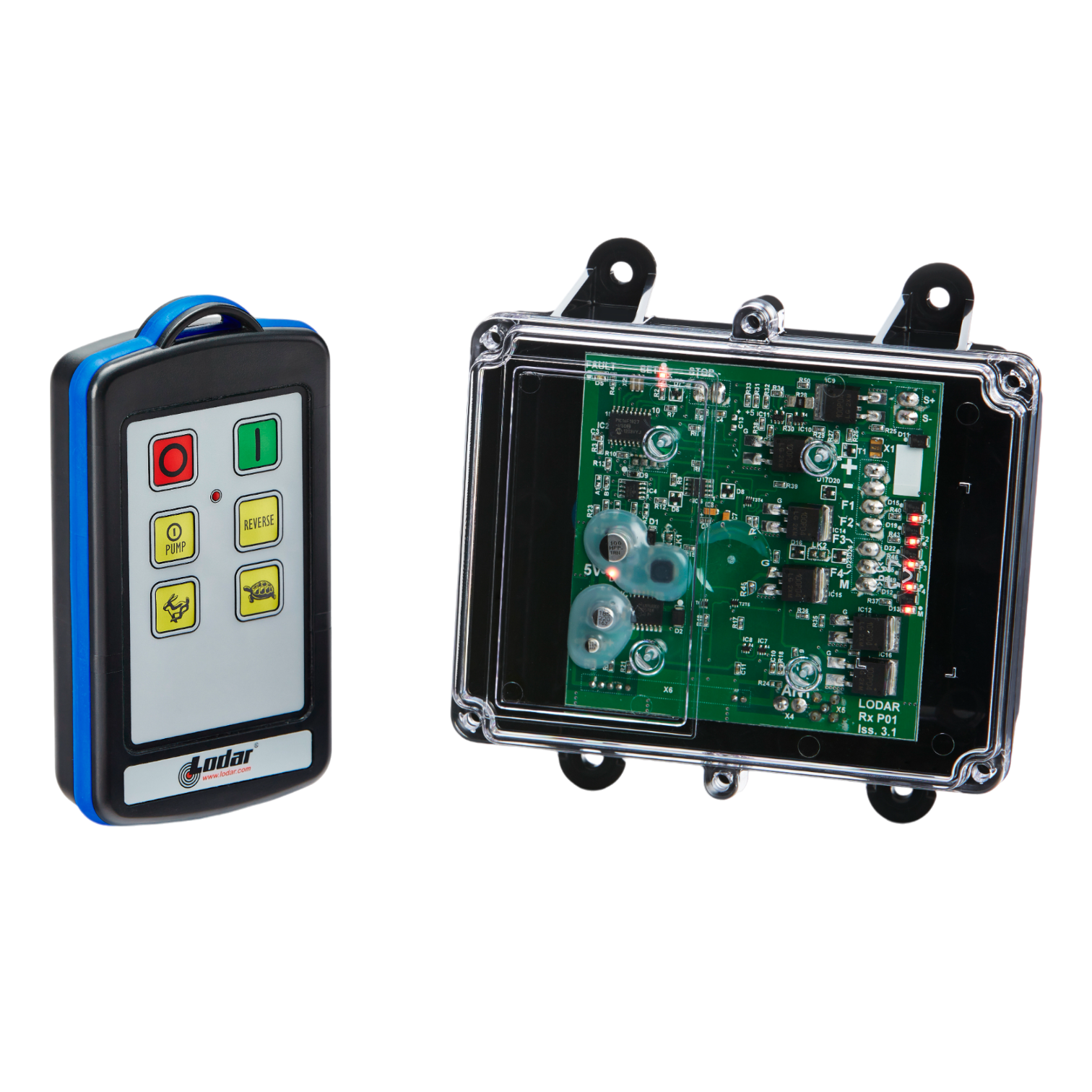

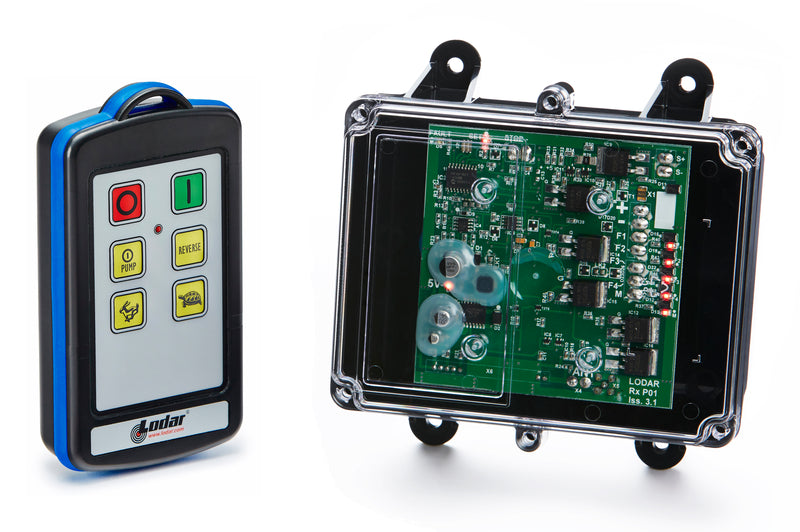

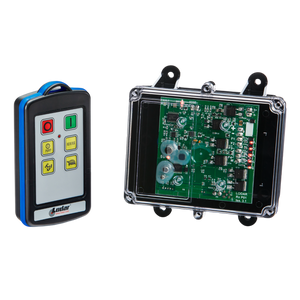

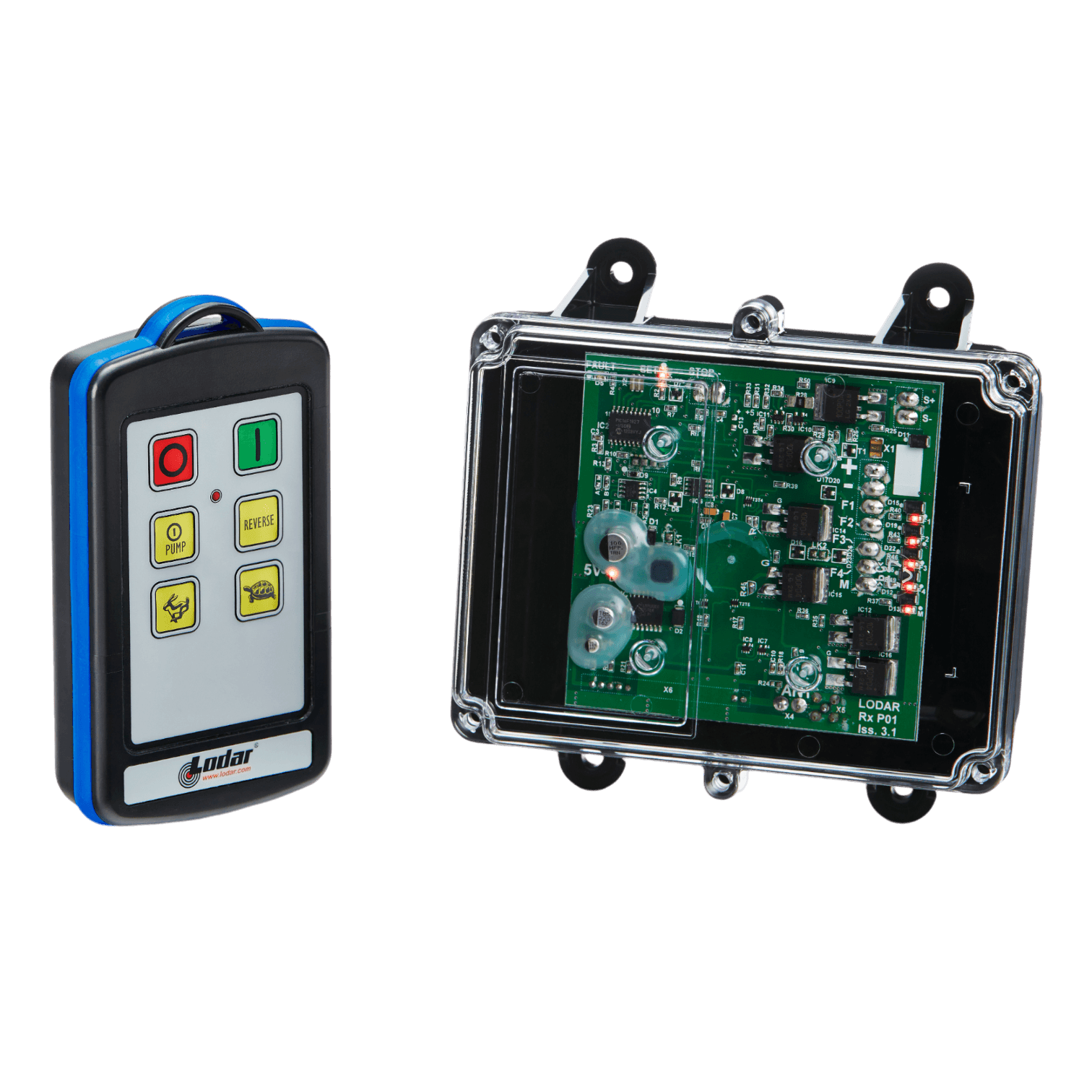

The 4 Function Lodar Industrial Wireless Control System offers a 200-foot range and 10-amp outputs, making it perfect for winches and other electric/hydraulic equipment. With an upgraded IP series remote, this system eliminates the limitations of corded remotes and allows for simple wiring and installation to any 12/24 volt electric or hydraulic equipment. It also features a master function and utilizes FETs (Field-Effect Transistors) instead of mechanical relays.  Suitable for various industries including stabilization, concrete/construction, towing and recovery, pumping, automation, agriculture, and recreation.

Specifications

Specification Details
TRANSMITTER Industrial Pro
FUNCTIONS 4
OPERATING VOLTAGE 12/24 Volts DC
TRANSMITTER IP RATING IP 65
RECEIVER IP RATING IP 65
OPERATING DISTANCE 200 ft. (61 m.)
MASTER OUTPUT Yes
MAX AMPS 15
SERIES 9000 Series
TRANSMITTER BATTERIES AAA x 4
CHANNEL Wide Band, Fixed
FREQUENCY 418 MHz
TYPE Full System

Resources

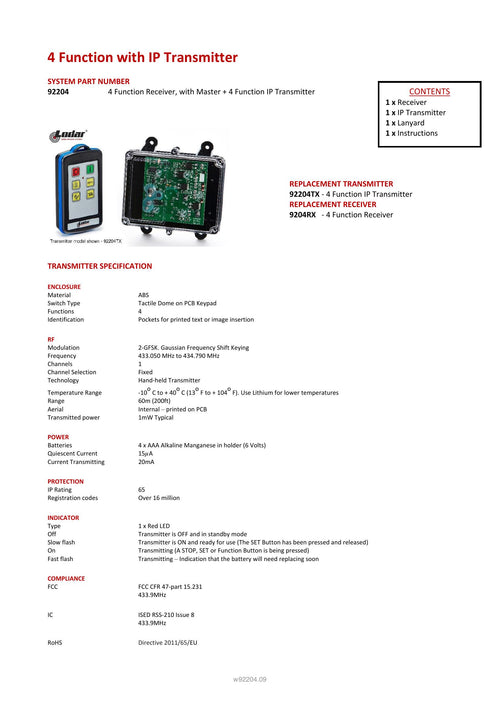

Spec Sheet
92204 - 4 Function with IP Transmitter
Wiring Diagram
92-93 Series - Wiring Instructions for 2 & 4 Function FET Receivers
Instructions
92-93 Series - Instructions IP Transmitter Coding

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
Characteristics

The 4 Function Lodar Industrial Wireless Control System offers a 200-foot range and 10-amp outputs, making it perfect for winches and other electric/hydraulic equipment. With an upgraded IP series remote, this system eliminates the limitations of corded remotes and allows for simple wiring and installation to any 12/24 volt electric or hydraulic equipment. It also features a master function and utilizes FETs (Field-Effect Transistors) instead of mechanical relays.  Suitable for various industries including stabilization, concrete/construction, towing and recovery, pumping, automation, agriculture, and recreation.
