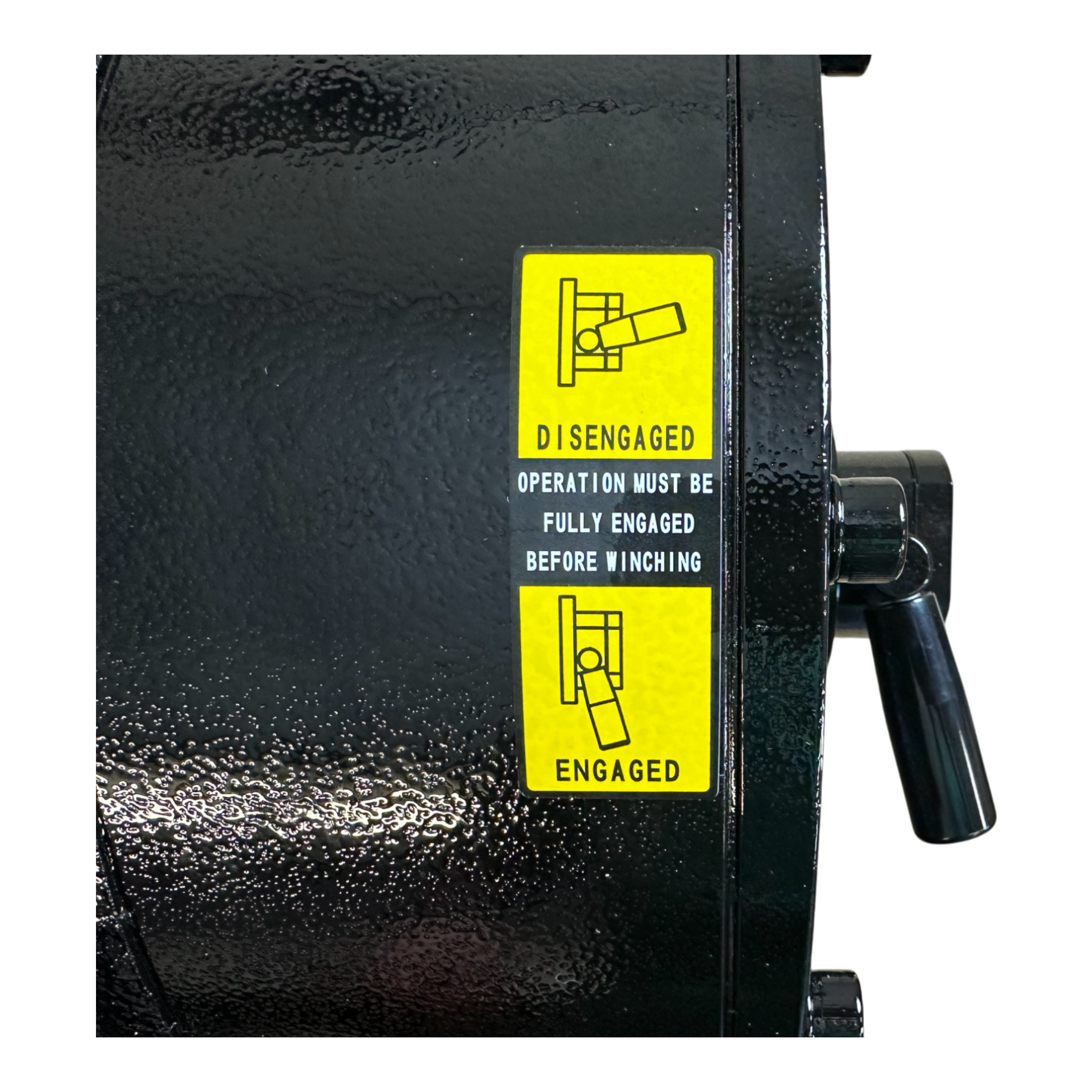

Showcasing the intricate workings of a manual clutch, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum is set against a dark backdrop, featuring metal springs and components in its mechanical design.
Close-up of a black mechanical device featuring yellow labels and red knobs on a black background, showcasing the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighting its intricate planetary gear system.
A PIERCE 30,000 lb hydraulic recovery winch with a narrow drum, robust manual clutch, and advanced planetary gear system rests elegantly against a dark backdrop.
A powerful 30,000 lb hydraulic recovery winch with a narrow drum and a manual clutch from PIERCE commands attention against a black background, emanating an aura of unbeatable strength.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch, featuring a yellow label showing Disengaged and Engaged positions, emphasizing its sturdy planetary gear system for improved efficiency.

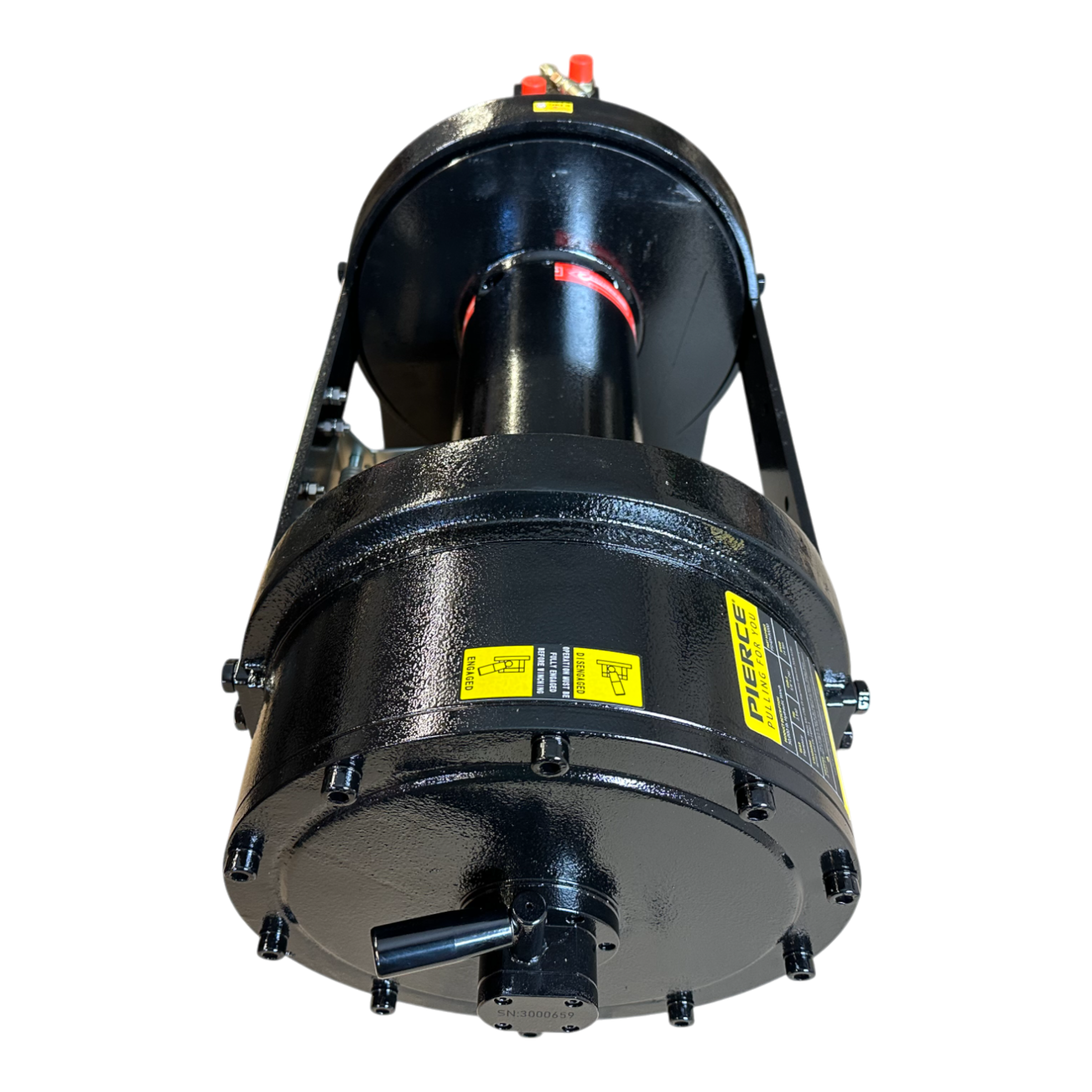

Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum, featuring a black industrial hydraulic motor, connected hoses, metal fittings, and an integrated planetary gear system.
    The **PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch** is showcased on a black background. This industrial winch features a central drum and labels, using a manual clutch along with a planetary gear system to provide precision and power for demanding applications.
    Against the black background, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighted by its yellow labels, stands prominently.
    The 30,000 lb Hydraulic Recovery Winch by PIERCE features a black frame with red accents and a refined planetary gear system, showcased against a plain black backdrop.
    Showcasing the intricate workings of a manual clutch, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum is set against a dark backdrop, featuring metal springs and components in its mechanical design.
    Close-up of a black mechanical device featuring yellow labels and red knobs on a black background, showcasing the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighting its intricate planetary gear system.
    A PIERCE 30,000 lb hydraulic recovery winch with a narrow drum, robust manual clutch, and advanced planetary gear system rests elegantly against a dark backdrop.
    A powerful 30,000 lb hydraulic recovery winch with a narrow drum and a manual clutch from PIERCE commands attention against a black background, emanating an aura of unbeatable strength.
    Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch, featuring a yellow label showing Disengaged and Engaged positions, emphasizing its sturdy planetary gear system for improved efficiency.
    Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum, featuring a black industrial hydraulic motor, connected hoses, metal fittings, and an integrated planetary gear system.
The **PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch** is showcased on a black background. This industrial winch features a central drum and labels, using a manual clutch along with a planetary gear system to provide precision and power for demanding applications.
Against the black background, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighted by its yellow labels, stands prominently.
The 30,000 lb Hydraulic Recovery Winch by PIERCE features a black frame with red accents and a refined planetary gear system, showcased against a plain black backdrop.
Showcasing the intricate workings of a manual clutch, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum is set against a dark backdrop, featuring metal springs and components in its mechanical design.
Close-up of a black mechanical device featuring yellow labels and red knobs on a black background, showcasing the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighting its intricate planetary gear system.
A PIERCE 30,000 lb hydraulic recovery winch with a narrow drum, robust manual clutch, and advanced planetary gear system rests elegantly against a dark backdrop.
A powerful 30,000 lb hydraulic recovery winch with a narrow drum and a manual clutch from PIERCE commands attention against a black background, emanating an aura of unbeatable strength.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch, featuring a yellow label showing Disengaged and Engaged positions, emphasizing its sturdy planetary gear system for improved efficiency.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum, featuring a black industrial hydraulic motor, connected hoses, metal fittings, and an integrated planetary gear system.
The **PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch** is showcased on a black background. This industrial winch features a central drum and labels, using a manual clutch along with a planetary gear system to provide precision and power for demanding applications.
Against the black background, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighted by its yellow labels, stands prominently.
The 30,000 lb Hydraulic Recovery Winch by PIERCE features a black frame with red accents and a refined planetary gear system, showcased against a plain black backdrop.
Showcasing the intricate workings of a manual clutch, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum is set against a dark backdrop, featuring metal springs and components in its mechanical design.
Close-up of a black mechanical device featuring yellow labels and red knobs on a black background, showcasing the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighting its intricate planetary gear system.
A PIERCE 30,000 lb hydraulic recovery winch with a narrow drum, robust manual clutch, and advanced planetary gear system rests elegantly against a dark backdrop.
A powerful 30,000 lb hydraulic recovery winch with a narrow drum and a manual clutch from PIERCE commands attention against a black background, emanating an aura of unbeatable strength.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch, featuring a yellow label showing Disengaged and Engaged positions, emphasizing its sturdy planetary gear system for improved efficiency.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum, featuring a black industrial hydraulic motor, connected hoses, metal fittings, and an integrated planetary gear system.
    The **PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch** is showcased on a black background. This industrial winch features a central drum and labels, using a manual clutch along with a planetary gear system to provide precision and power for demanding applications.
    Against the black background, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighted by its yellow labels, stands prominently.
    The 30,000 lb Hydraulic Recovery Winch by PIERCE features a black frame with red accents and a refined planetary gear system, showcased against a plain black backdrop.
    Showcasing the intricate workings of a manual clutch, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum is set against a dark backdrop, featuring metal springs and components in its mechanical design.
    Close-up of a black mechanical device featuring yellow labels and red knobs on a black background, showcasing the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighting its intricate planetary gear system.
    A PIERCE 30,000 lb hydraulic recovery winch with a narrow drum, robust manual clutch, and advanced planetary gear system rests elegantly against a dark backdrop.
    A powerful 30,000 lb hydraulic recovery winch with a narrow drum and a manual clutch from PIERCE commands attention against a black background, emanating an aura of unbeatable strength.
    Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch, featuring a yellow label showing Disengaged and Engaged positions, emphasizing its sturdy planetary gear system for improved efficiency.
    Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum, featuring a black industrial hydraulic motor, connected hoses, metal fittings, and an integrated planetary gear system.
The **PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch** is showcased on a black background. This industrial winch features a central drum and labels, using a manual clutch along with a planetary gear system to provide precision and power for demanding applications.
Against the black background, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighted by its yellow labels, stands prominently.
The 30,000 lb Hydraulic Recovery Winch by PIERCE features a black frame with red accents and a refined planetary gear system, showcased against a plain black backdrop.
Showcasing the intricate workings of a manual clutch, the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum is set against a dark backdrop, featuring metal springs and components in its mechanical design.
Close-up of a black mechanical device featuring yellow labels and red knobs on a black background, showcasing the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum and manual clutch, highlighting its intricate planetary gear system.
A PIERCE 30,000 lb hydraulic recovery winch with a narrow drum, robust manual clutch, and advanced planetary gear system rests elegantly against a dark backdrop.
A powerful 30,000 lb hydraulic recovery winch with a narrow drum and a manual clutch from PIERCE commands attention against a black background, emanating an aura of unbeatable strength.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a Narrow Drum and Manual Clutch, featuring a yellow label showing Disengaged and Engaged positions, emphasizing its sturdy planetary gear system for improved efficiency.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with a narrow drum, featuring a black industrial hydraulic motor, connected hoses, metal fittings, and an integrated planetary gear system.

Product Information

Characteristics

Expertly designed for heavy-duty recovery situations, this 30,000 lb hydraulic winch boasts a narrow drum and manual clutch for precise control. With a powerful hydraulic motor and a 2-stage planetary gear system, this winch can handle loads with ease, making it an essential tool for any recovery operation.

What is Included

1 x (PSHDH30000NDM) 30,000 lb Hydraulic Recovery Winch | Narrow Drum | Manual Clutch
1 x Roller Fairlead PSHDH Series
1 x Cable Tensioner
1 x Instructions

Specifications

Specification Details
MAX CAPACITY (LBS.) 30000
POWER SOURCE Hydraulic
MAX LINE SPEED 16 fpm @ 15.9 gpm
MAX OIL FLOW (GPM) 15.9
OPERATIONAL PRESSURE (PSI) 2540
HYDRAULIC MOTOR 9.5 in³ / rev
GEAR TYPE 2-Stage Planetary Gear
GEAR RATIO 41:1
CONSTRUCTION Cast Housings with Steel Drum
DRUM ROTATION Counter-Clockwise (Underwound)
RECOMMENDED WIRE ROPE ⅝" x 141' (1,960 N/mm2grade a minimum breaking strength of 179 KN required)
CLUTCH TYPE Output Shaft Disengaged
BRAKE TYPE Multidisc Brake
MOUNTING BOLT PATTERN 7.5” x 12” ; 10.5” x 12”

PSHDH30000 Line Pull and Rope Layer

Data is calculated based on a consistently supplied 15.9 gpm flow with ⅝" winch cable. Environmental and other conditions may affect results. Always use the proper safety gear and follow all safety precautions when winching.
Layer of Wire Rope Pull by Layer (lbs.) Total Rope on the Drum (ft.) Line Speed (@ 15.9 gpm) fpm
1st 30,000 36 16
2nd 25,216 82 19
3rd 21,745 131 23
4th 19,115 190 26
5th 17,052 246 29

Warranty

1 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
Characteristics

Expertly designed for heavy-duty recovery situations, this 30,000 lb hydraulic winch boasts a narrow drum and manual clutch for precise control. With a powerful hydraulic motor and a 2-stage planetary gear system, this winch can handle loads with ease, making it an essential tool for any recovery operation.
