Introducing the Lodar LTD 2 Function 110V Standard Wireless Control System, part of the 96 Series. This relay receiver includes a remote control and features a "danger" labeled circuit board housed within a transparent cover.

Product Information

The 2 Function 110V Wireless Standard Transmitter System is a professional-grade system that offers a wide operating distance of 150 ft (45 m). With an IP rating of 66 for the transmitter and 67 for the receiver, it can withstand harsh weather conditions. It includes a Mini Transmitter, AC Relay Receiver, and lanyard for convenience. With a maximum output of 10 amps, it's suitable for a variety of applications. This must be installed by a certified electrician.

What is Included

1 x (9600RX-8) 2 Function 110V Relay Receiver | 96 Series | No Master Output ↗

1 x (92102TX-8) 2 Function Lodar Standard Transmitter | 9000 Series ↗

1 x Instructions

1 x Lanyard

Specifications

CHANNEL: Wide Band, Fixed
FREQUENCY: 418 MHz
FUNCTIONS: 2
MASTER OUTPUT: No
MAX AMPS: 10
OPERATING DISTANCE: 150 ft. (45 m.)
OPERATING TEMPERATURE RANGE: 13ºF - 104ºF (-10ºC to 40ªC)
OPERATING VOLTAGE: 110 Volts AC
RECEIVER IP RATING: IP 67
SERIES: 9000 Series
TRANSMITTER: Standard
TRANSMITTER BATTERIES: 9V x 1
TRANSMITTER IP RATING: IP 66
TYPE: Full System
WIRING INCLUDED: None

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.

Resources

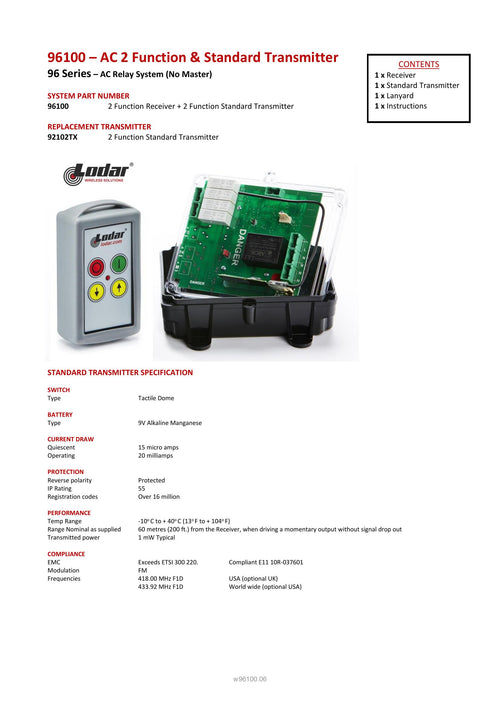

Spec Sheet

96100 Spec Sheet

2 Function 110V Standard Wireless Control System | 96 Series | Relay Receiver | No Master Output

96100-8

Regular price: $490.00
Sale price: $490.00
Regular price: ~~$0.00~~

Shipping calculated at checkout.

Product variants:

Lodar 2 Function 110V System Options:

The 110V Lodar 2 Function Systems configurations are determined by the controller handheld type and whether or not a master output is required.

Restocking Soon

Quantity:

Electrician Required

A certified electrician is required to install this product. Do not attempt to install without the proper certifications and training. Severe injury or death can result when working with 110V AC Power.
