Product Information
Characteristics
Pendant Control Features
This pendant control system works with 6 function 12/24V solenoid operated equipment. This remote offers master function required for many hydraulic applications that utilize a motor start feature.
The PIERCE Universal momentary pendant control is water resistant and has the following features:
- Momentary switching
- Interlocking Buttons
- Made of polypropylene
- Double pole, double throw
- Eliminates Need for Diodes
- Master Output
Specifications
- Use 16 -18 gauge wire for all connections
- 12 or 24V
- 15 amp max
Warranty
- 1 Year Warranty
Momentary Pendant Control Customization
- Customization is available upon request. (Call For Pricing) 800-658-6301
More Information
Specifications
Specification | Details |
---|---|
FUNCTIONS | 6 |
OPERATING VOLTAGE | 12/24 Volts DC |
MASTER OUTPUT | Yes |
MAX AMPS | 15 |
RECOMMENDED WIRE | 16-18 gauge |
WIRING INCLUDED | 20 ft. 8 core cable with ring terminals |
SWITCH TYPE | Momentary - Push Button - Double Pole / Double Throw |
Resources
Wiring Diagram
CP079 - Wiring Diagram
Warranty
Characteristics
Pendant Control Features
This pendant control system works with 6 function 12/24V solenoid operated equipment. This remote offers master function required for many hydraulic applications that utilize a motor start feature.
The PIERCE Universal momentary pendant control is water resistant and has the following features:
- Momentary switching
- Interlocking Buttons
- Made of polypropylene
- Double pole, double throw
- Eliminates Need for Diodes
- Master Output
Specifications
- Use 16 -18 gauge wire for all connections
- 12 or 24V
- 15 amp max
Warranty
- 1 Year Warranty
Momentary Pendant Control Customization
- Customization is available upon request. (Call For Pricing) 800-658-6301
More Information

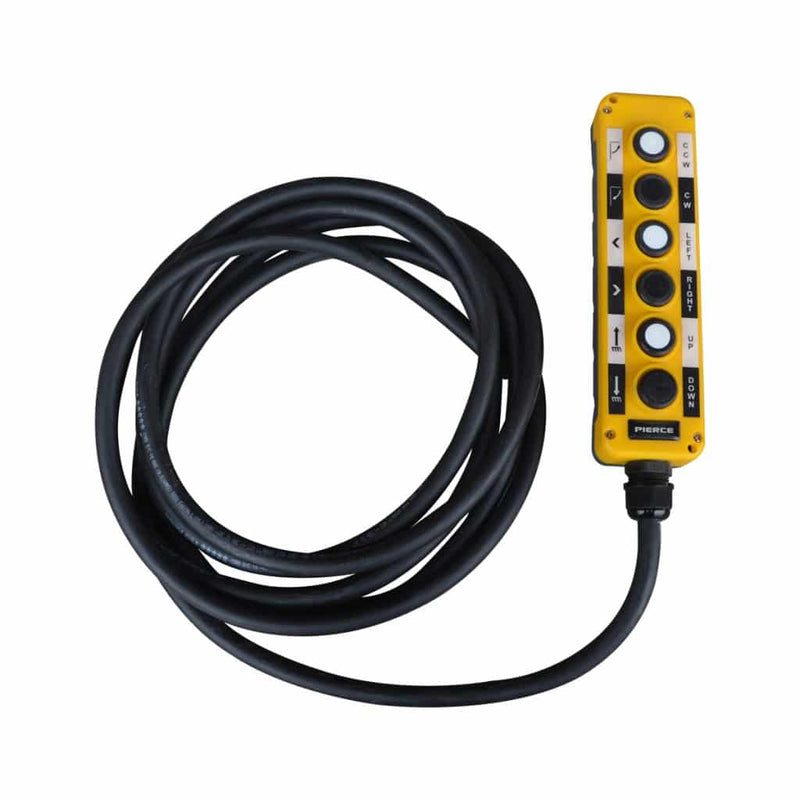

PIERCE Universal Momentary Pendant Control - 6 Button - 20ft Cord
CP079K
- Regular price
- $94.99
- Sale price
- $94.99
- Regular price
-
The PIERCE Universal Momentary Controls provide an excellent way to control almost any 12-volt application. Each function can trigger the master output upon activation making these a favorite for anyone operating dump trailers, ag equipment, waste relocation, and more. Manufacturers and hobbyists alike have found this series to be reliable, affordable, and easy to fit into their applications.
2 Button - Pendant Only
4 Button - Pendant Only
6 Button - Pendant Only
2 Button - 20 ft Wire
4 Button - 20 ft Wire
6 Button - 20 ft Wire
In Stock
