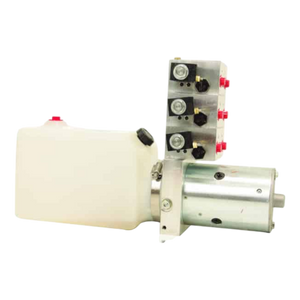

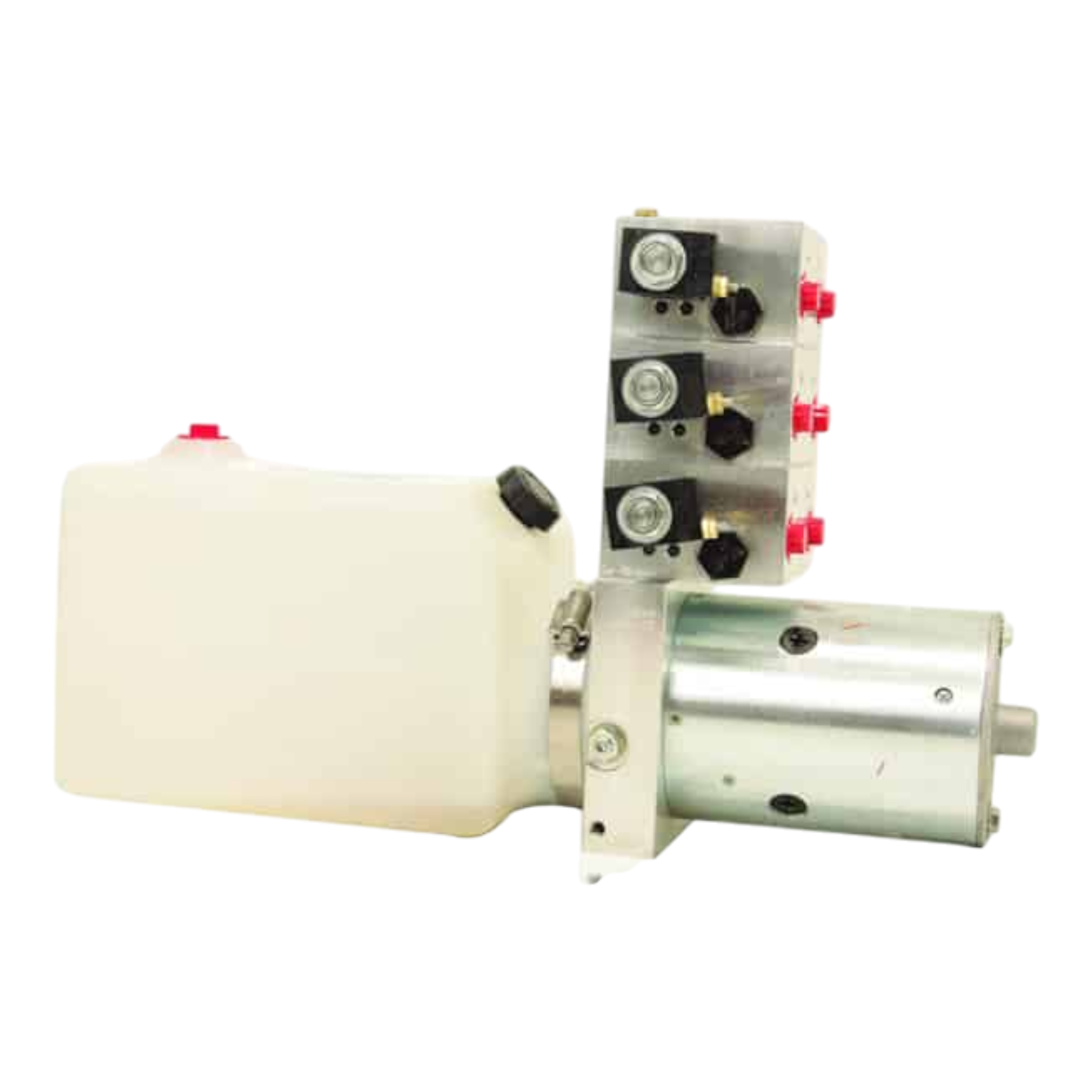

This hydraulic power unit, featuring a white reservoir and metallic motor with multiple valve connections, includes SAE o-ring ports for reliable sealing and is compatible with the Bucher 6 Way Valve Pump for enhanced performance.
    This hydraulic power unit, featuring a white reservoir and metallic motor with multiple valve connections, includes SAE o-ring ports for reliable sealing and is compatible with the Bucher 6 Way Valve Pump for enhanced performance.
This hydraulic power unit, featuring a white reservoir and metallic motor with multiple valve connections, includes SAE o-ring ports for reliable sealing and is compatible with the Bucher 6 Way Valve Pump for enhanced performance.
This hydraulic power unit, featuring a white reservoir and metallic motor with multiple valve connections, includes SAE o-ring ports for reliable sealing and is compatible with the Bucher 6 Way Valve Pump for enhanced performance.
    This hydraulic power unit, featuring a white reservoir and metallic motor with multiple valve connections, includes SAE o-ring ports for reliable sealing and is compatible with the Bucher 6 Way Valve Pump for enhanced performance.
This hydraulic power unit, featuring a white reservoir and metallic motor with multiple valve connections, includes SAE o-ring ports for reliable sealing and is compatible with the Bucher 6 Way Valve Pump for enhanced performance.

Product Information

Characteristics
The Bucher 6 Way Valve Pump contains three individual double acting sections: Dual power up/hold/power down circuit, 9/16th's SAE o-ring ports, adjustable relief at 2,500 psi, and low-pressure relief at 600 psi. With a flow rate of 2.00 gpm, this pump is perfect for wrecker applications requiring six functions (up/down, in/out, and open/close). The pump is compatible with the Magnum III retractable wheel lift.  What sets Bucher apart? Each unit is made in the USA and undergoes 100% computer-operated testing on pump testing stands. Additionally, the pump parts are precisely machined to maximize efficiency. As a customer-oriented company, Bucher provides high quality customer service and have a less than 1% rate of warranty returns.

Specifications

Specification Details
OPERATING VOLTAGE 12 Volts DC
MAX OIL FLOW (GPM) 1.5
OPERATIONAL PRESSURE (PSI) 2500
RESERVOIR CAPACITY 2 Gallons
RESERVOIR MATERIAL High Density Polyethylene
HOSE CONNECTIONS #6 SAE
RECOMMENDED FLUID ATF (Automatic Transmission Fluid)
PUMP DIRECTIONS 6-Way (Power All)
OPERATING TEMPERATURE RANGE -20ºF to 130ºF (-30ºC to 55ºC)

Resources

Spec Sheet
PM-3530-3ST Spec Sheet
Wiring Diagram
PM-3530-3ST
Guide
Pump Troubleshooting Guide
Characteristics
The Bucher 6 Way Valve Pump contains three individual double acting sections: Dual power up/hold/power down circuit, 9/16th's SAE o-ring ports, adjustable relief at 2,500 psi, and low-pressure relief at 600 psi. With a flow rate of 2.00 gpm, this pump is perfect for wrecker applications requiring six functions (up/down, in/out, and open/close). The pump is compatible with the Magnum III retractable wheel lift.  What sets Bucher apart? Each unit is made in the USA and undergoes 100% computer-operated testing on pump testing stands. Additionally, the pump parts are precisely machined to maximize efficiency. As a customer-oriented company, Bucher provides high quality customer service and have a less than 1% rate of warranty returns.
