Product Information
Characteristics
This versatile pendant control system is compatible with 12/24V solenoid operated equipment and features 2 buttons for maximum control. It also includes a master function, making it an essential tool for hydraulic applications that require motor start capabilities. With its durable construction and water-resistant design, the PIERCE Universal momentary pendant control is ideal for use with a variety of commercial equipment such as Hydraulic Bale Spears and Dump Kits. Its features include momentary switching, interlocking buttons, and a double pole, double throw design, all housed in a polypropylene casing. The included 20 ft. 4 core cable, equipped with ring terminals, can handle a maximum of 15 amps.
Specifications
Specification | Details |
---|---|
FUNCTIONS | 2 |
OPERATING VOLTAGE | 12/24 Volts DC |
MASTER OUTPUT | Yes |
MAX AMPS | 15 |
RECOMMENDED WIRE | 16-18 gauge |

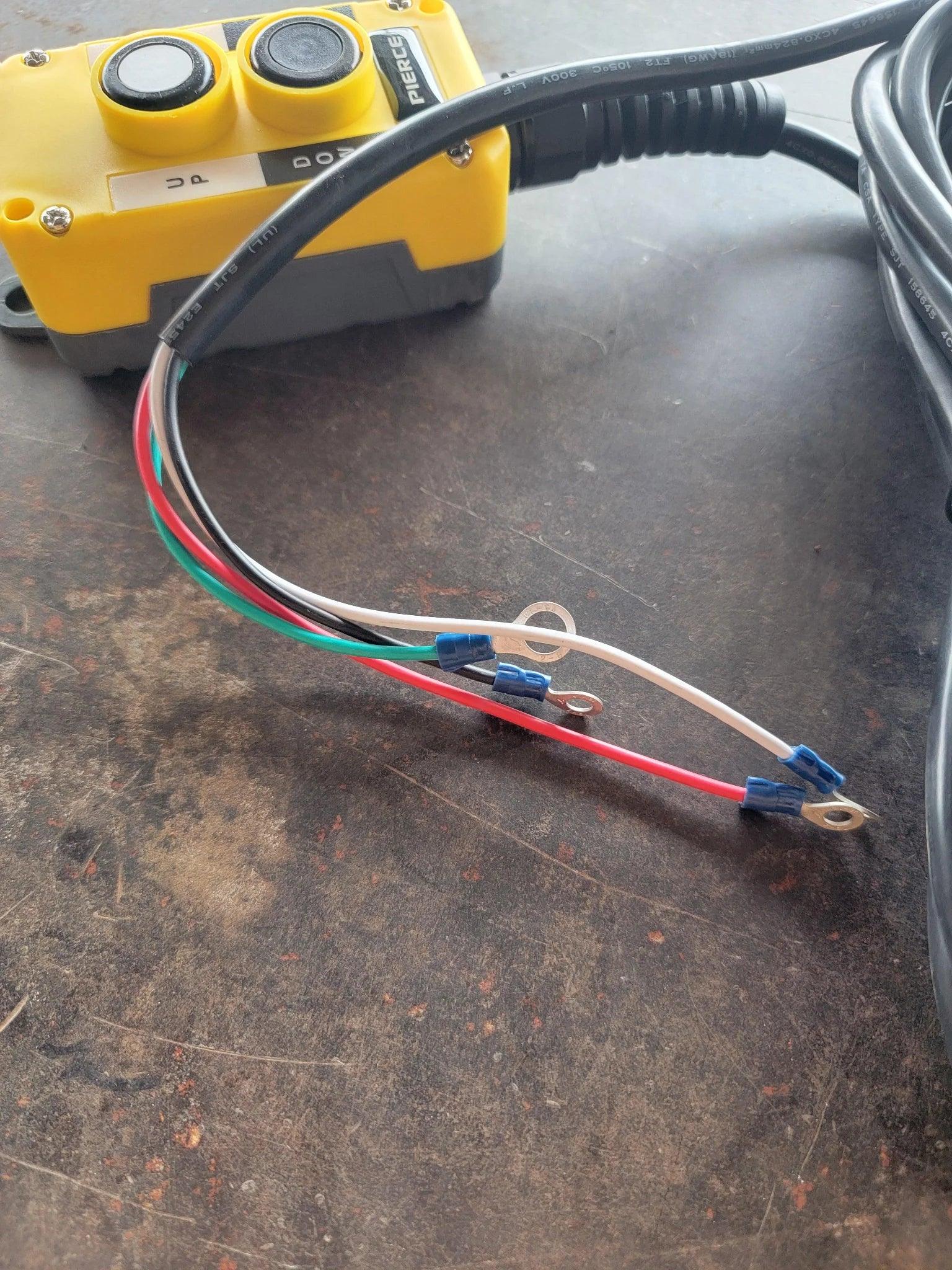

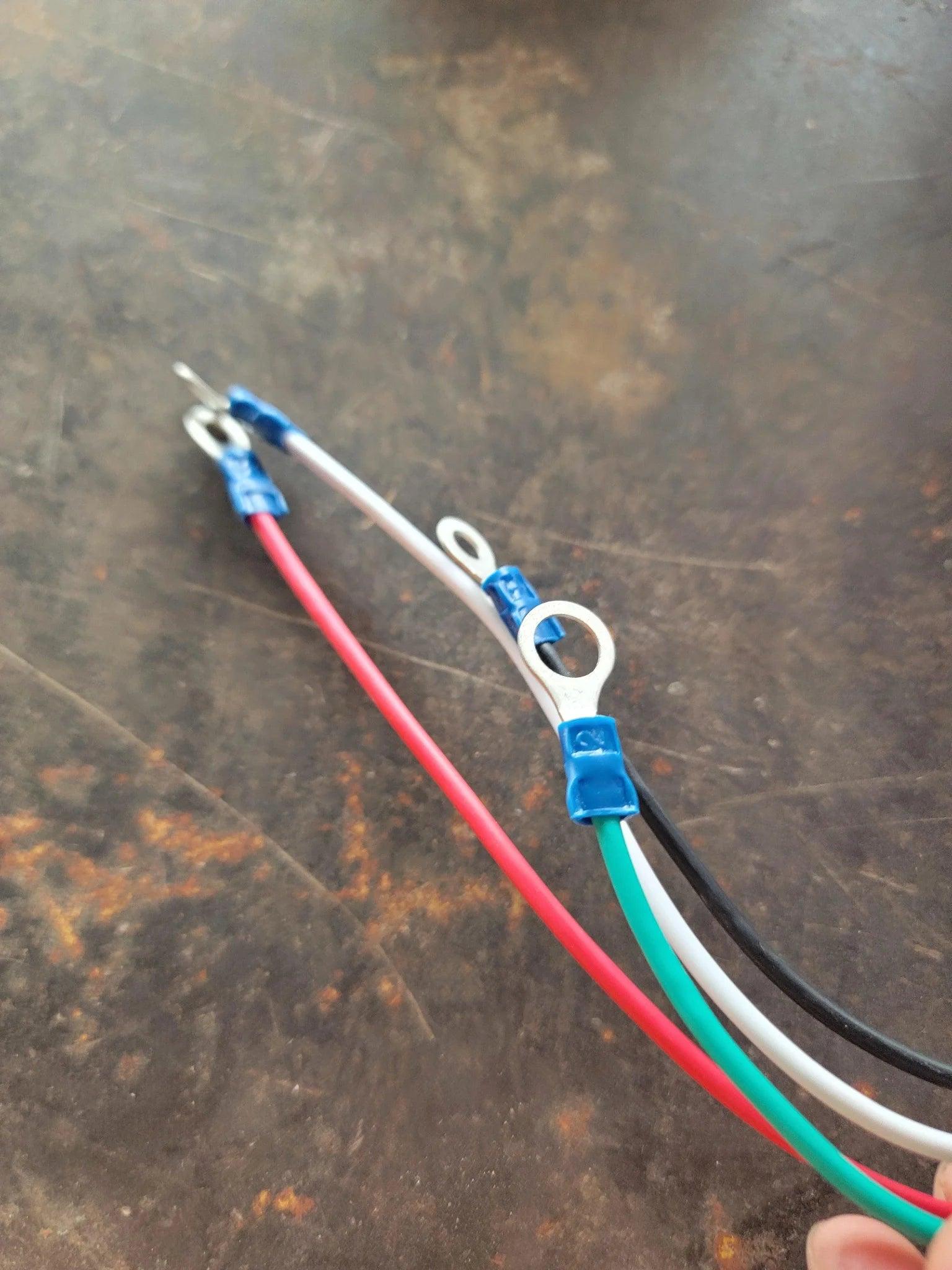

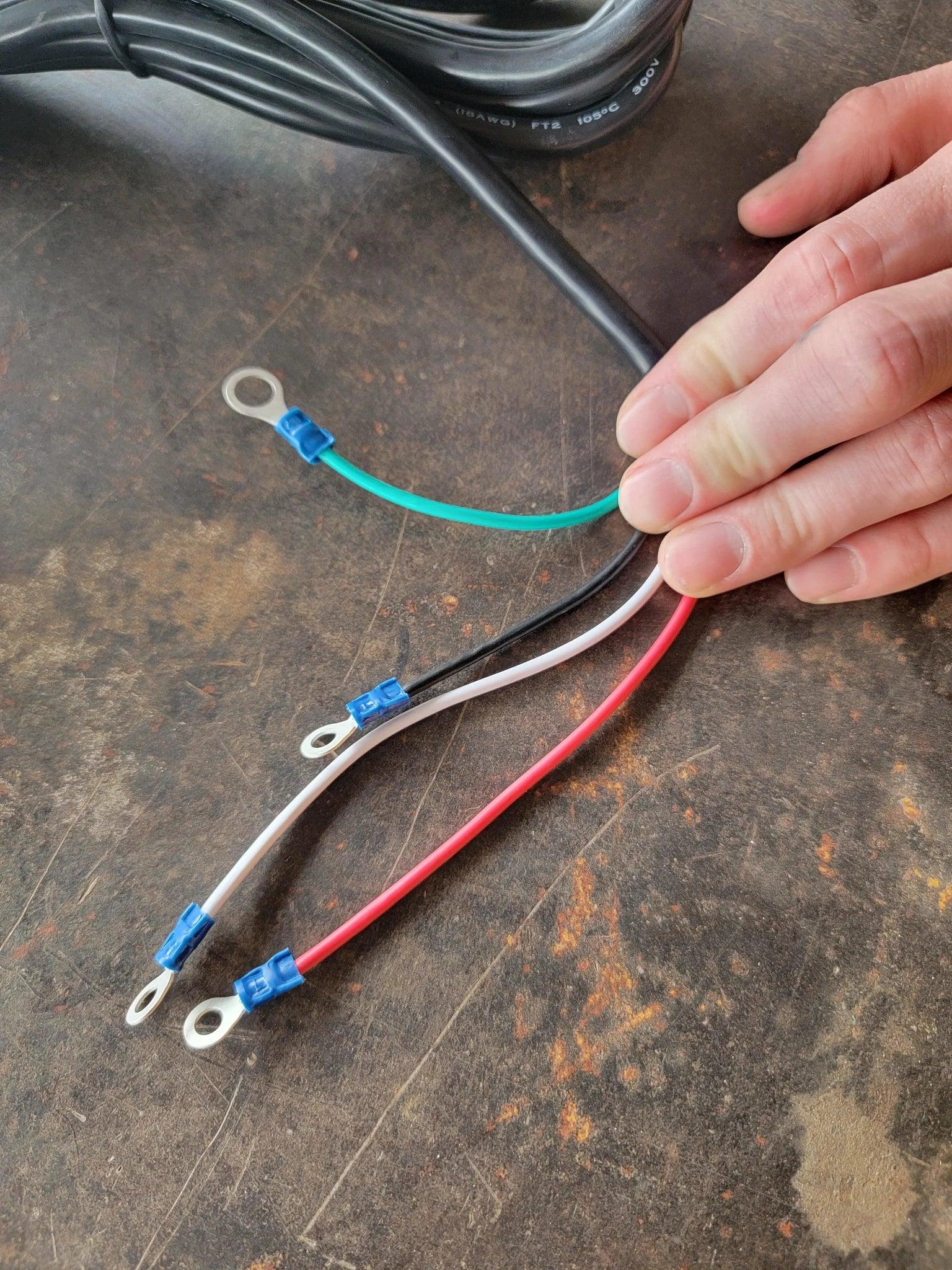

WIRING INCLUDED | 20 ft. 4 core cable with ring terminals |
SWITCH TYPE | Momentary - Push Button - Double Pole / Double Throw |
Resources
Wiring Diagram
CP077K - 2 Function Corded Remote Wiring
Characteristics
This versatile pendant control system is compatible with 12/24V solenoid operated equipment and features 2 buttons for maximum control. It also includes a master function, making it an essential tool for hydraulic applications that require motor start capabilities. With its durable construction and water-resistant design, the PIERCE Universal momentary pendant control is ideal for use with a variety of commercial equipment such as Hydraulic Bale Spears and Dump Kits. Its features include momentary switching, interlocking buttons, and a double pole, double throw design, all housed in a polypropylene casing. The included 20 ft. 4 core cable, equipped with ring terminals, can handle a maximum of 15 amps.

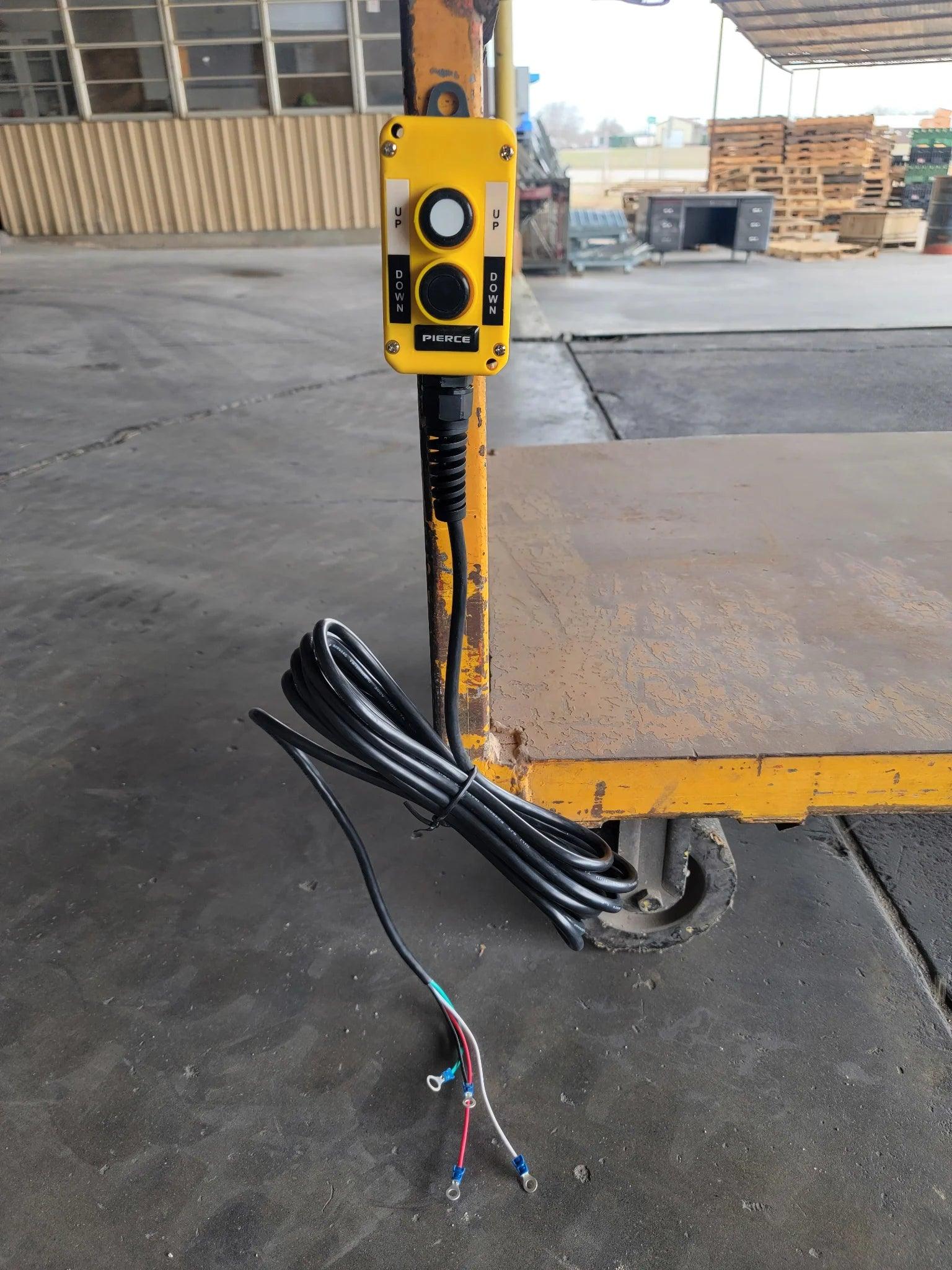

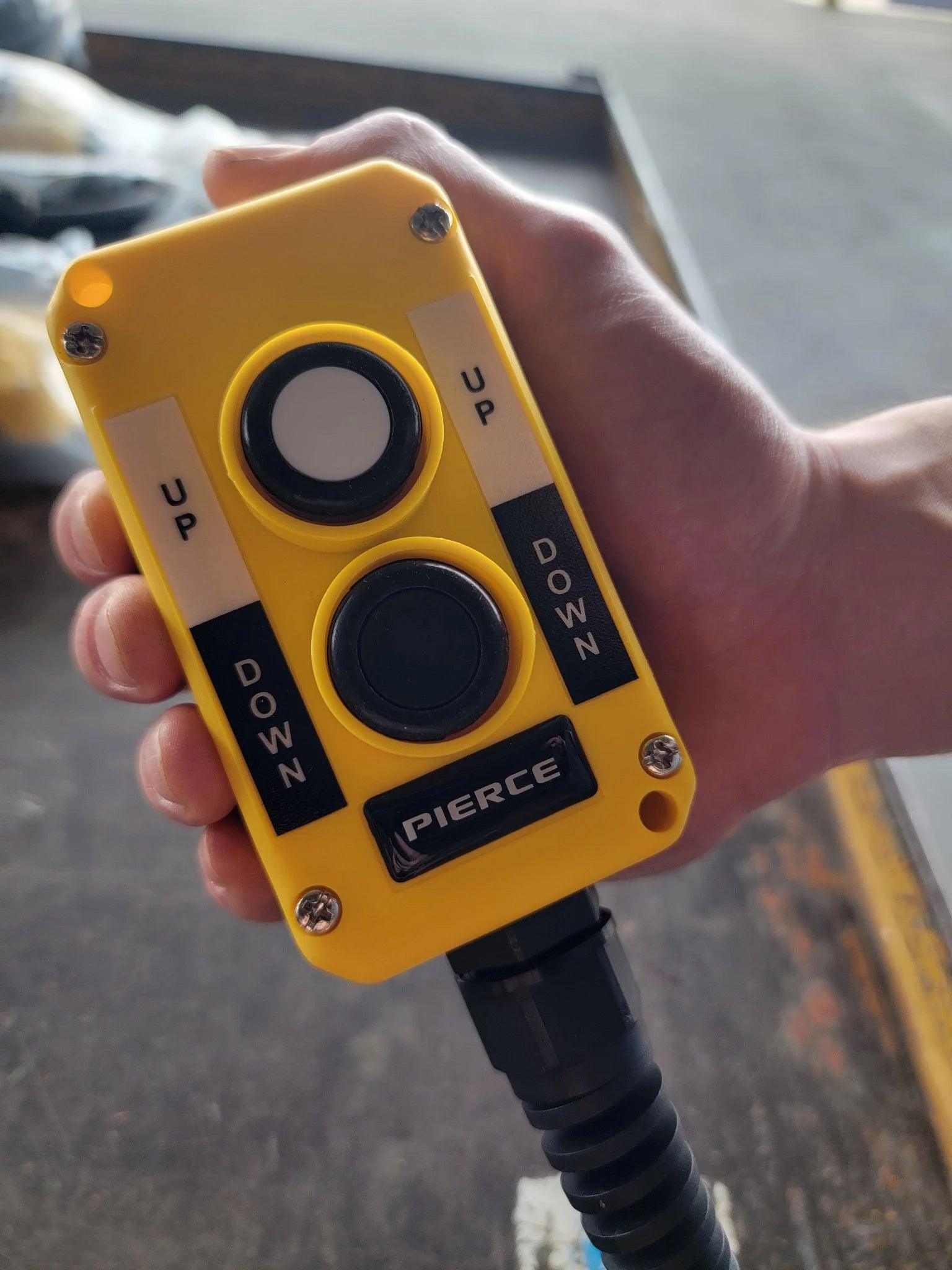

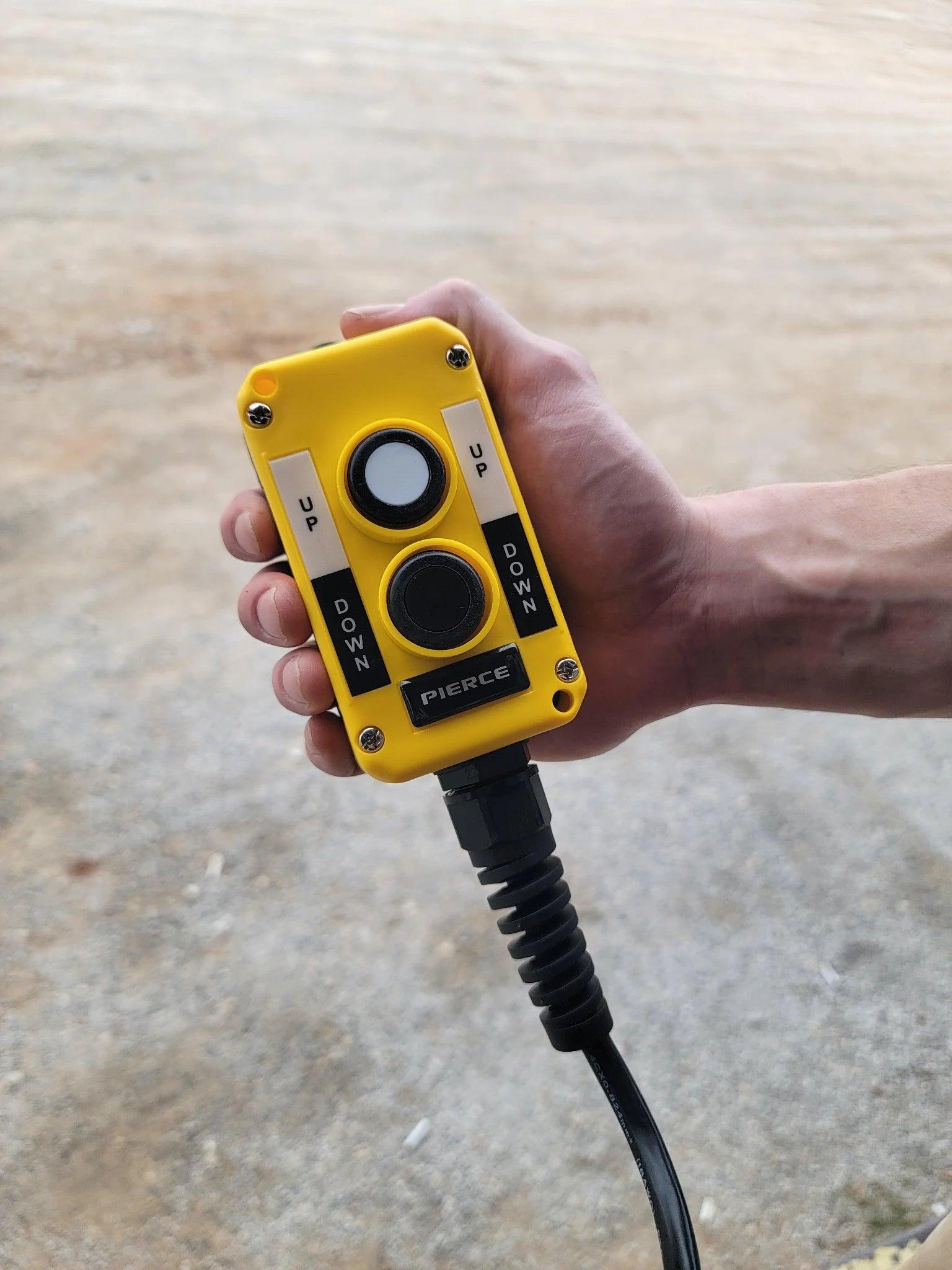

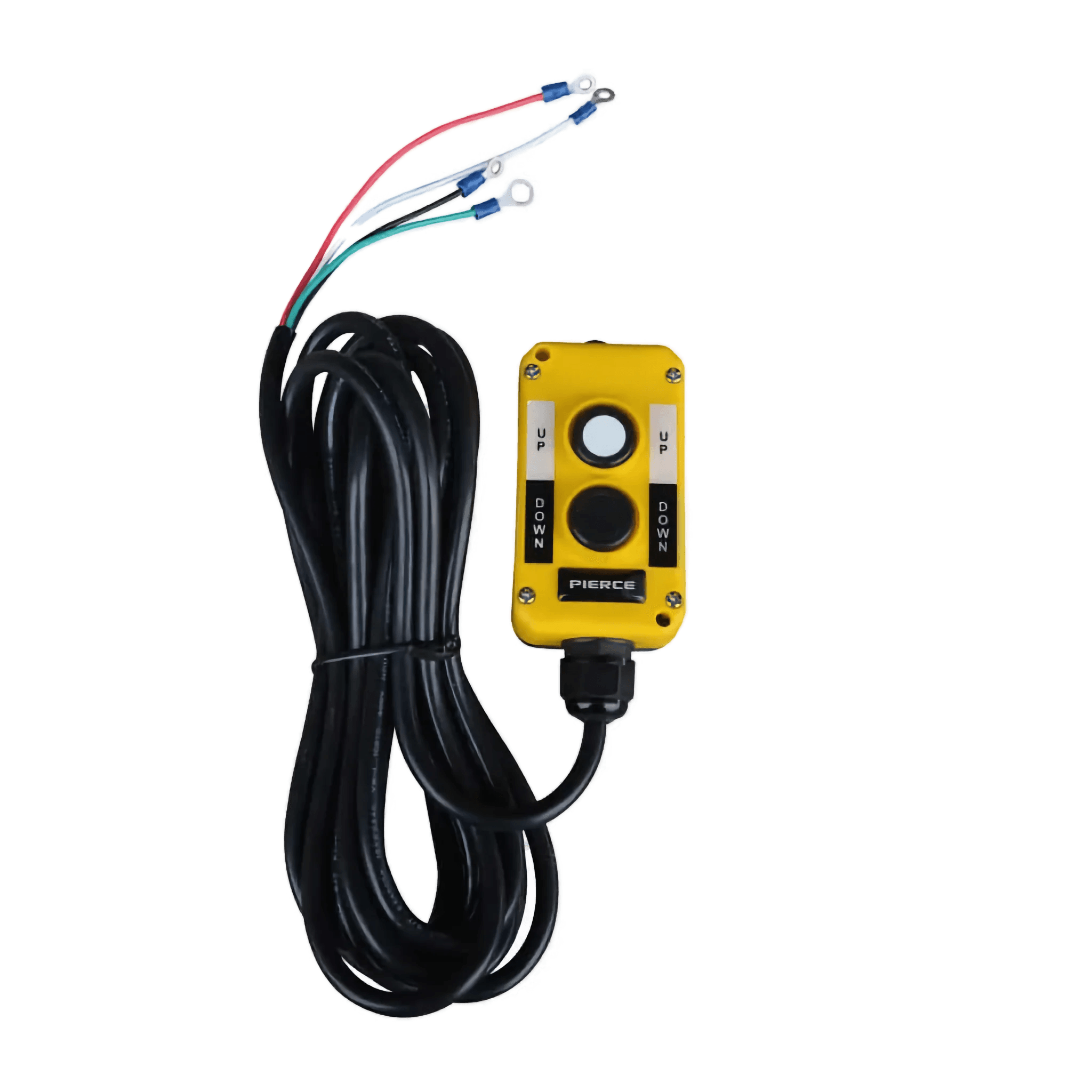

PIERCE Universal Momentary Pendant Control - 2 Button - 20ft Cord
CP077K
- Regular price
- $60.99
- Sale price
- $60.99
- Regular price
-
Compatible Products
*Check compatibility before purchasing.
The PIERCE Universal Momentary Controls provide an excellent way to control almost any 12-volt application. Each function can trigger the master output upon activation making these a favorite for anyone operating dump trailers, ag equipment, waste relocation, and more. Manufacturers and hobbyists alike have found this series to be reliable, affordable, and easy to fit into their applications.
2 Button - Pendant Only
4 Button - Pendant Only
6 Button - Pendant Only
2 Button - 20 ft Wire
4 Button - 20 ft Wire
6 Button - 20 ft Wire
In Stock
