Power Up, Gravity Down Pump Overview
Bucher power up/gravity down pump with 6 qt poly tank. Port size is 3/8" NPT. Reservoir is 6.7" x 6.7" x 13". 1.25 gpm at 1,750 psi. Horizontal mount. Direct replacement for Light, Medium, and Heavy Duty dump kits.
Why Bucher Pumps?
- First, units are manufactured in the USA.
- Second, 100% unit and pump testing on a computer-operated test stand ISO9001 certified.
- Pump parts are machined to very tight tolerances to increase efficiency.
- Lastly, Customer-oriented and high-quality customer service, as a result, less than 1% warranty returns
Specifications
| Specification | Details |
|---|---|
| OPERATING VOLTAGE | 12 Volts DC |
| MAX OIL FLOW (GPM) | 1.5 |
| OPERATIONAL PRESSURE (PSI) | 2500 |
| RESERVOIR CAPACITY | 6 Quarts |
| RESERVOIR MATERIAL | High Density Polyethylene |
| HOSE CONNECTIONS | ⅜" Pipe |
| RECOMMENDED FLUID | ATF (Automatic Transmission Fluid) |
| PUMP DIRECTIONS | 2-Way (Power Up / Gravity Down) |
| OPERATING TEMPERATURE RANGE | -20ºF to 130ºF (-30ºC to 55ºC) |
Resources
Spec Sheet
PM-319-6P Spec Sheet
Guide
Pump Troubleshooting Guide
Wiring Diagram

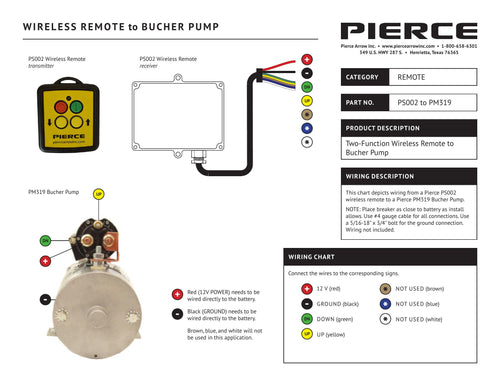

PS002 - PM-319 - Wiring Diagram
Wiring Diagram

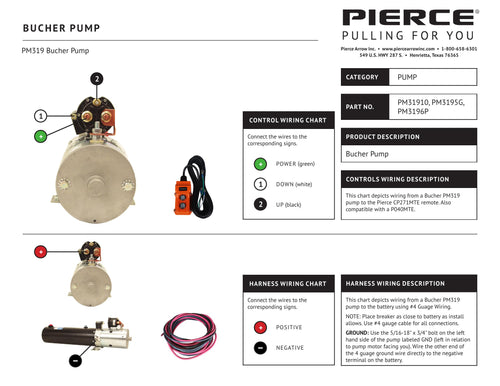

PM-319 - Bucher Pump Wiring Diagram
Wiring Diagram

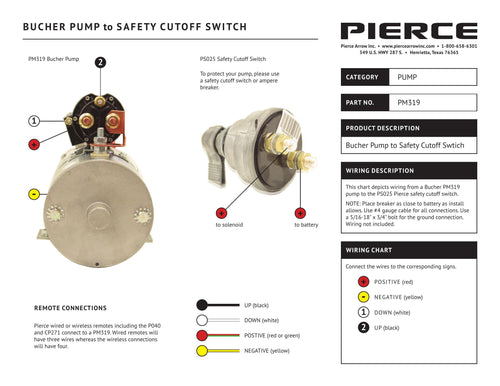

PM319 - PS025 - Bucher Pump to Safety Cutoff Switch Wiring Diagram
Wiring Diagram

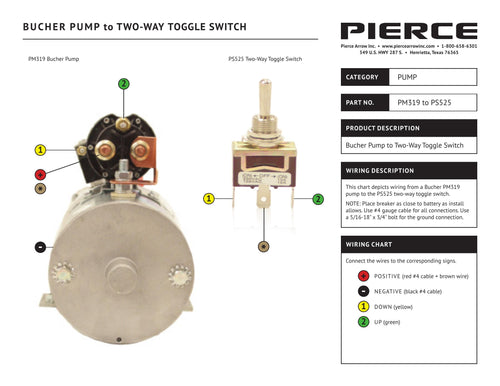

PM319 - PS525 - Bucher Pump to Toggle Switch Wiring Diagram
Wiring Diagram

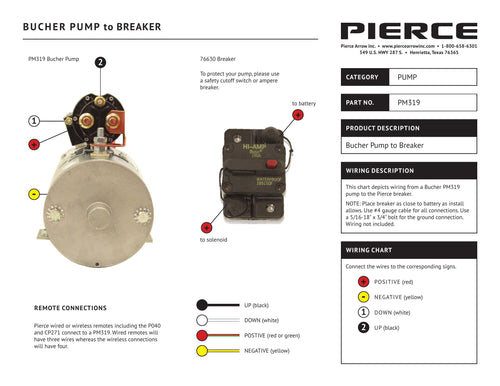

PM319 - 76630 - Bucher Pump to Breaker Wiring Diagram
Characteristics
Power Up, Gravity Down Pump Overview
Bucher power up/gravity down pump with 6 qt poly tank. Port size is 3/8" NPT. Reservoir is 6.7" x 6.7" x 13". 1.25 gpm at 1,750 psi. Horizontal mount. Direct replacement for Light, Medium, and Heavy Duty dump kits.
Why Bucher Pumps?
- First, units are manufactured in the USA.
- Second, 100% unit and pump testing on a computer-operated test stand ISO9001 certified.
- Pump parts are machined to very tight tolerances to increase efficiency.
- Lastly, Customer-oriented and high-quality customer service, as a result, less than 1% warranty returns
Bucher Power Up, Gravity Down Pump
PM-319-6P
- Regular price
- $505.00
- Sale price
- $505.00
- Regular price
-
Shipping calculated at checkout.
In Stock
