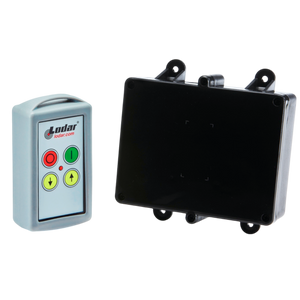

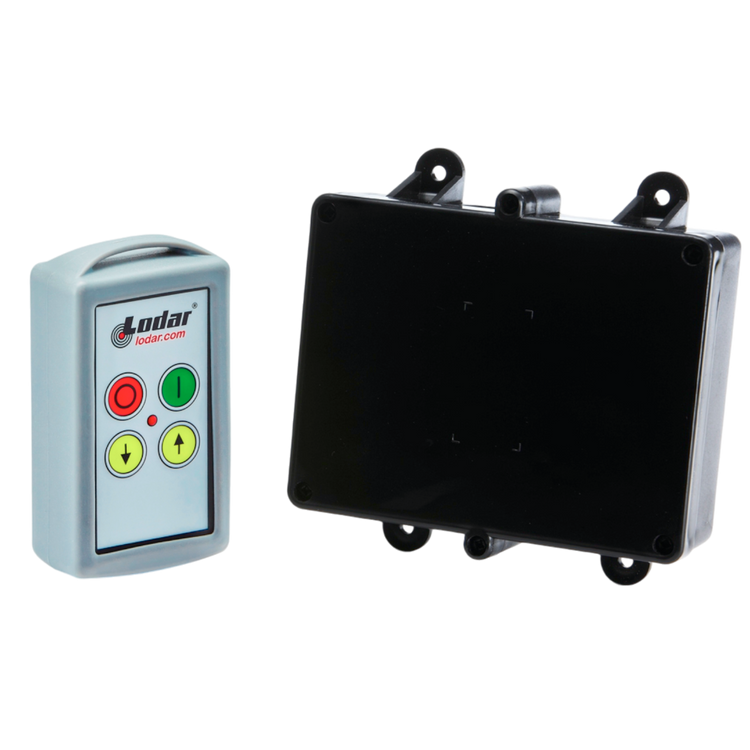

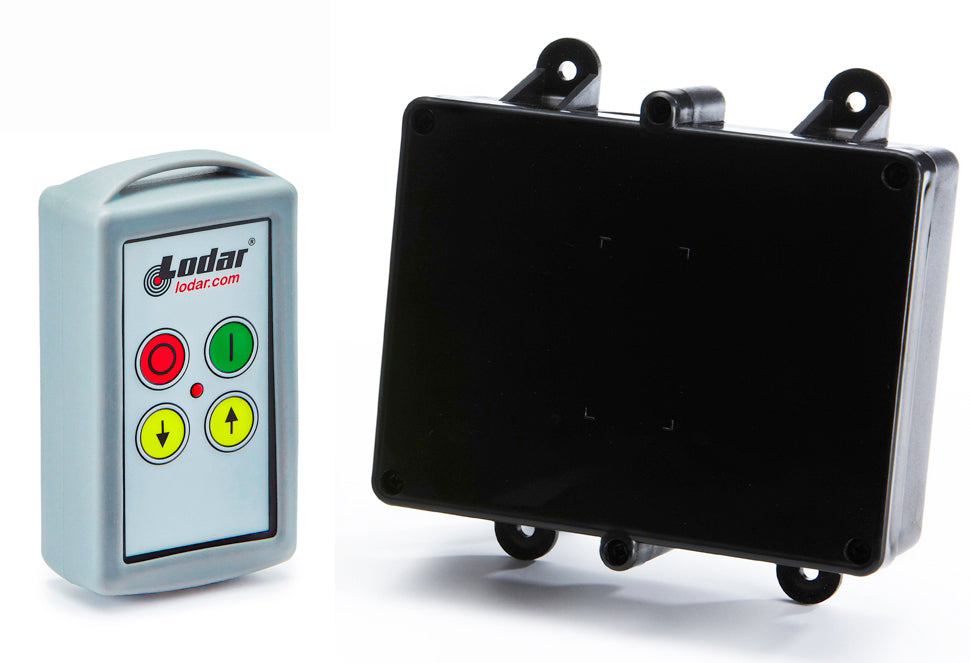

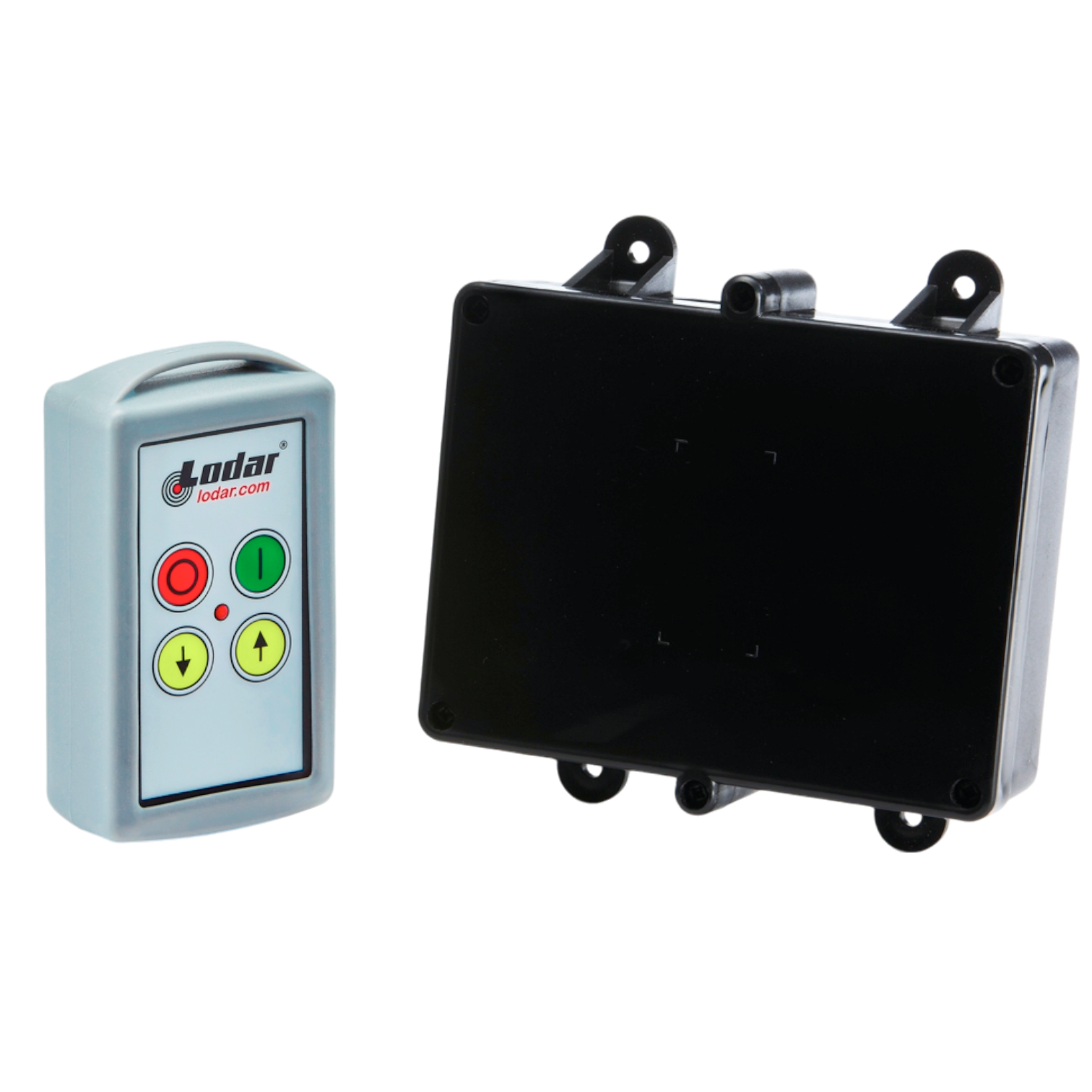

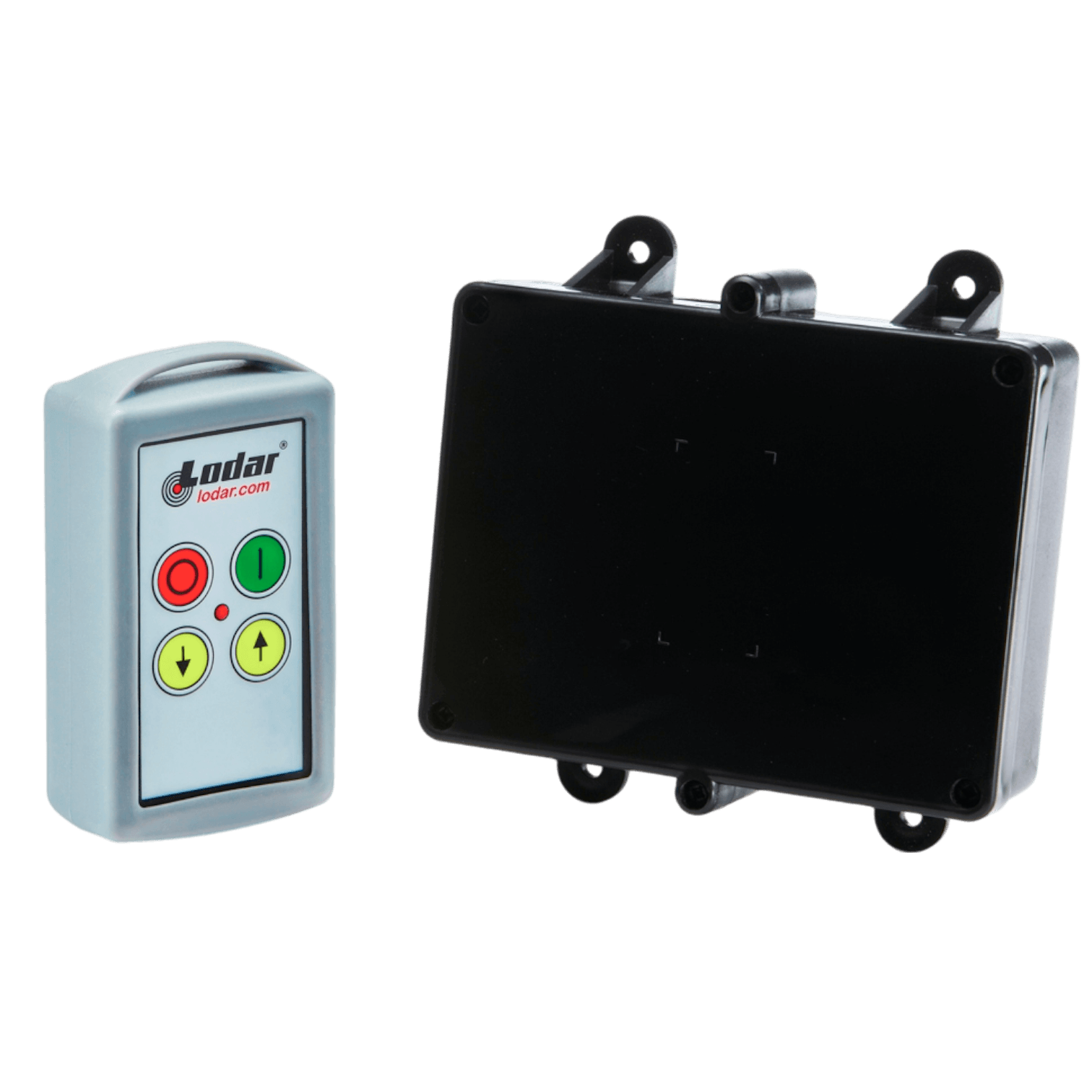

Lodar LTD's 2 Function Standard Wireless Control System from the 90 Series features a black relay receiver and remote control with green, red, and yellow buttons, offering seamless integration into wireless operations.

2 Function Lodar Standard Wireless System | 9 Series Relay | No Master

$508.00
Skip to product information
Lodar LTD's 2 Function Standard Wireless Control System from the 90 Series features a black relay receiver and remote control with green, red, and yellow buttons, offering seamless integration into wireless operations.
1/2
  • Lodar LTD's 2 Function Standard Wireless Control System from the 90 Series features a black relay receiver and remote control with green, red, and yellow buttons, offering seamless integration into wireless operations.
  • Pairing the 92 Series Lodar Remote & Transmitter
  • Lodar LTD's 2 Function Standard Wireless Control System from the 90 Series features a black relay receiver and remote control with green, red, and yellow buttons, offering seamless integration into wireless operations.
  • Pairing the 92 Series Lodar Remote & Transmitter
2 Function Lodar Standard Wireless System | 9 Series Relay | No Master

2 Function Lodar Standard Wireless System | 9 Series Relay | No Master

90100-8
$508.00
In Stock

Complete plug-and-play wireless control system - includes the Standard handheld transmitter and the Relay receiver, coded together at the factory and ready to wire to your equipment. Operates 2 functions on the Lodar 9 Series.

The 2 Function Lodar Standard Wireless System (90100-8) gives you 2-function wireless control with a 150 ft (45 m) range on the 433 MHz band. Dc mechanical-relay output switching, 5 A per output, 12/24V DC. This version has no master output. Choose a master-output model if you need an extra output that fires alongside every function - for example, an HPU that must run during a lift.

How do I know this system fits my equipment?

Match the function count to the number of outputs you need to operate - 2 here - and confirm your power supply: this system runs on 12/24V DC. The relay receiver switches up to 5 A per output. If your functions draw more than 5 A, choose the FET version, which handles 10 A. The transmitter and receiver ship coded to each other, so the system works out of the box.

  • 2 functions of wireless control
  • Standard transmitter - IP 54 rated
  • Relay receiver - DC mechanical relays, 5 A per output, 12/24V DC, IP 65 rated
  • 12/24V DC operating voltage
  • 150 ft (45 m) operating range, 433 MHz band
  • No master output
  • Lodar SKU 90100-8

Lodar 9 Series parts carry a trailing match code. This system ships as the -8 (the most common). If you are adding to or replacing parts in an existing Lodar system coded anything other than -8, contact us so the units pair correctly.

Want a different form of the same 2-function Lodar system? Compare the 2 Function Lodar Mini Wireless System or 2 Function Lodar Stainless IP Wireless System. Replacement handsets and receivers are sold separately.
Lodar 5 Year Pro-rated Warranty icon

Lodar 5 Year Pro-rated Warranty

Warranty is pro-rated and guarantees that product will be free of defect and faults from the manufacturer. See Lodar terms and conditions for more details.

What's Included
Specifications
Transmitter
Standard
Functions
2
Operating Voltage
12/24 Volts DC
Transmitter IP Rating
IP 54
Receiver IP Rating
IP 65
Operating Distance
150 ft. (45 m.)
Master Output
Yes
Max Amps
5
Series
9000 Series
Transmitter Batteries
AAA x 2
Wiring Included
9 ft. (3m) wiring loom through gland
Warranty
Lodar 5 Year Pro-rated Warranty
Replacement Parts (2)
2 Function Lodar Standard Transmitter | 9 Series
2 Function Lodar Standard Transmitter | 9 SeriesSKU: 92102TX-8
$247.00
2 Function Relay Receiver | No Master | 9 Series
2 Function Relay Receiver | No Master | 9 SeriesSKU: 9000RX
$255.00
Videos (1)
Pairing the 92 Series Lodar Remote & Transmitter video

Pairing the 92 Series Lodar Remote & Transmitter

Warranty
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
