Product Information

Characteristics

Effortlessly control your equipment with Lodar's 4-function wireless system. With a 200 foot range and a 12-24V operating voltage, this mini system includes a master function and 5 amp outputs. Compatible with any solenoid operated equipment, it's the perfect solution for efficient and convenient control.

Specifications

Specification Details
TRANSMITTER Mini
FUNCTIONS 4
OPERATING VOLTAGE 12/24 Volts DC
TRANSMITTER IP RATING IP 67
RECEIVER IP RATING IP 65
OPERATING DISTANCE 200 ft. (61 m.)
MASTER OUTPUT Yes
MAX AMPS 5
SERIES 9000 Series
SWITCH TYPE Silicone Rubber Keypad with Carbon Pill

Resources

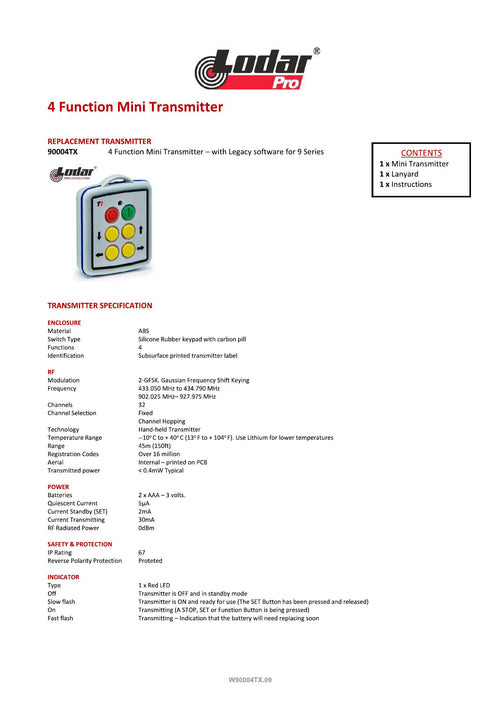

Spec Sheet
90004TX - 4 Function Mini Transmitter

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
Characteristics

Effortlessly control your equipment with Lodar's 4-function wireless system. With a 200 foot range and a 12-24V operating voltage, this mini system includes a master function and 5 amp outputs. Compatible with any solenoid operated equipment, it's the perfect solution for efficient and convenient control.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joe Hogan
Excellent unit for the money

Installed this controller to operate several hydraulic piston pumps. Works as expected. This Special-Order part was back-order. It was delivered within the estimated time. Personnel at Pierce are knowledgeable and pleasant to conduct business with.

D
Dustin Hribar

Lodar Standard Wireless Control System - 11 Series - 2 Functions

T
Tim Volking

Owner

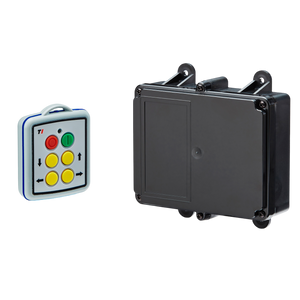

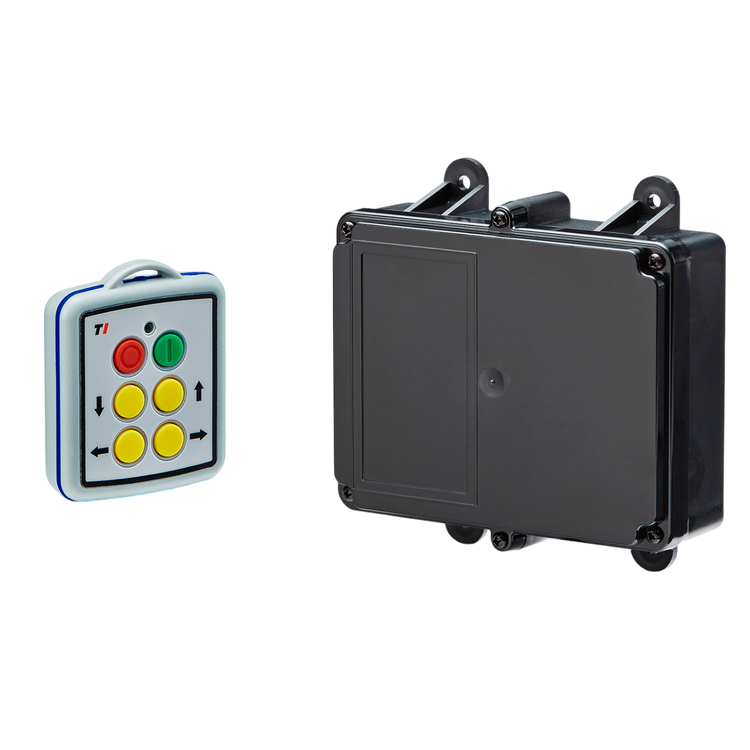

4 Function Mini Wireless Control System | 90 Series | Relay Receiver

5.0

3 reviews

90004-8

Regular price
$521.00
Sale price
$521.00
Regular price
Shipping calculated at checkout.
In Stock
Customization Inquiry
