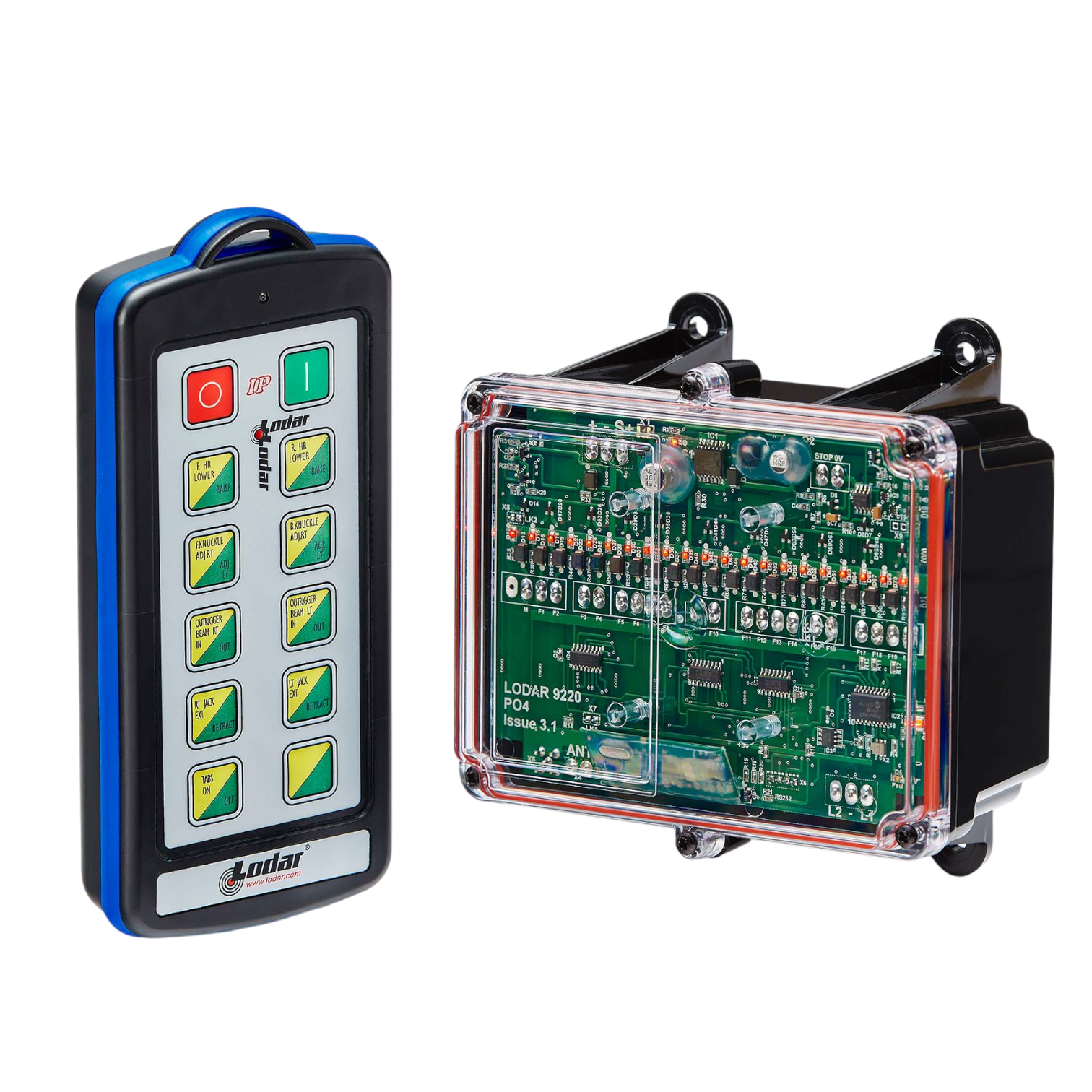

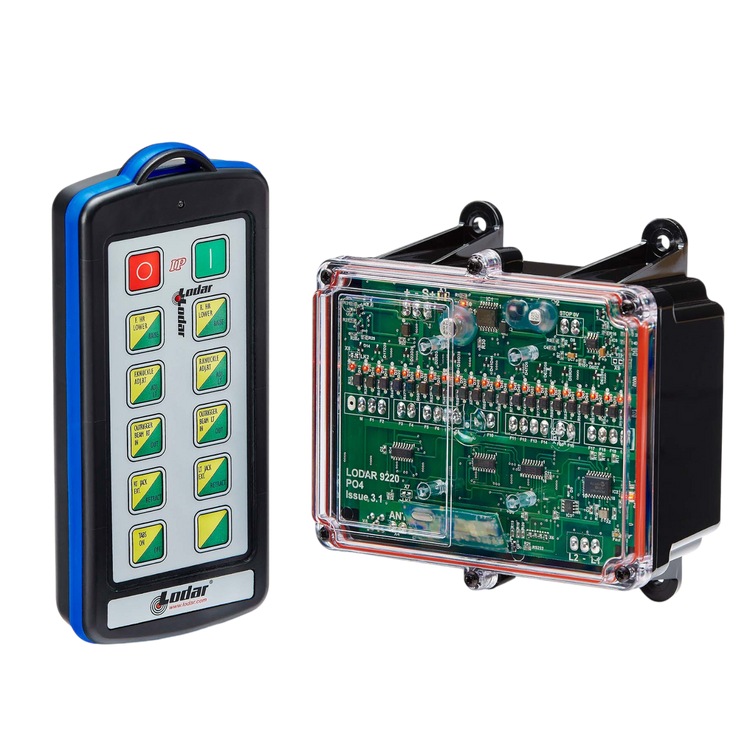

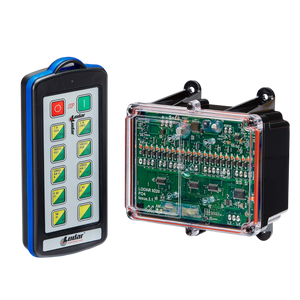

The 20 Function IP SHIFT Wireless Control System by Lodar LTD, part of the 92 Series with a FET Receiver, boasts a transparent electronic circuit board and a 10-button controller against a sleek black background.
    The 20 Function IP SHIFT Wireless Control System by Lodar LTD, part of the 92 Series with a FET Receiver, boasts a transparent electronic circuit board and a 10-button controller against a sleek black background.
The 20 Function IP SHIFT Wireless Control System by Lodar LTD, part of the 92 Series with a FET Receiver, boasts a transparent electronic circuit board and a 10-button controller against a sleek black background.
The 20 Function IP SHIFT Wireless Control System by Lodar LTD, part of the 92 Series with a FET Receiver, boasts a transparent electronic circuit board and a 10-button controller against a sleek black background.
    The 20 Function IP SHIFT Wireless Control System by Lodar LTD, part of the 92 Series with a FET Receiver, boasts a transparent electronic circuit board and a 10-button controller against a sleek black background.
The 20 Function IP SHIFT Wireless Control System by Lodar LTD, part of the 92 Series with a FET Receiver, boasts a transparent electronic circuit board and a 10-button controller against a sleek black background.

Product Information

Characteristics

The Lodar SHIFT System uses firmware to increase the efficiency of your controller by allowing it to perform twice as many functions. It makes use of a 10 Button controller and expands its capabilities to 20 functions. Additionally, this system can be tailored to fit your specific needs.

What is Included

Specifications

Specification Details
TRANSMITTER Industrial Pro SHIFT
FUNCTIONS 20
OPERATING VOLTAGE 12/24 Volts DC
TRANSMITTER IP RATING IP 65
RECEIVER IP RATING IP 65
OPERATING DISTANCE 200 ft. (61 m.)
MASTER OUTPUT Yes
MAX AMPS 15
SERIES 9000 Series
TRANSMITTER BATTERIES AAA x 4
CHANNEL Wide Band, Fixed
FREQUENCY 418 MHz

Resources

Spec Sheet

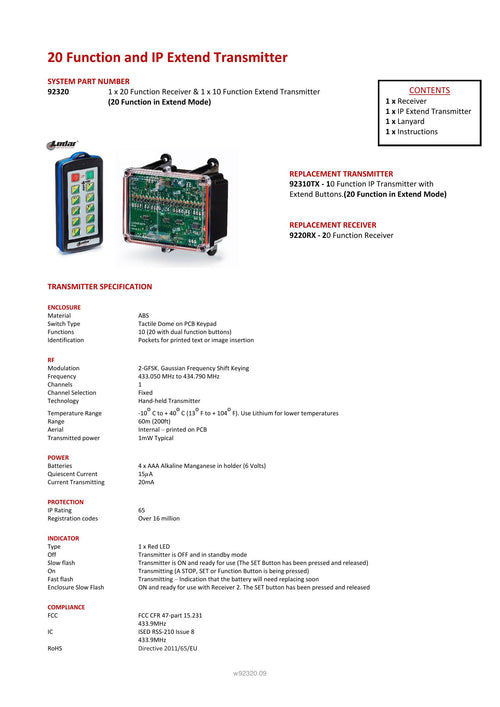

92320 - 20 Function and IP Extended Transmitter

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
Characteristics

The Lodar SHIFT System uses firmware to increase the efficiency of your controller by allowing it to perform twice as many functions. It makes use of a 10 Button controller and expands its capabilities to 20 functions. Additionally, this system can be tailored to fit your specific needs.
