Product Information

Characteristics

Experience efficient and convenient operation with the Lodar 2-function mini wireless control system. Features up to 150-foot range and 3-amp outputs, suitable for any 12-24V solenoid-operated equipment. The included master function adds even more control and accessibility. With an IP 65 transmitter rating and IP 55 receiver rating, this 11 Series system is the perfect addition to your equipment.

Specifications

Specification Details
TRANSMITTER Mini
FUNCTIONS 2
OPERATING VOLTAGE 12/24 Volts DC
TRANSMITTER IP RATING IP 67
RECEIVER IP RATING IP 67
OPERATING DISTANCE 150 ft. (45 m.)
MASTER OUTPUT Yes
MAX AMPS 3
SERIES 11 Series
TRANSMITTER BATTERIES AAA x 2
TYPE Full System
OPERATING TEMPERATURE RANGE 13ºF to 104ºF (-10ºC to 40ºC)
WIRING INCLUDED 5 ft. 7 core cable through gland
SWITCH TYPE Silicone Rubber Keypad with Carbon Pill

Resources

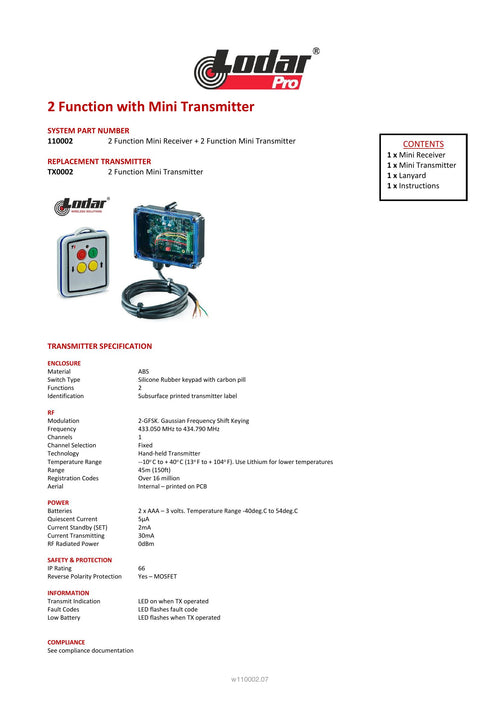

Spec Sheet
110002 - 2 Function with Mini Transmitter
Instructions
11 Series - Mini Transmitter Coding

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
Characteristics

Experience efficient and convenient operation with the Lodar 2-function mini wireless control system. Features up to 150-foot range and 3-amp outputs, suitable for any 12-24V solenoid-operated equipment. The included master function adds even more control and accessibility. With an IP 65 transmitter rating and IP 55 receiver rating, this 11 Series system is the perfect addition to your equipment.
