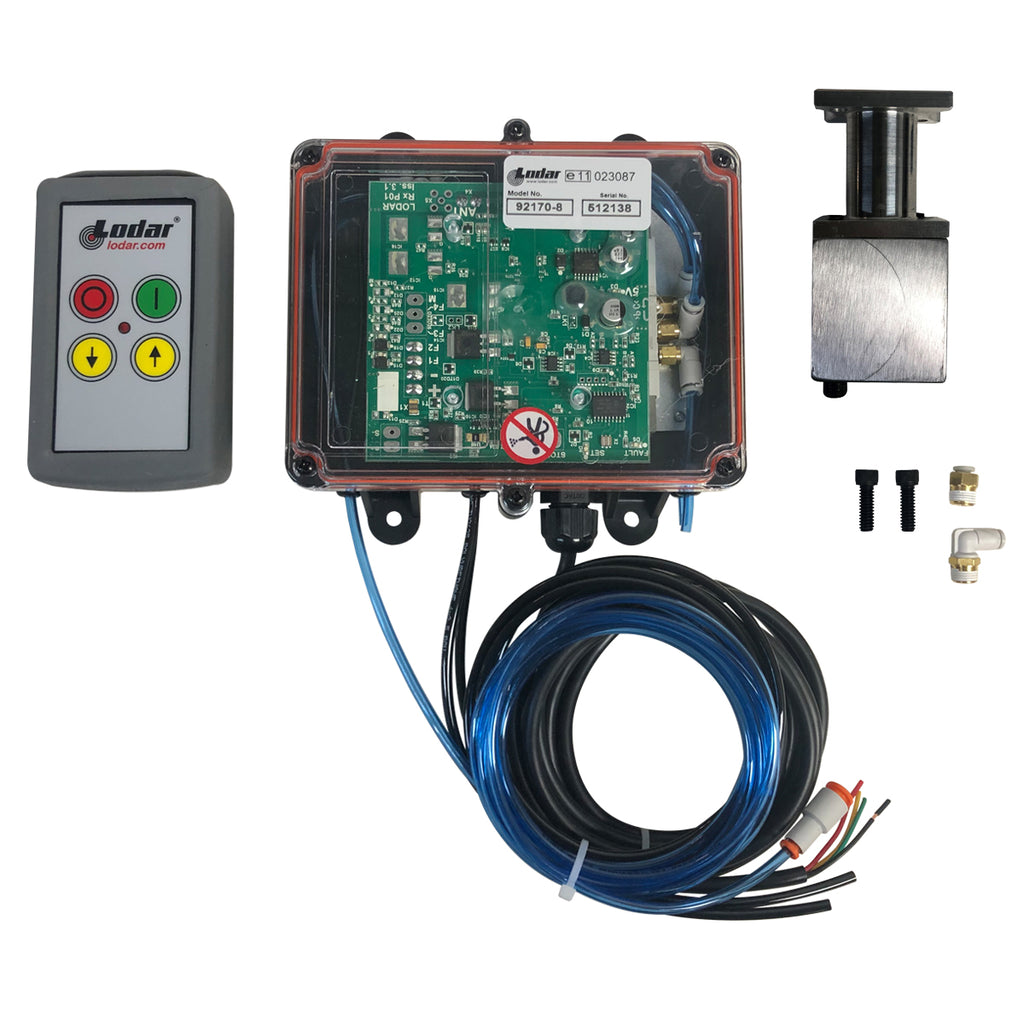

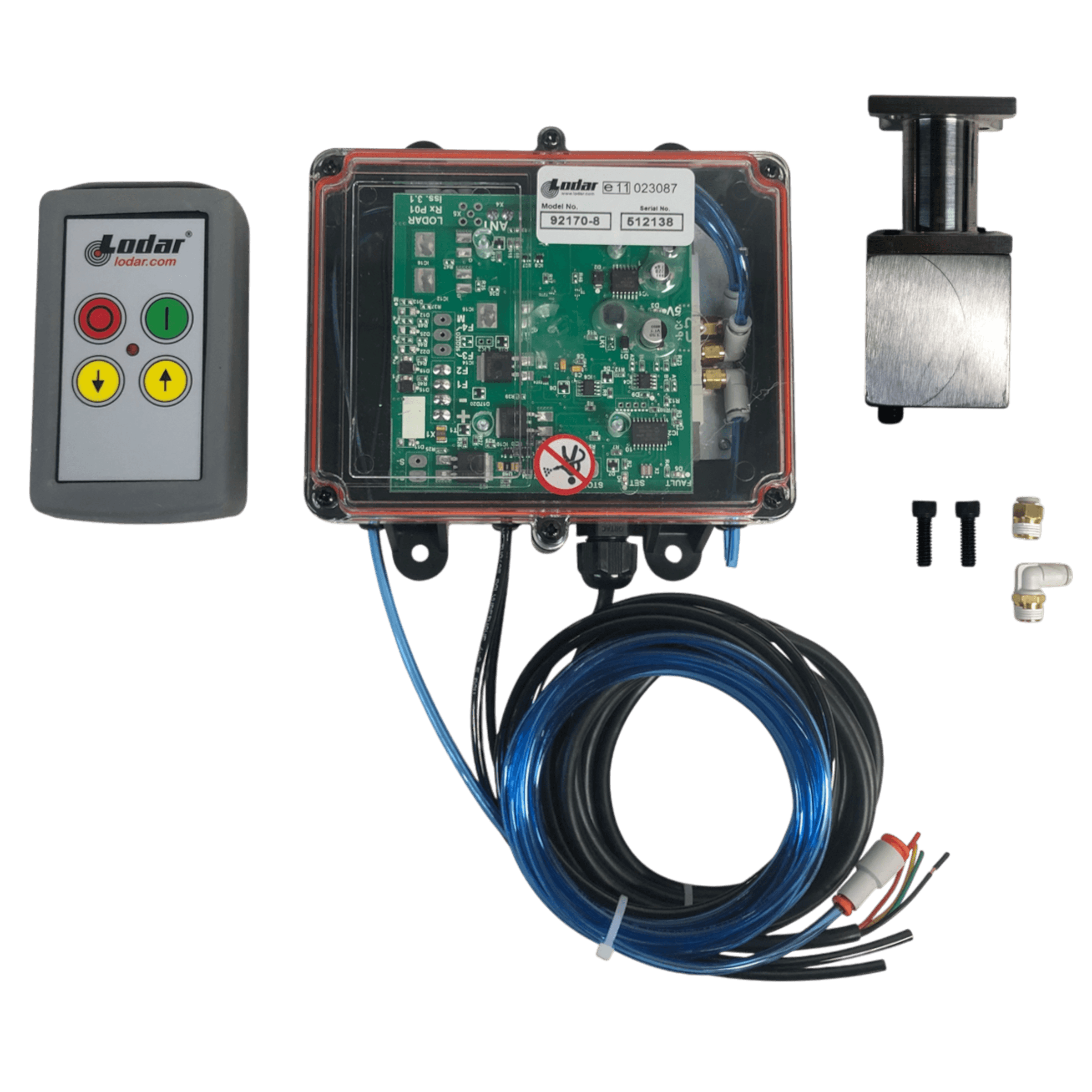

Introducing the **2 Function Wireless Air System with Bolt on Actuator** by **PIERCE**, featuring a sleek circuit board, cables, and connectors on a black background. This complete solution is designed for seamless integration into your project's wireless air system, delivering efficient and reliable performance.

Pairing the 92 Series Lodar Remote & Transmitter

Product Information

PIERCE Bolt on Actuator Wireless Air System. This wireless remote control system operates hand levers safely and effectively. The bolt on system is only compatible with newer wreckers call today for compatibility. The effectiveness and ease of installation make it not only an alternative, but a clear choice. Installation No welding required No special tools required Easy - Quick Installation Compatibility Newer model wreckers call for fit Operation Requirements On-Board Air Supply via Air Compressor with at Least 110-120 PSI On-Board 12 Volt Power Wireless Air Actuator Features Up to 20 Functions Uses FETs (Field-Effect Transistor) instead of Mechanical Relays Low Voltage Protection Warranty Five year pro-rated warranty

Specifications

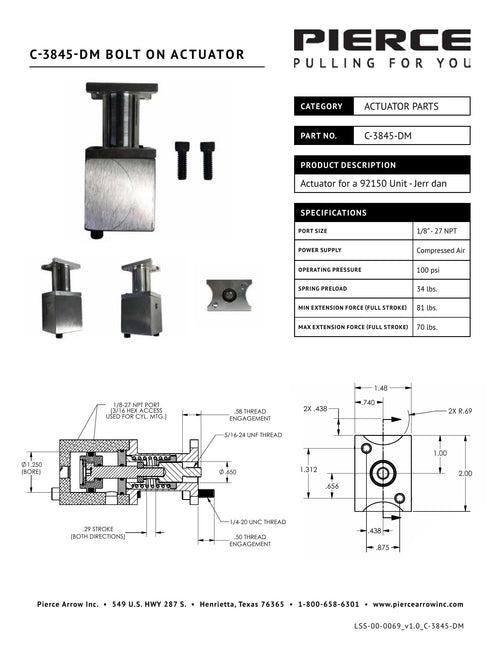

ACTUATOR: Husco Direct Mount Air
FREQUENCY: 433 MHz
FUNCTIONS: 2
MAX AMPS: 15
OPERATING DISTANCE: 200 ft. (61 m.)
OPERATING VOLTAGE: 12/24 Volts DC
RECEIVER IP RATING: IP 65
SERIES: 9000 Series
TRANSMITTER: Standard
TRANSMITTER BATTERIES: 9V x 1
TRANSMITTER IP RATING: IP 54
TYPE: Full System

Warranty

5 Year Pro-Rated Warranty

For the first 2 years Warranty is unlimited.

During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

For the following 3 years Warranty is pro-rated.

During that period, your Distributor will replace with a new product at a discounted price.
These prices are set by each Distributor.
The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.

Conditions

We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
Lodar 8000 Series are now totally out of warranty and are not covered.
Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
