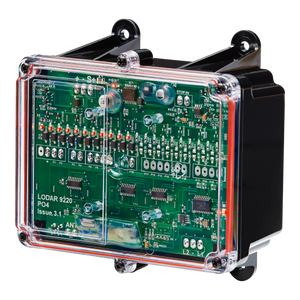

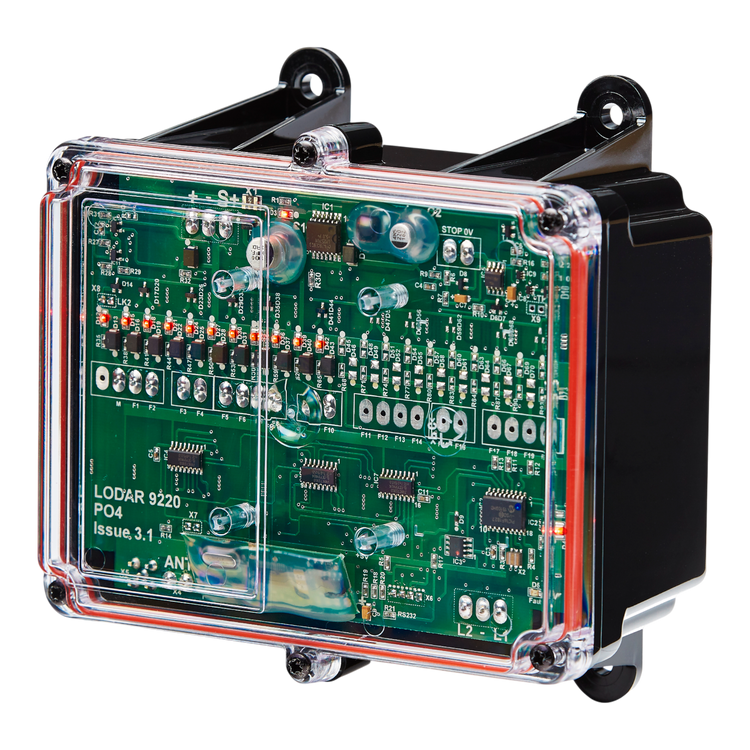

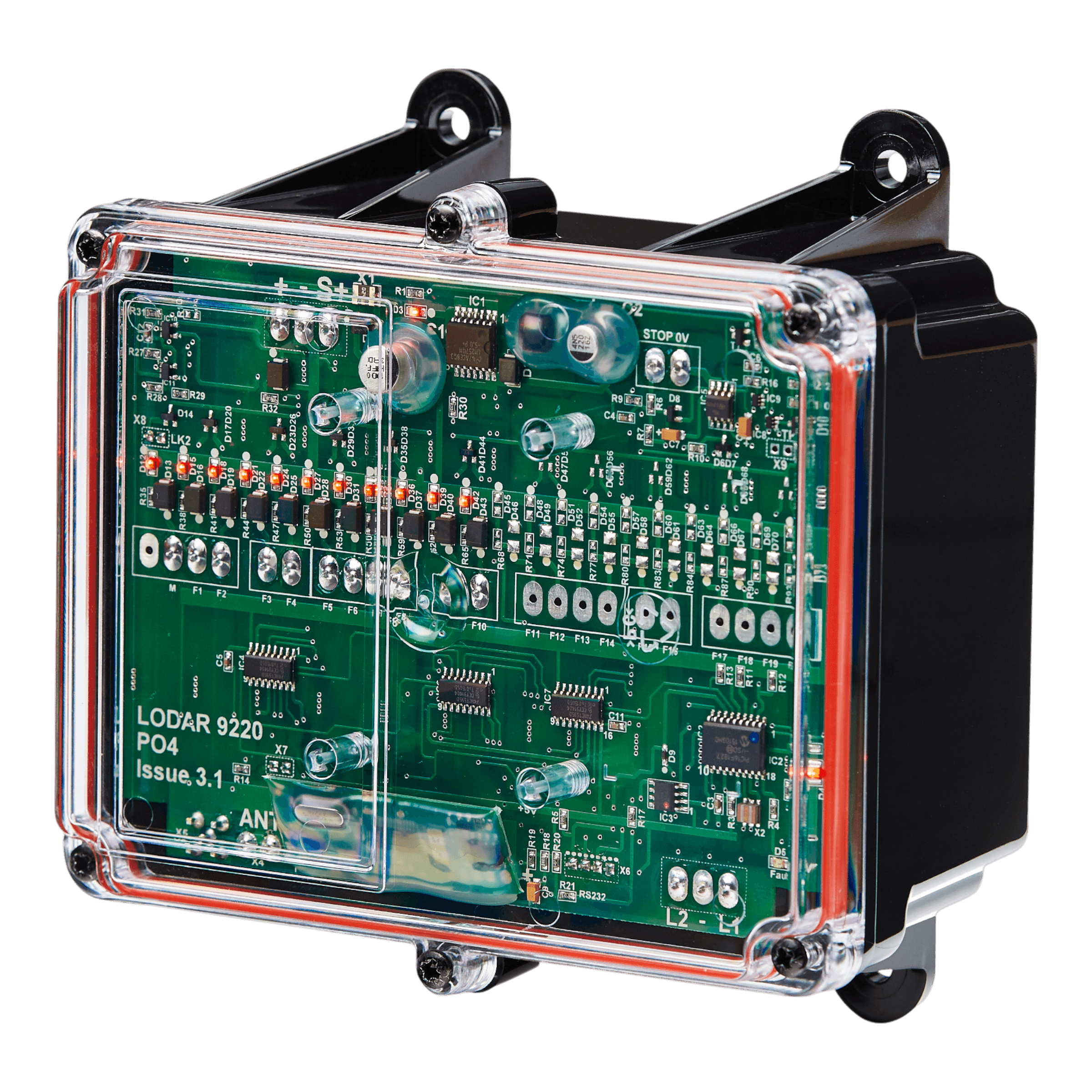

The transparent electronic circuit board, equipped with a master output feature, is enclosed in a clear plastic casing. Its design complements the sophisticated technology of the 10 Function Lodar Replacement FET Receiver from the 92 Series by Lodar LTD, all protected with an IP65 rating for superior durability.
    The transparent electronic circuit board, equipped with a master output feature, is enclosed in a clear plastic casing. Its design complements the sophisticated technology of the 10 Function Lodar Replacement FET Receiver from the 92 Series by Lodar LTD, all protected with an IP65 rating for superior durability.
The transparent electronic circuit board, equipped with a master output feature, is enclosed in a clear plastic casing. Its design complements the sophisticated technology of the 10 Function Lodar Replacement FET Receiver from the 92 Series by Lodar LTD, all protected with an IP65 rating for superior durability.
The transparent electronic circuit board, equipped with a master output feature, is enclosed in a clear plastic casing. Its design complements the sophisticated technology of the 10 Function Lodar Replacement FET Receiver from the 92 Series by Lodar LTD, all protected with an IP65 rating for superior durability.
    The transparent electronic circuit board, equipped with a master output feature, is enclosed in a clear plastic casing. Its design complements the sophisticated technology of the 10 Function Lodar Replacement FET Receiver from the 92 Series by Lodar LTD, all protected with an IP65 rating for superior durability.
The transparent electronic circuit board, equipped with a master output feature, is enclosed in a clear plastic casing. Its design complements the sophisticated technology of the 10 Function Lodar Replacement FET Receiver from the 92 Series by Lodar LTD, all protected with an IP65 rating for superior durability.

Product Information

This receiver is designed to replace the original system for the 10 Function Lodar 9200. With a total of 10 functions, it operates on an operating voltage of 12/24 volts DC. Additionally, it boasts an IP rating of 65 for receivers and a master output feature. It can handle up to a maximum of 10 amps.

What is Included

1 x 9210RX
1 x Instructions

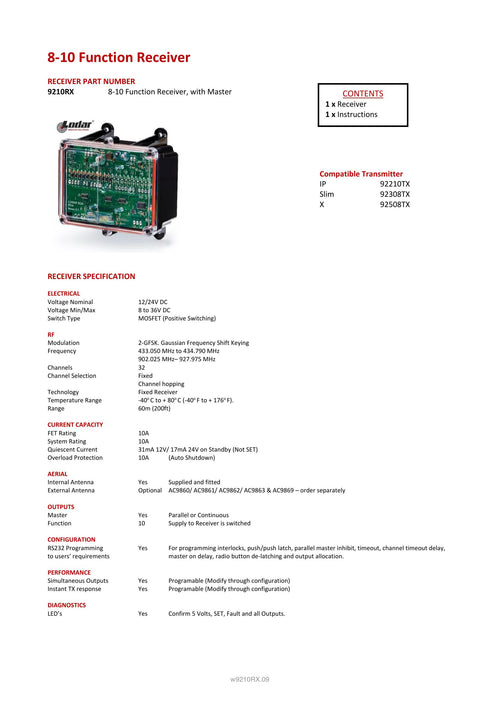

Specifications

FUNCTIONS
10
MASTER OUTPUT
Yes
MAX AMPS
10
OPERATING DISTANCE
200 ft. (61 m.)
OPERATING VOLTAGE
12/24 Volts DC
RECEIVER IP RATING
IP 65
SERIES
9000 Series
TYPE
Receiver Only

Warranty

5 Year Pro-Rated Warranty
For the first 2 years Warranty is unlimited.
  • During that period, your Distributor (in the USA, our Service Department) will repair or replace free of charge, at their discretion, any product that is proved to be faulty.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
For the following 3 years Warranty is pro-rated.
  • During that period, your Distributor will replace with a new product at a discounted price.
  • These prices are set by each Distributor.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • We must receive back either an individual Transmitter or both Transmitter and Receiver, at your cost.
  • We will not accept individual Receivers. Always send both transmitter and receiver unless otherwise requested.
  • Discounted products will carry a further 2-year unlimited warranty. After 5 years Lodar cannot be repaired and will be scrapped.
  • Lodar 8000 Series are now totally out of warranty and are not covered.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. More often than not, we can resolve the matter over the phone.
