Industrial DC Electric Winch (PS654 Series)
    Industrial DC Electric Winch (PS654 Series)
Industrial DC Electric Winch (PS654 Series)
Industrial DC Electric Winch (PS654 Series)
    Industrial DC Electric Winch (PS654 Series)
Industrial DC Electric Winch (PS654 Series)

Product Information

Read More

The PIERCE worm gear winch guarantees a dependable and steady pulling force, boasting a maximum capacity of 12,500 lbs. Its robust construction is utilized across multiple industries worldwide. With convenient access to replacement parts and the capability to operate on-site, this winch is a wise investment. Additionally, this winch is backed by a limited lifetime warranty.

Specifications

Specification Details
MAX CAPACITY (LBS.) 12500
OPERATING VOLTAGE 12 Volts DC
MAX AMPS 400
MAX LINE SPEED 9 fpm
GEAR TYPE Worm Gear
GEAR RATIO 728.5:1
CONSTRUCTION Cast Metal
DRUM ROTATION Counter-Clockwise (Underwound)
RECOMMENDED WIRE ROPE ⅜ in. x 100 ft.
CLUTCH TYPE Dog
BRAKE TYPE Worm Gear Brake
RECOMMENDED BATTERY 650 CCA
RECOMMENDED WIRE 2 gauge
MOTOR (HP) 1.5
DRUM SIZE 3 ½ in. x 8 in.

Resources

Manual
PSW654 Series Winch Manual
Spec Sheet
PSW654-MK Spec Sheet
Guide
3 Post Motor Test
Spec Sheet
PS002 - PS528CN - Wiring Diagram
Wiring Diagram

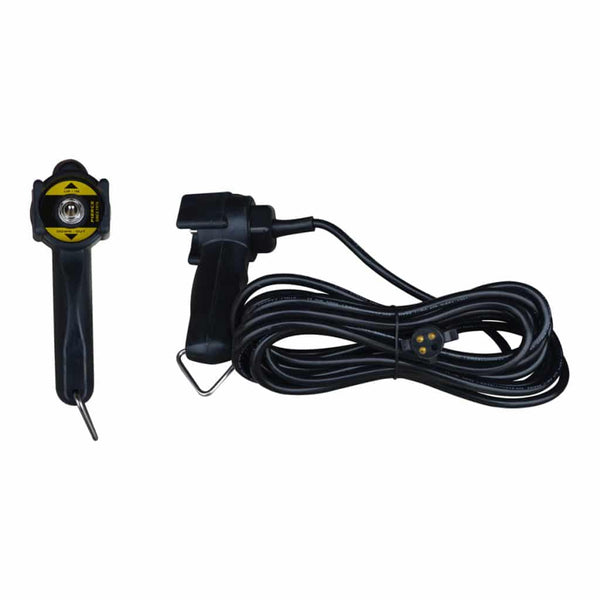

P040 - Wiring Diagram
Wiring Diagram
PS528C-NV2 - Compact Solenoid Assembly Wiring

Warranty

Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
  • Mechanical parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
  • Warranty ensures that electrical components are free from defects.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
Read More

The PIERCE worm gear winch guarantees a dependable and steady pulling force, boasting a maximum capacity of 12,500 lbs. Its robust construction is utilized across multiple industries worldwide. With convenient access to replacement parts and the capability to operate on-site, this winch is a wise investment. Additionally, this winch is backed by a limited lifetime warranty.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
by PIERCE

12,500 lbs. 8" Drum Industrial Electric Winch

PSW654-8MK

Regular price
$1,349.00
Sale price
$1,349.00
Regular price
Shipping calculated at checkout.
12V Industrial Winch:
The worm gear winch can be configured in a variety of ways. These are the base configurations based on the amount of wire rope they can hold and the pulling strength.
BUILT-TO-ORDER
Allow 2-3 Business Days for us to build and ship.
Customization Inquiry
WARNING
This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation
