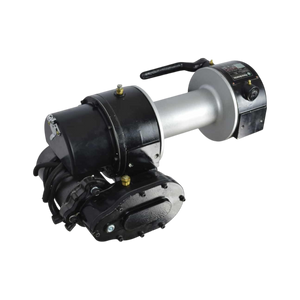

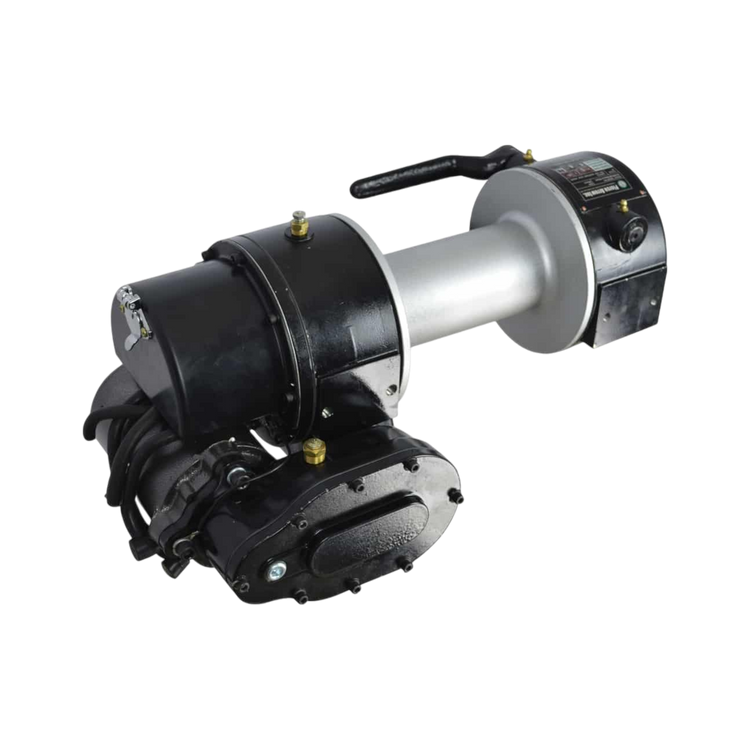

The PIERCE 9,000 lbs. 8 Drum Industrial Electric Winch boasts a sturdy design with a black housing and silver drum against a sleek black background, offering a limited lifetime warranty for peace of mind.
    The PIERCE 9,000 lbs. 8 Drum Industrial Electric Winch boasts a sturdy design with a black housing and silver drum against a sleek black background, offering a limited lifetime warranty for peace of mind.
The PIERCE 9,000 lbs. 8 Drum Industrial Electric Winch boasts a sturdy design with a black housing and silver drum against a sleek black background, offering a limited lifetime warranty for peace of mind.
The PIERCE 9,000 lbs. 8 Drum Industrial Electric Winch boasts a sturdy design with a black housing and silver drum against a sleek black background, offering a limited lifetime warranty for peace of mind.
    The PIERCE 9,000 lbs. 8 Drum Industrial Electric Winch boasts a sturdy design with a black housing and silver drum against a sleek black background, offering a limited lifetime warranty for peace of mind.
The PIERCE 9,000 lbs. 8 Drum Industrial Electric Winch boasts a sturdy design with a black housing and silver drum against a sleek black background, offering a limited lifetime warranty for peace of mind.

Product Information

The PIERCE worm gear winch provides a reliable and consistent pulling force, supporting loads up to 9,000 lbs. Its strong build is used in various industries globally. With easy access to spare parts and the ability to be used on-site, this winch is a smart investment. Plus, it comes with a limited lifetime warranty.

Specifications

BRAKE TYPE
Worm Gear Brake
CLUTCH TYPE
Dog
CONSTRUCTION
Cast Metal
DRUM ROTATION
Counter-Clockwise (Underwound)
DRUM SIZE
3 ½ in. x 11 in.
GEAR RATIO
470:1
GEAR TYPE
Worm Gear
MAX AMPS
400
MAX CAPACITY (LBS.)
9000
MAX LINE SPEED
14 fpm
MOTOR (HP)
1.5
OPERATING VOLTAGE
12 Volts DC
RECOMMENDED BATTERY
650 CCA
RECOMMENDED WIRE
2 gauge
RECOMMENDED WIRE ROPE
⅜ in. x 125 ft.

Warranty

Limited Lifetime Warranty
Mechanical Parts guaranteed free of Defects.
  • Mechanical parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
Electrical Components have a 2 Year Warranty
  • Warranty ensures that electrical components are free from defects.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.

Resources

Manual
PSW654 Series Winch Manual
Spec Sheet
PSW654K Spec Sheet
Guide
3 Post Motor Test
Spec Sheet
PS002 - PS528CN - Wiring Diagram
Wiring Diagram
P040 - Wiring Diagram
Wiring Diagram
PS528C-NV2 - Compact Solenoid Assembly Wiring

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
by PIERCE

9,000 lbs. 8" Drum Industrial Electric Winch

PSW654-8K
$1,199.00
$1,199.00
Shipping calculated at checkout.
12V Industrial Winch Options:
The worm gear winch can be configured in a variety of ways. These are the base configurations based on the amount of wire rope they can hold and the pulling strength.
9,000 lb. Rating | Holds 100' of ⅜" Wire Rope
9,000 lb. Rating | Holds 125' of ⅜" Wire Rope
12,500 lb. Rating | Holds 100' of ⅜" Wire Rope
12,500 lb. Rating | Holds 125' of ⅜" Wire Rope
BUILT-TO-ORDER
Allow 2-3 Business Days for us to build and ship.

Built-to-Order

This product is built to order. Please allow 2-3 Business Days for it to be built and shipped. If you have questions or need an exact lead time for multiple pieces, please contact us at sales@piercesales.com.
Customization Inquiry
WARNING
This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation
