Product Information

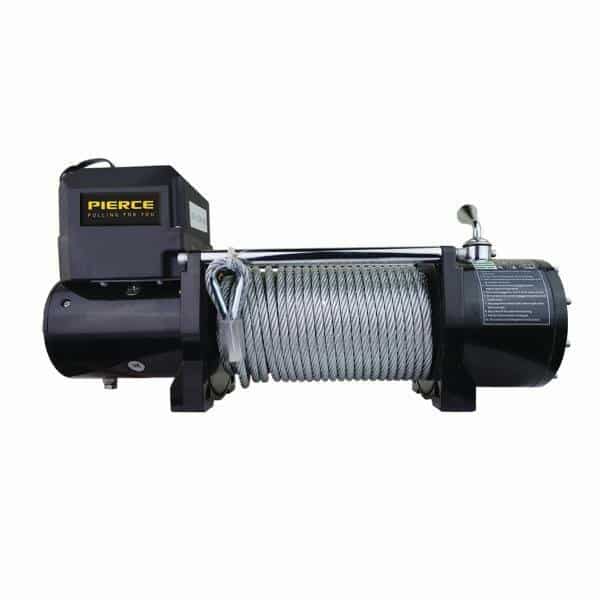

The PS9000 is a 9,000 lb Recovery winch, and features a heavy duty motor with high ampere resistance and output strength; zinc alloy gear box; a three stage planetary gear speed reduction system; super torque strength; mechanical safety brake system for large loading. PS series winches are easy to operate and maintain. Four way steel wire guide wheel allows multi-directional wire rope input.
Included

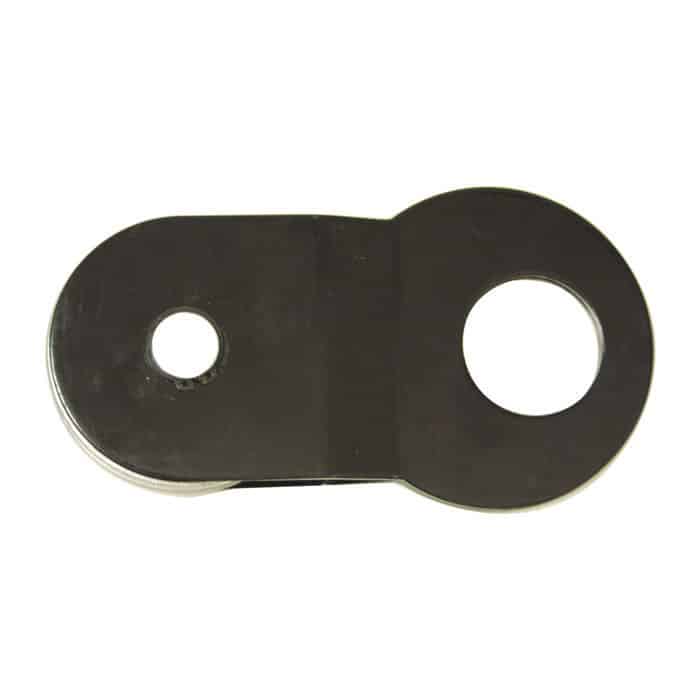

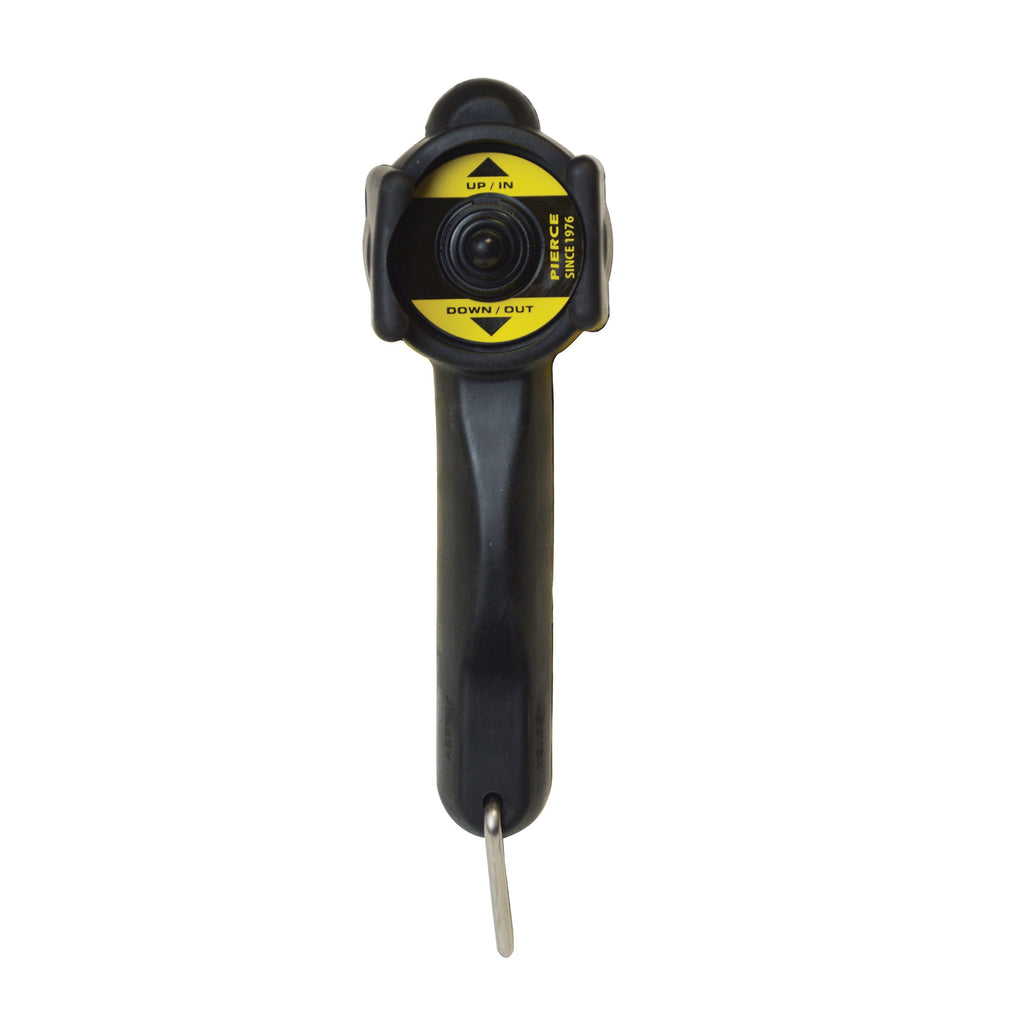

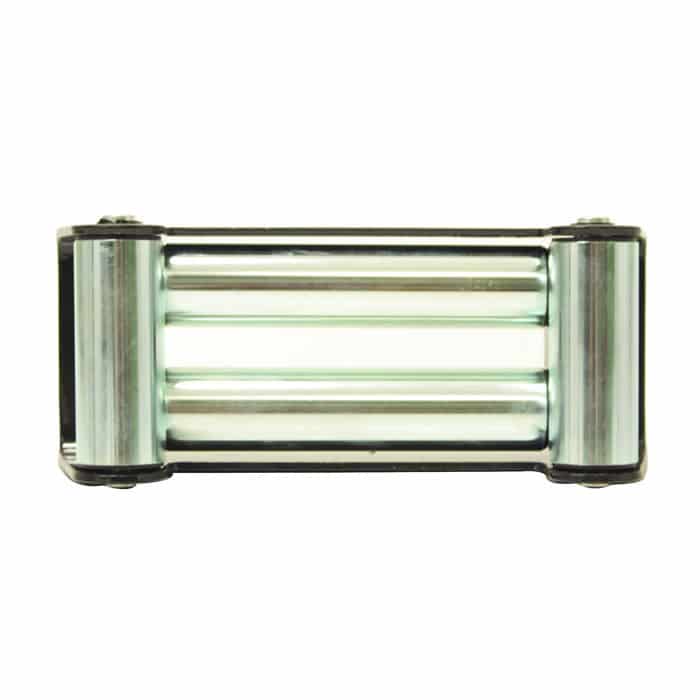

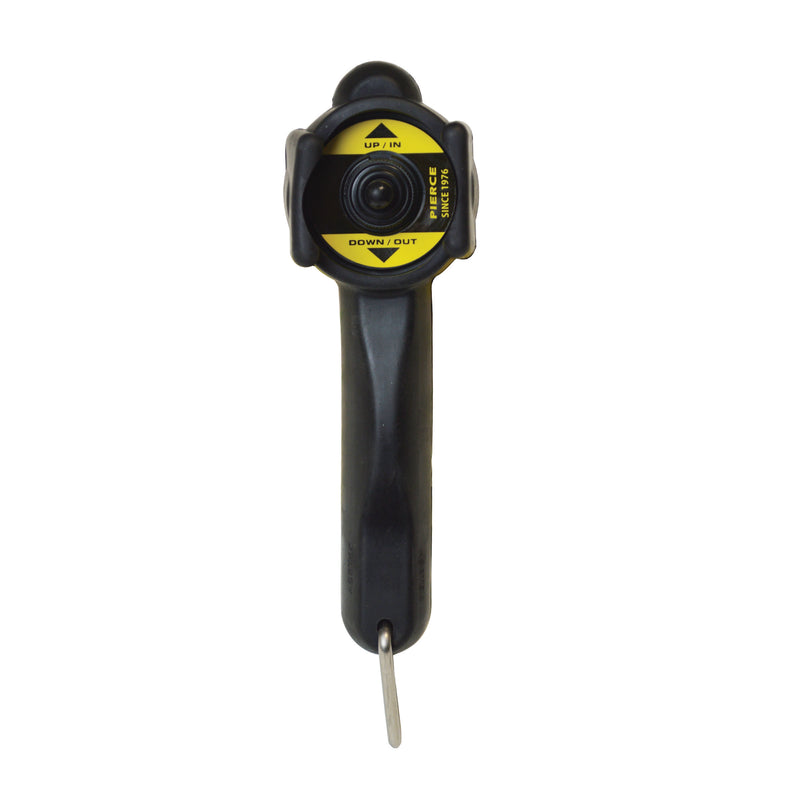

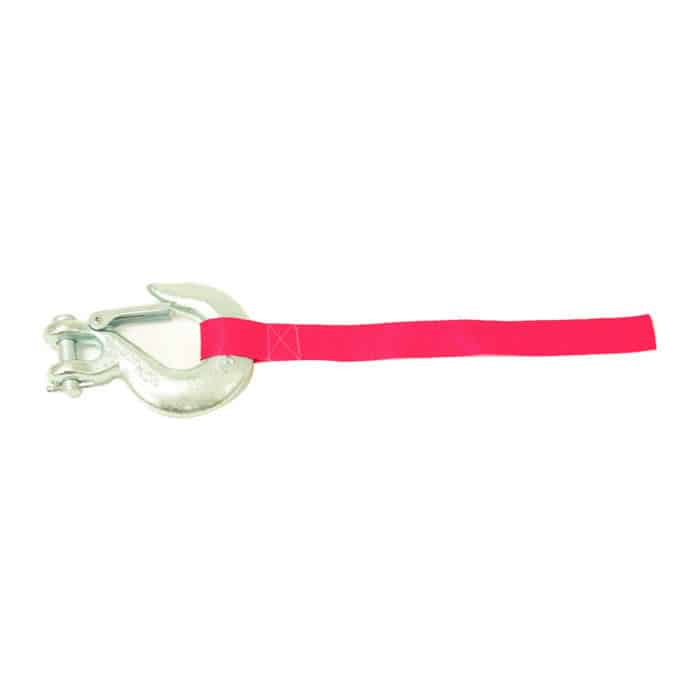

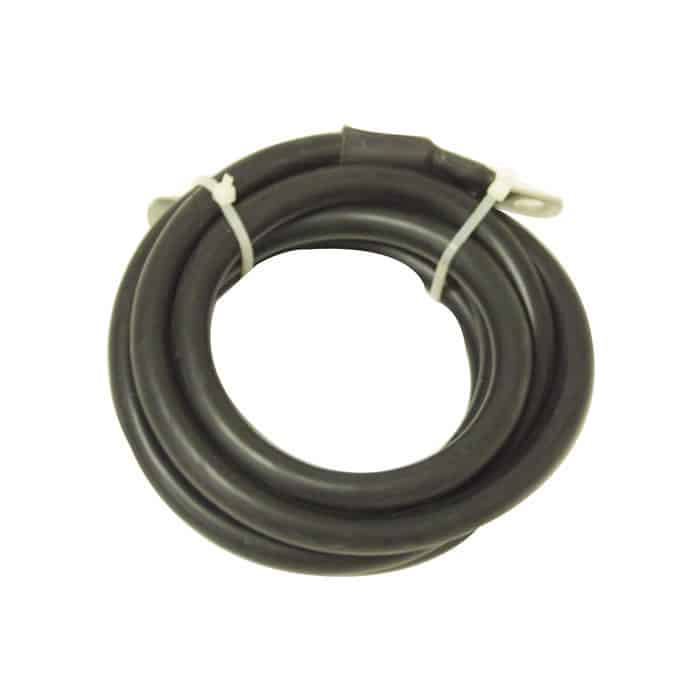

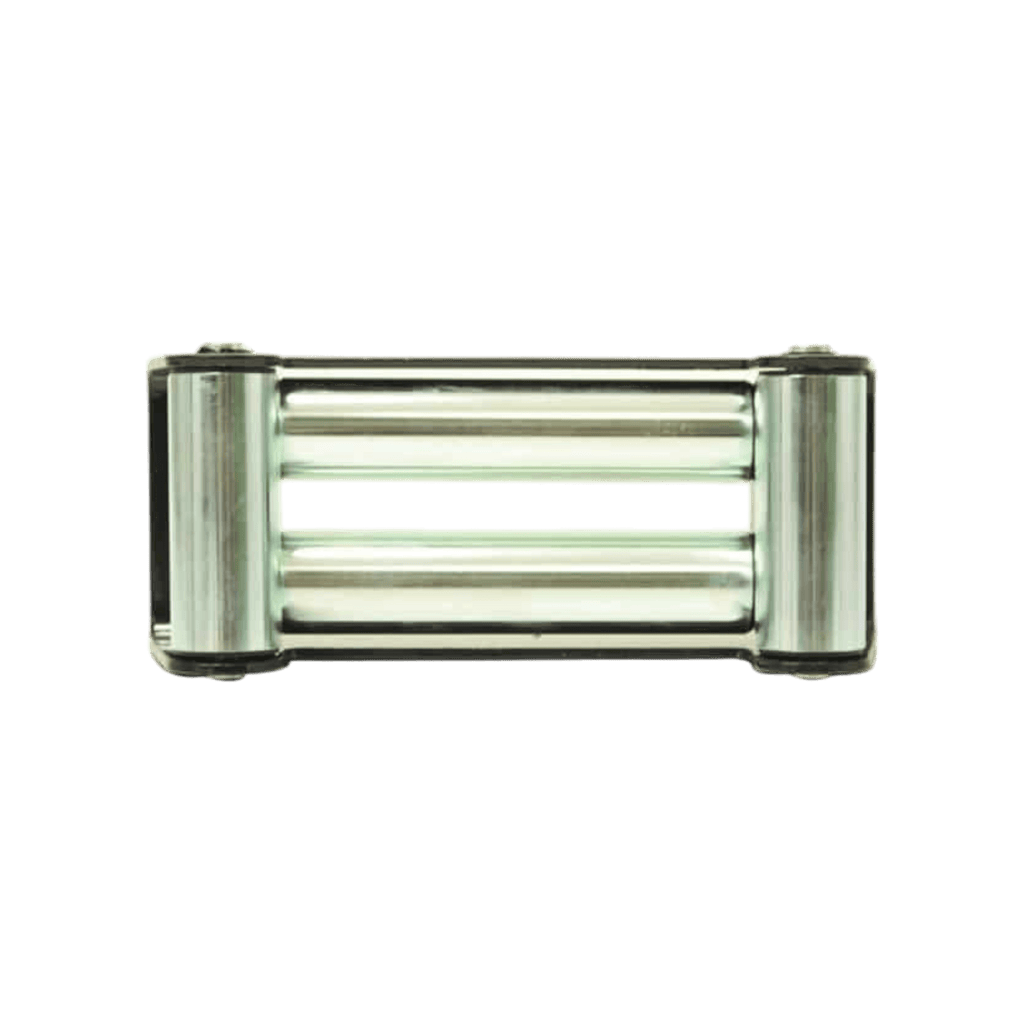

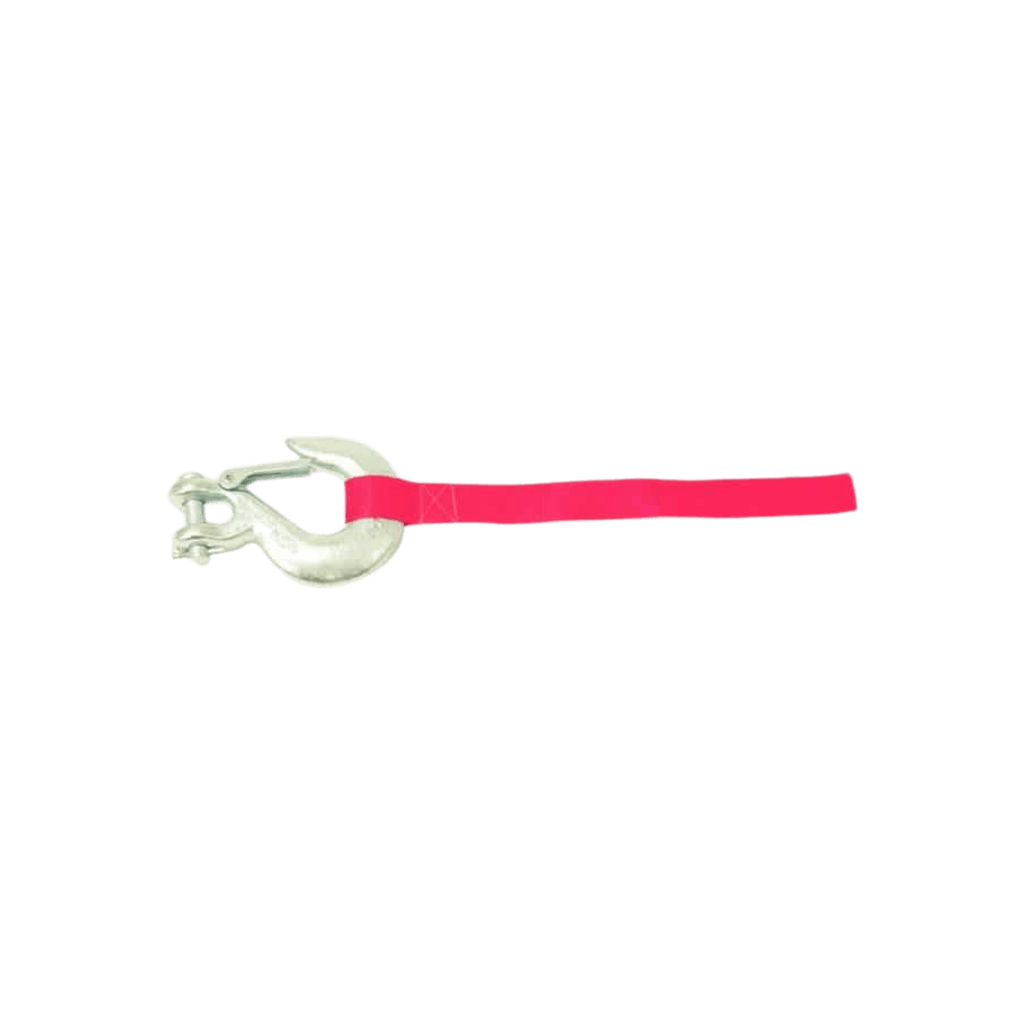

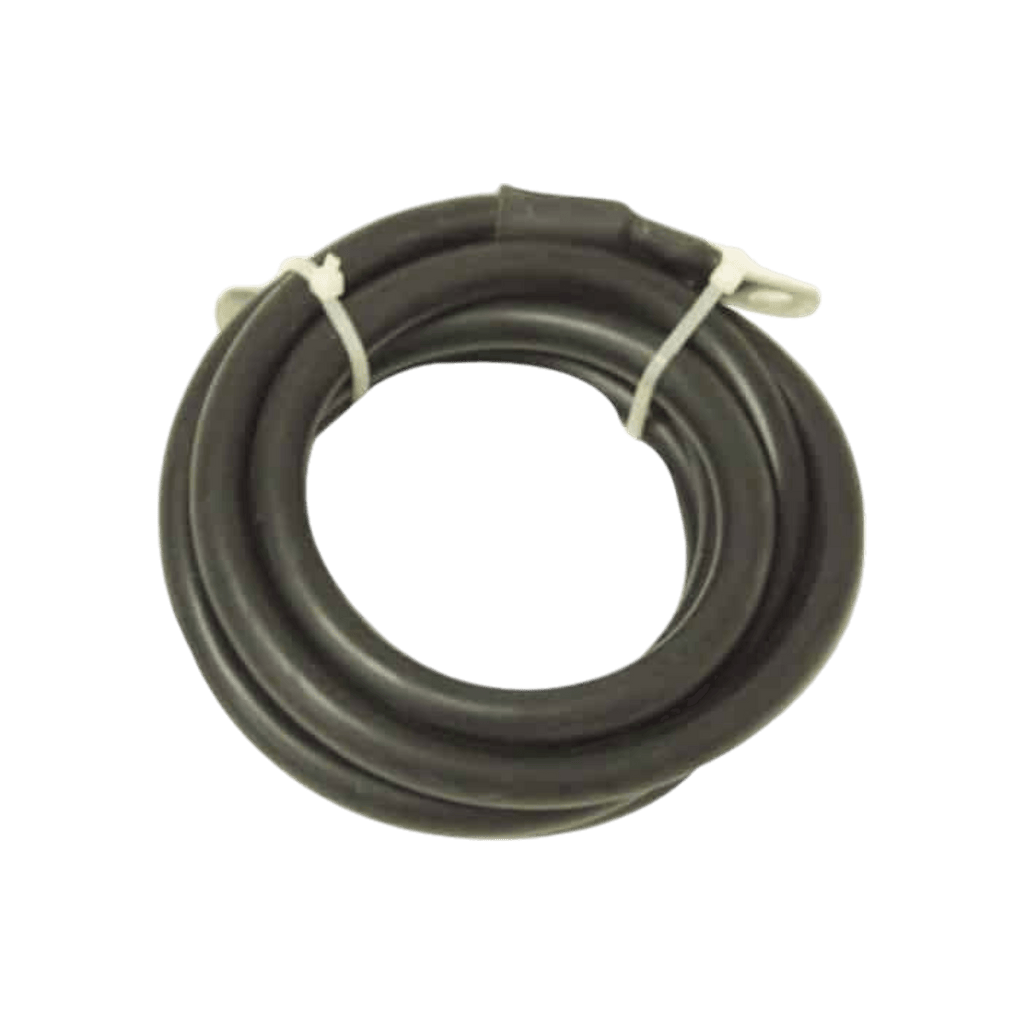

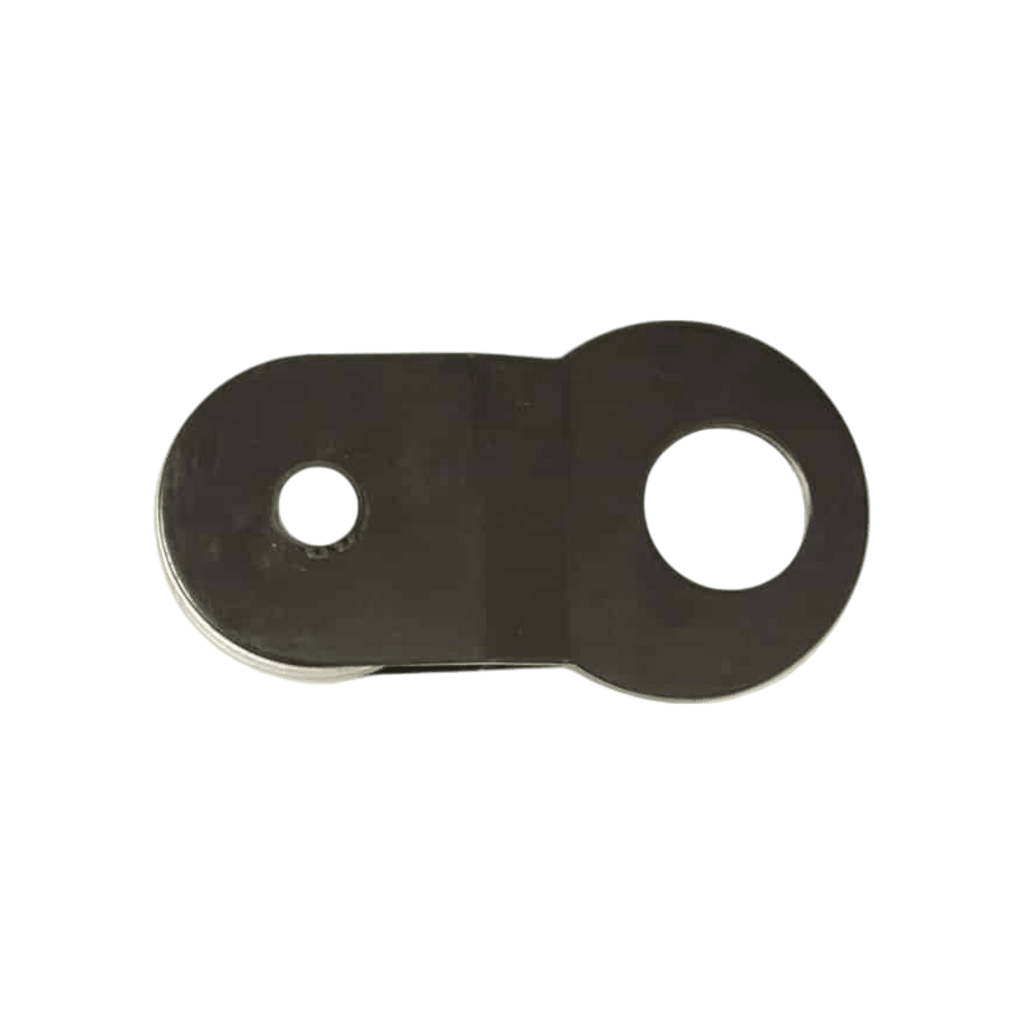

Includes wire rope, safety hook, snatch block, P040N 11' toggle switch remote, roller guide and electrical leads.
What is Included
Specifications
| Specification | Details |
|---|---|
| MAX CAPACITY (LBS.) | 9000 |
| OPERATING VOLTAGE | 12 Volts DC |
| MAX LINE SPEED | 24 fpm |
| GEAR TYPE | 3-Stage Planetary Gear |
| GEAR RATIO | 265:1 |
| CONSTRUCTION | Cast Metal |
| DRUM ROTATION | Counter-Clockwise (Underwound) |
| CLUTCH TYPE | Sliding Ring Gear |
| BRAKE TYPE | Automatic Built-in Drum Brake |
| RECOMMENDED BATTERY | 650 CCA |
| RECOMMENDED WIRE | 2 gauge |
| MOTOR (HP) | 5.5 |
| INCLUDED WIRE ROPE | ¾" x 94' |
Resources
The PS9000 is a 9,000 lb Recovery winch, and features a heavy duty motor with high ampere resistance and output strength; zinc alloy gear box; a three stage planetary gear speed reduction system; super torque strength; mechanical safety brake system for large loading. PS series winches are easy to operate and maintain. Four way steel wire guide wheel allows multi-directional wire rope input.
Included
Includes wire rope, safety hook, snatch block, P040N 11' toggle switch remote, roller guide and electrical leads.
9,000 lb Recovery Winch
PS9000
- Regular price
- $606.00
- Sale price
- $606.00
