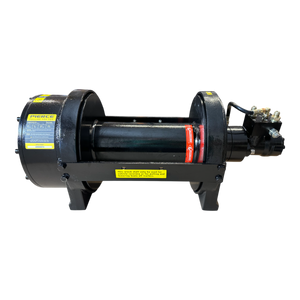

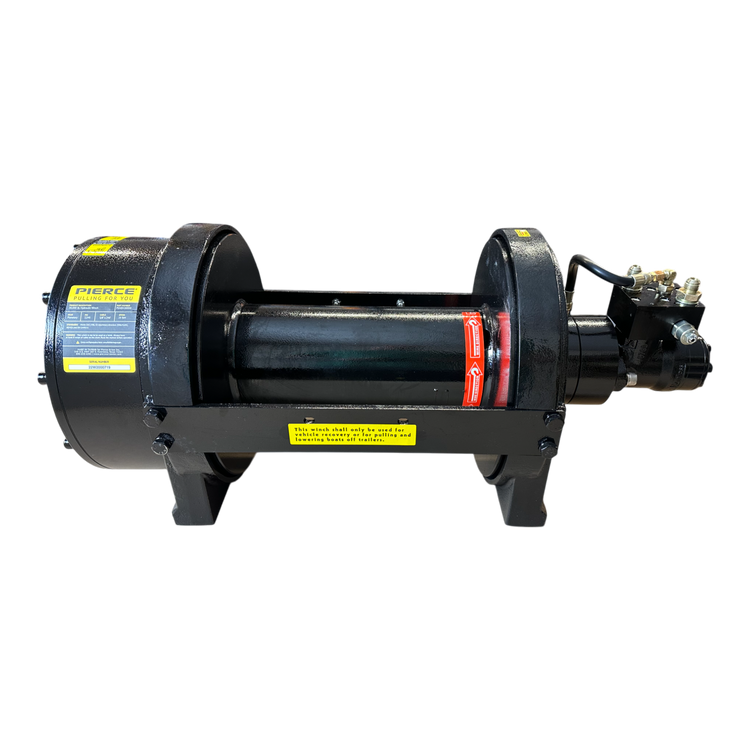

The PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch is showcased against a black background. Featuring visible hydraulic components and a robust planetary gear system, it is expertly designed for heavy-duty tasks.

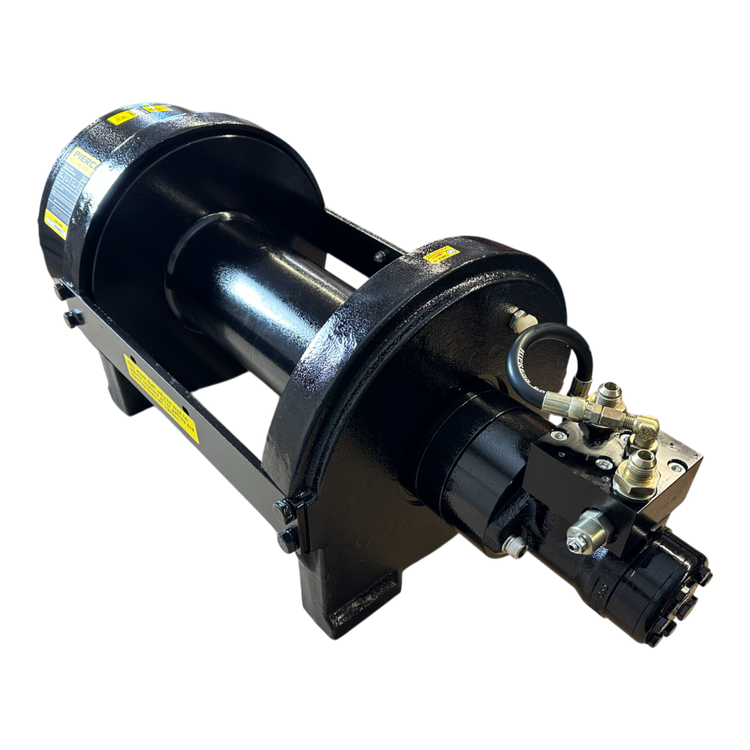

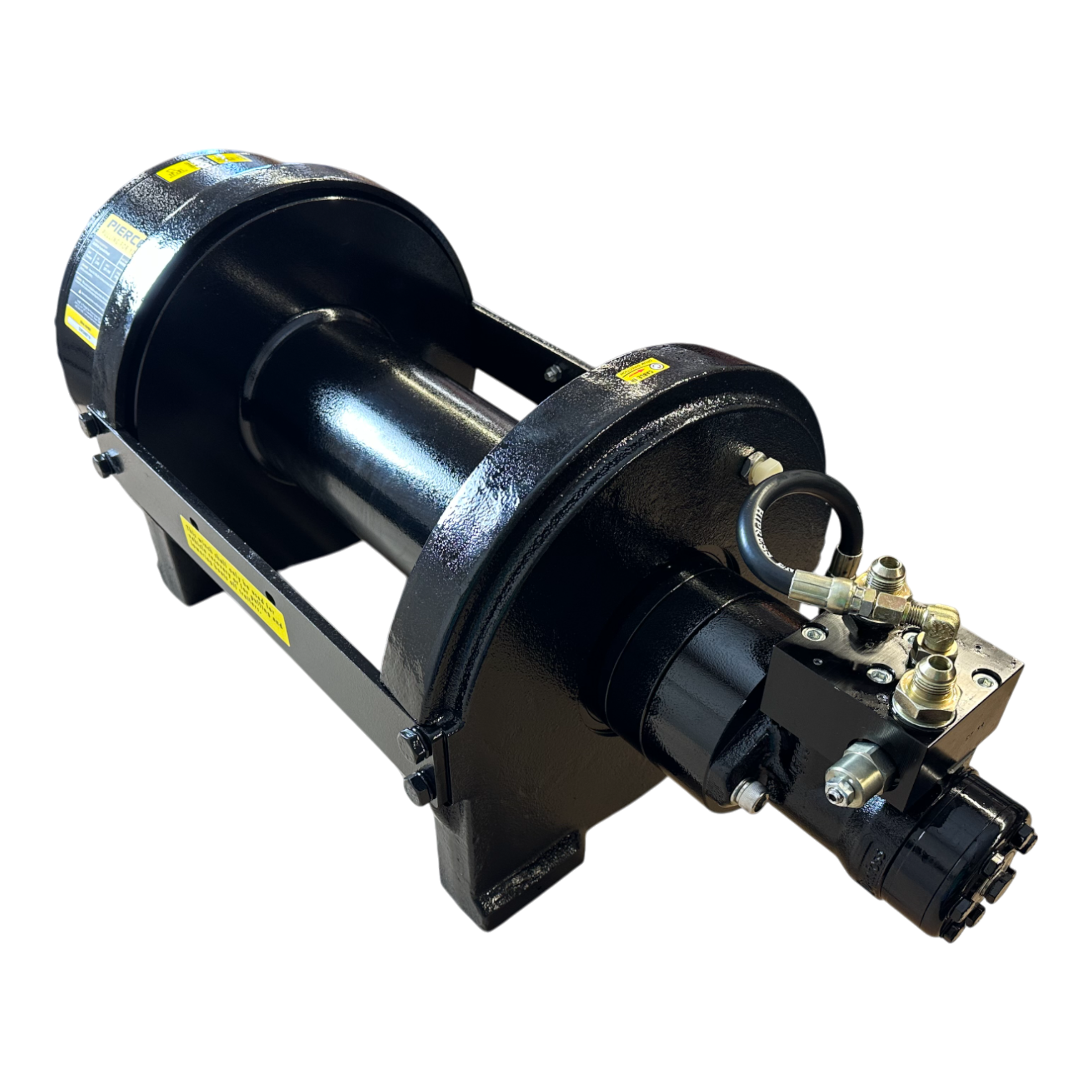

The PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch showcases a durable planetary gear system and comes complete with hoses and connectors, all set against a black background. It is designed to efficiently handle loads up to 30,000 lb.

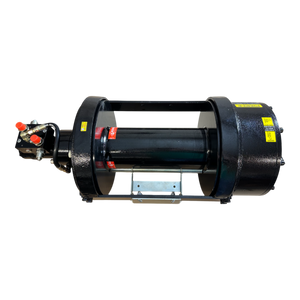

A 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch by PIERCE, featuring a shiny metal circular hatch with a central handle and an integrated planetary gear system. Serial number SN:300659.

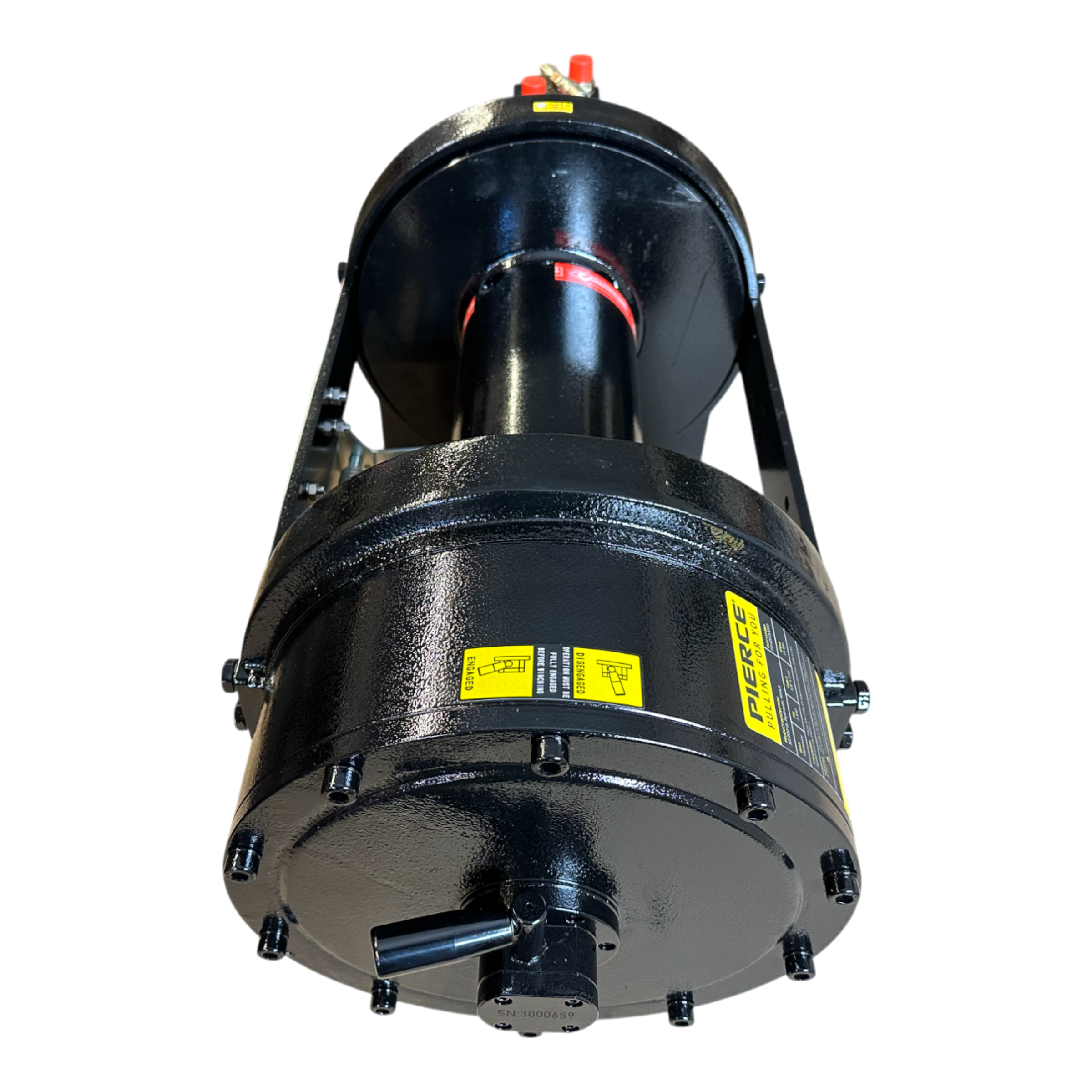

This PIERCE 30,000 lb Hydraulic Recovery Winch, with its striking red and black components and advanced planetary gear system, is skillfully mounted horizontally on a black base, mirroring the sturdy design typical of a hydraulic recovery winch.

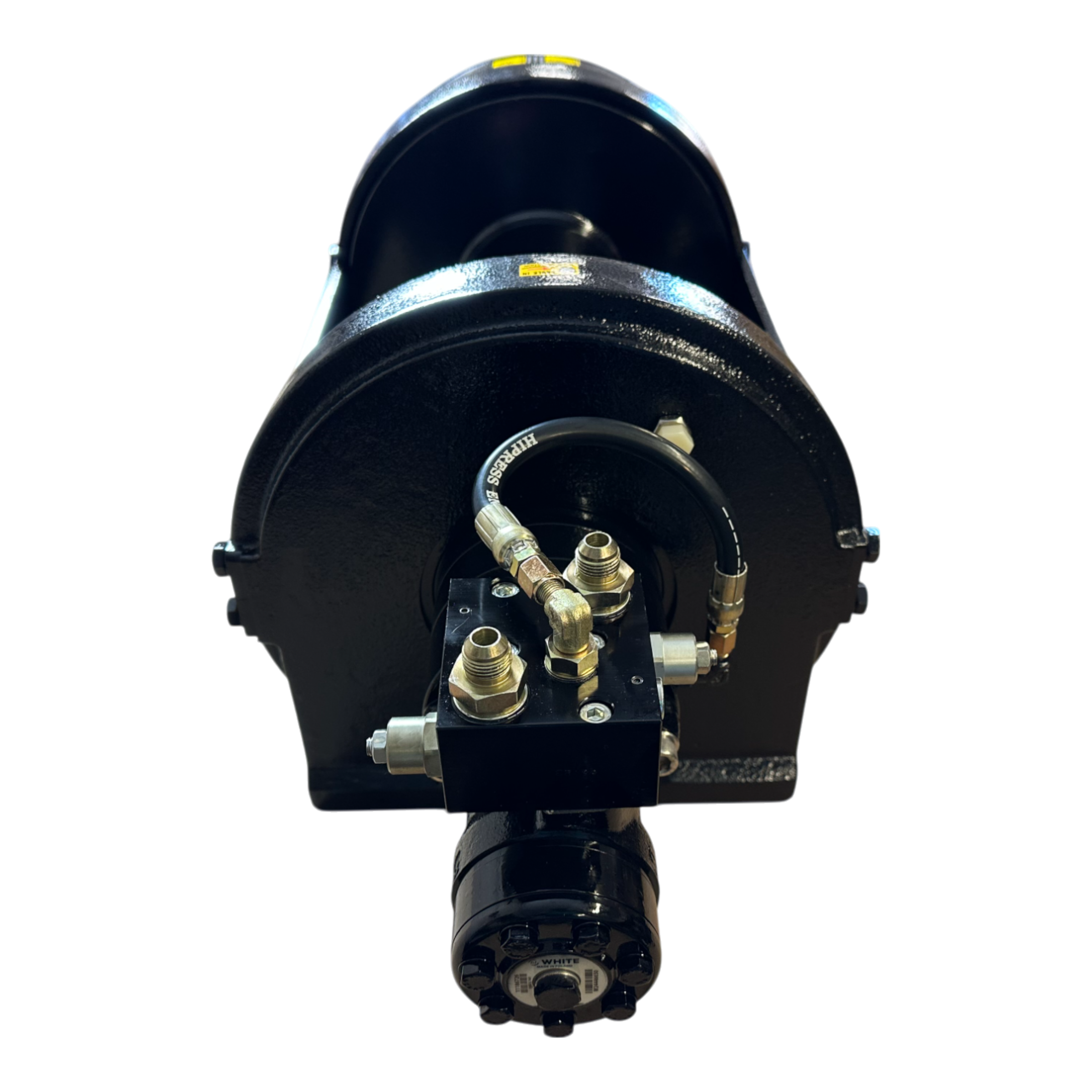

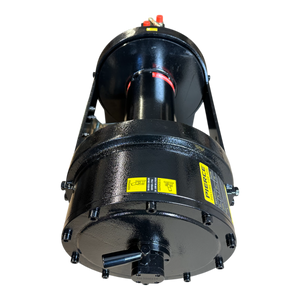

The PIERCE 30,000 lb Hydraulic Recovery Winch, featuring a long drum and manual clutch, is showcased from a low angle. It displays bold yellow labels and sturdy bolts on its powerful black industrial frame.

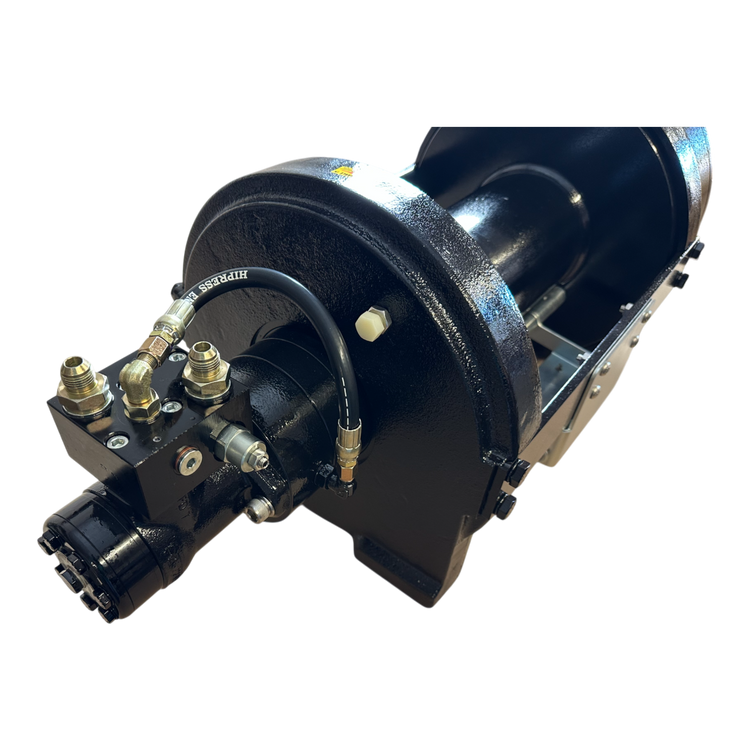

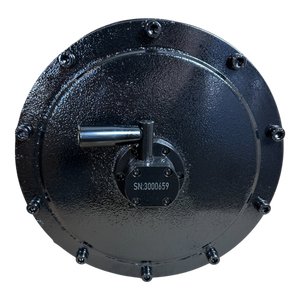

Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch displaying a yellow label that details Engaged and Disengaged instructions. The robust design includes a planetary gear system, ensuring efficient operation that effortlessly handles loads up to 30,000 lb.

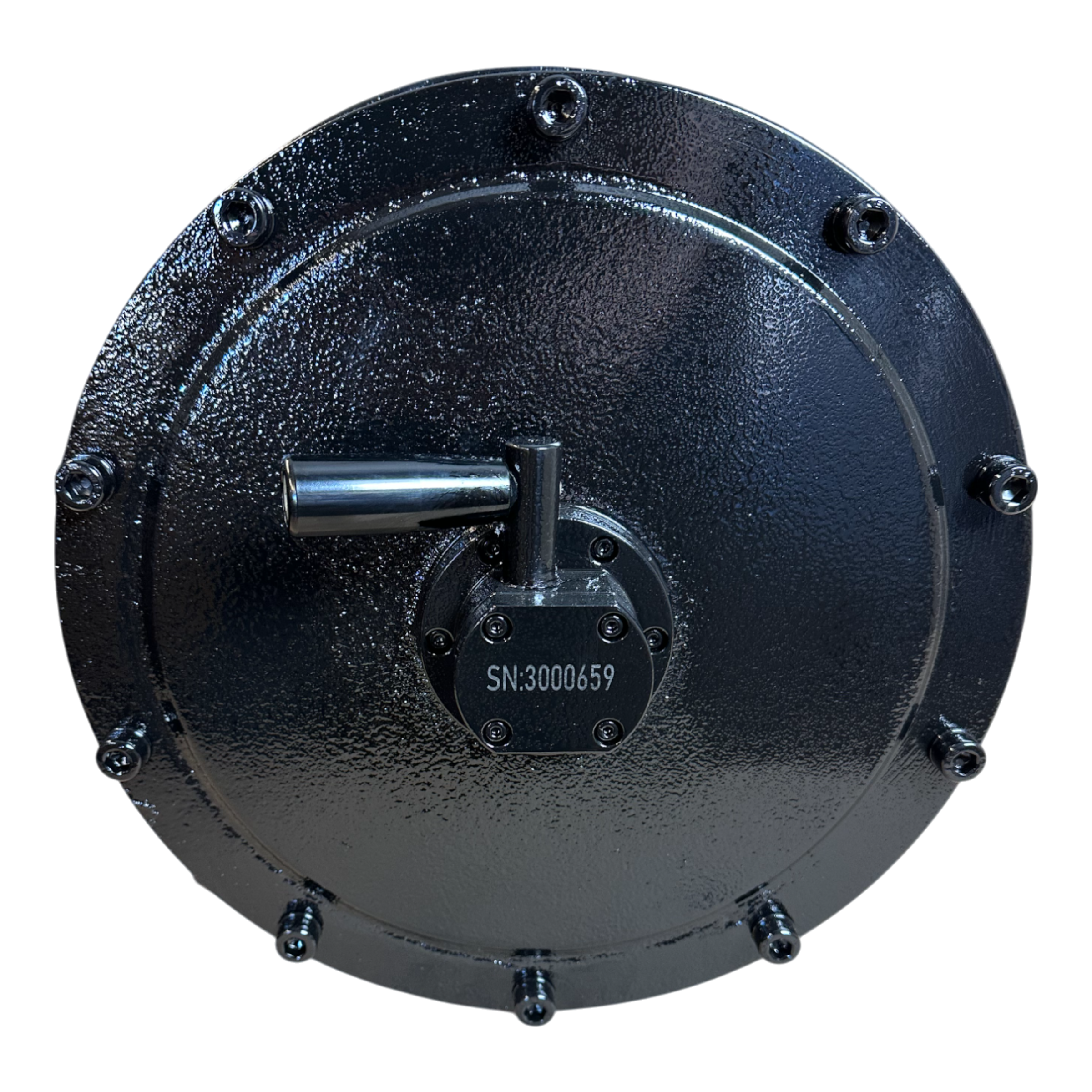

Close-up of a black hydraulic brake drum, showcasing attached hoses and fittings consistent with the robust design of PIERCE's 30,000 lb Hydraulic Recovery Winch. The setup includes a compact 30 planetary gear arrangement to ensure efficient performance.

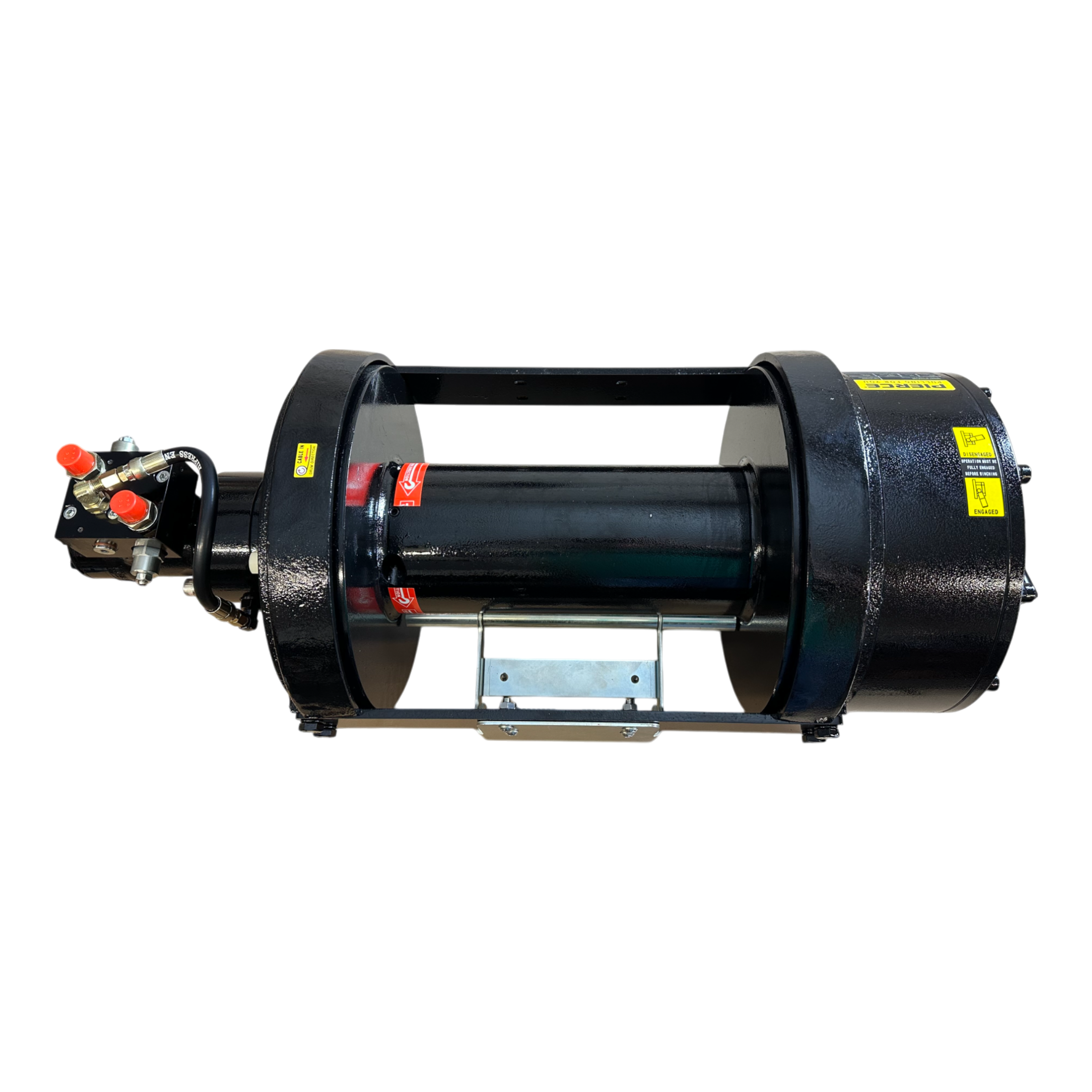

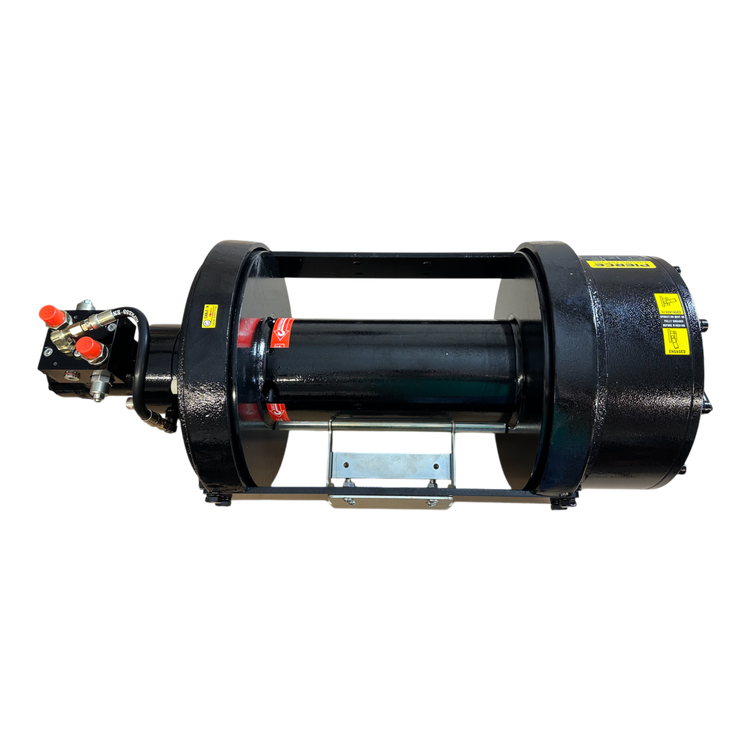

A PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, showcasing exposed hoses and durable metal components, equipped with a strong planetary gear system, set against a black background.

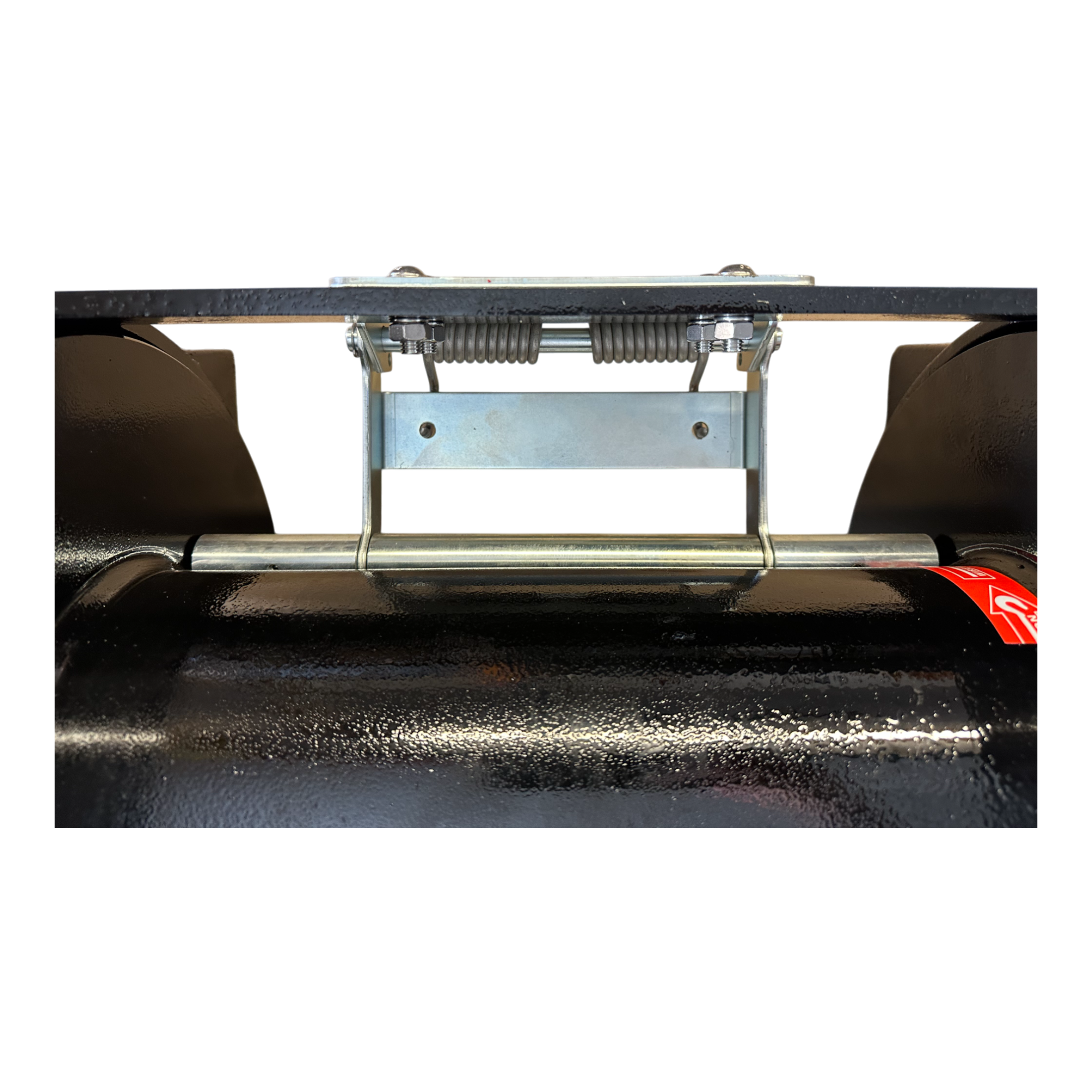

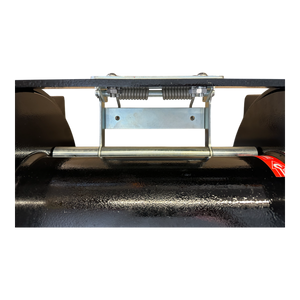

A close-up view of the PIERCE 30,000 lb Hydraulic Recovery Winch's metal spring mechanism and metallic components with a planetary gear, set against a black background.
    The PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch is showcased against a black background. Featuring visible hydraulic components and a robust planetary gear system, it is expertly designed for heavy-duty tasks.
    The PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch showcases a durable planetary gear system and comes complete with hoses and connectors, all set against a black background. It is designed to efficiently handle loads up to 30,000 lb.
    A 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch by PIERCE, featuring a shiny metal circular hatch with a central handle and an integrated planetary gear system. Serial number SN:300659.
    This PIERCE 30,000 lb Hydraulic Recovery Winch, with its striking red and black components and advanced planetary gear system, is skillfully mounted horizontally on a black base, mirroring the sturdy design typical of a hydraulic recovery winch.
    The PIERCE 30,000 lb Hydraulic Recovery Winch, featuring a long drum and manual clutch, is showcased from a low angle. It displays bold yellow labels and sturdy bolts on its powerful black industrial frame.
    Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch displaying a yellow label that details Engaged and Disengaged instructions. The robust design includes a planetary gear system, ensuring efficient operation that effortlessly handles loads up to 30,000 lb.
    Close-up of a black hydraulic brake drum, showcasing attached hoses and fittings consistent with the robust design of PIERCE's 30,000 lb Hydraulic Recovery Winch. The setup includes a compact 30 planetary gear arrangement to ensure efficient performance.
    A PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, showcasing exposed hoses and durable metal components, equipped with a strong planetary gear system, set against a black background.
    A close-up view of the PIERCE 30,000 lb Hydraulic Recovery Winch's metal spring mechanism and metallic components with a planetary gear, set against a black background.
The PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch is showcased against a black background. Featuring visible hydraulic components and a robust planetary gear system, it is expertly designed for heavy-duty tasks.
The PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch showcases a durable planetary gear system and comes complete with hoses and connectors, all set against a black background. It is designed to efficiently handle loads up to 30,000 lb.
A 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch by PIERCE, featuring a shiny metal circular hatch with a central handle and an integrated planetary gear system. Serial number SN:300659.
This PIERCE 30,000 lb Hydraulic Recovery Winch, with its striking red and black components and advanced planetary gear system, is skillfully mounted horizontally on a black base, mirroring the sturdy design typical of a hydraulic recovery winch.
The PIERCE 30,000 lb Hydraulic Recovery Winch, featuring a long drum and manual clutch, is showcased from a low angle. It displays bold yellow labels and sturdy bolts on its powerful black industrial frame.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch displaying a yellow label that details Engaged and Disengaged instructions. The robust design includes a planetary gear system, ensuring efficient operation that effortlessly handles loads up to 30,000 lb.
Close-up of a black hydraulic brake drum, showcasing attached hoses and fittings consistent with the robust design of PIERCE's 30,000 lb Hydraulic Recovery Winch. The setup includes a compact 30 planetary gear arrangement to ensure efficient performance.
A PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, showcasing exposed hoses and durable metal components, equipped with a strong planetary gear system, set against a black background.
A close-up view of the PIERCE 30,000 lb Hydraulic Recovery Winch's metal spring mechanism and metallic components with a planetary gear, set against a black background.
The PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch is showcased against a black background. Featuring visible hydraulic components and a robust planetary gear system, it is expertly designed for heavy-duty tasks.
The PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch showcases a durable planetary gear system and comes complete with hoses and connectors, all set against a black background. It is designed to efficiently handle loads up to 30,000 lb.
A 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch by PIERCE, featuring a shiny metal circular hatch with a central handle and an integrated planetary gear system. Serial number SN:300659.
This PIERCE 30,000 lb Hydraulic Recovery Winch, with its striking red and black components and advanced planetary gear system, is skillfully mounted horizontally on a black base, mirroring the sturdy design typical of a hydraulic recovery winch.
The PIERCE 30,000 lb Hydraulic Recovery Winch, featuring a long drum and manual clutch, is showcased from a low angle. It displays bold yellow labels and sturdy bolts on its powerful black industrial frame.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch displaying a yellow label that details Engaged and Disengaged instructions. The robust design includes a planetary gear system, ensuring efficient operation that effortlessly handles loads up to 30,000 lb.
Close-up of a black hydraulic brake drum, showcasing attached hoses and fittings consistent with the robust design of PIERCE's 30,000 lb Hydraulic Recovery Winch. The setup includes a compact 30 planetary gear arrangement to ensure efficient performance.
A PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, showcasing exposed hoses and durable metal components, equipped with a strong planetary gear system, set against a black background.
A close-up view of the PIERCE 30,000 lb Hydraulic Recovery Winch's metal spring mechanism and metallic components with a planetary gear, set against a black background.
    The PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch is showcased against a black background. Featuring visible hydraulic components and a robust planetary gear system, it is expertly designed for heavy-duty tasks.
    The PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch showcases a durable planetary gear system and comes complete with hoses and connectors, all set against a black background. It is designed to efficiently handle loads up to 30,000 lb.
    A 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch by PIERCE, featuring a shiny metal circular hatch with a central handle and an integrated planetary gear system. Serial number SN:300659.
    This PIERCE 30,000 lb Hydraulic Recovery Winch, with its striking red and black components and advanced planetary gear system, is skillfully mounted horizontally on a black base, mirroring the sturdy design typical of a hydraulic recovery winch.
    The PIERCE 30,000 lb Hydraulic Recovery Winch, featuring a long drum and manual clutch, is showcased from a low angle. It displays bold yellow labels and sturdy bolts on its powerful black industrial frame.
    Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch displaying a yellow label that details Engaged and Disengaged instructions. The robust design includes a planetary gear system, ensuring efficient operation that effortlessly handles loads up to 30,000 lb.
    Close-up of a black hydraulic brake drum, showcasing attached hoses and fittings consistent with the robust design of PIERCE's 30,000 lb Hydraulic Recovery Winch. The setup includes a compact 30 planetary gear arrangement to ensure efficient performance.
    A PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, showcasing exposed hoses and durable metal components, equipped with a strong planetary gear system, set against a black background.
    A close-up view of the PIERCE 30,000 lb Hydraulic Recovery Winch's metal spring mechanism and metallic components with a planetary gear, set against a black background.
The PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch is showcased against a black background. Featuring visible hydraulic components and a robust planetary gear system, it is expertly designed for heavy-duty tasks.
The PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch showcases a durable planetary gear system and comes complete with hoses and connectors, all set against a black background. It is designed to efficiently handle loads up to 30,000 lb.
A 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch by PIERCE, featuring a shiny metal circular hatch with a central handle and an integrated planetary gear system. Serial number SN:300659.
This PIERCE 30,000 lb Hydraulic Recovery Winch, with its striking red and black components and advanced planetary gear system, is skillfully mounted horizontally on a black base, mirroring the sturdy design typical of a hydraulic recovery winch.
The PIERCE 30,000 lb Hydraulic Recovery Winch, featuring a long drum and manual clutch, is showcased from a low angle. It displays bold yellow labels and sturdy bolts on its powerful black industrial frame.
Close-up of the PIERCE 30,000 lb Hydraulic Recovery Winch with Long Drum and Manual Clutch displaying a yellow label that details Engaged and Disengaged instructions. The robust design includes a planetary gear system, ensuring efficient operation that effortlessly handles loads up to 30,000 lb.
Close-up of a black hydraulic brake drum, showcasing attached hoses and fittings consistent with the robust design of PIERCE's 30,000 lb Hydraulic Recovery Winch. The setup includes a compact 30 planetary gear arrangement to ensure efficient performance.
A PIERCE 30,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, showcasing exposed hoses and durable metal components, equipped with a strong planetary gear system, set against a black background.
A close-up view of the PIERCE 30,000 lb Hydraulic Recovery Winch's metal spring mechanism and metallic components with a planetary gear, set against a black background.

Product Information

Characteristics

Expertly designed for the toughest jobs, the 30,000 lb Hydraulic Recovery Winch offers exceptional performance and reliability. With a powerful hydraulic motor and 2-stage planetary gear, it can handle loads with ease. The manual clutch and multidisc brake provide precise control and safety. Recommended for professionals.

What is Included

1 x (PSHDH30000M) 30,000 lb Hydraulic Recovery Winch | Long Drum | Manual Clutch
1 x Roller Fairlead PSHDH Series
1 x Cable Tensioner
1 x Instructions

Specifications

Specification Details
MAX CAPACITY (LBS.) 30000
POWER SOURCE Hydraulic
MAX LINE SPEED 16 fpm @ 15.9 gpm
MAX OIL FLOW (GPM) 15.9
OPERATIONAL PRESSURE (PSI) 2540
HYDRAULIC MOTOR 9.5 in³ / rev
GEAR TYPE 2-Stage Planetary Gear
GEAR RATIO 41:1
CONSTRUCTION Cast Housings with Steel Drum
DRUM ROTATION Counter-Clockwise (Underwound)
RECOMMENDED WIRE ROPE ⅝" x 246' (1,960 N/mm2grade a minimum breaking strength of 179 KN required)
CLUTCH TYPE Output Shaft Disengaged
BRAKE TYPE Multidisc Brake
MOUNTING BOLT PATTERN 7.5” x 18” ; 10.5” x 18”

PSHDH30000 Line Pull and Rope Layer

Data is calculated based on a consistently supplied 15.9 gpm flow with ⅝" winch cable. Environmental and other conditions may affect results. Always use the proper safety gear and follow all safety precautions when winching.
Layer of Wire Rope Pull by Layer (lbs.) Total Rope on the Drum (ft.) Line Speed (@ 15.9 gpm) fpm
1st 30,000 36 16
2nd 25,216 82 19
3rd 21,745 131 23
4th 19,115 190 26
5th 17,052 246 29

Warranty

1 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
Characteristics

Expertly designed for the toughest jobs, the 30,000 lb Hydraulic Recovery Winch offers exceptional performance and reliability. With a powerful hydraulic motor and 2-stage planetary gear, it can handle loads with ease. The manual clutch and multidisc brake provide precise control and safety. Recommended for professionals.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

30,000 lb Hydraulic Recovery Winch | Long Drum | Manual Clutch

PSHDH30000M

$6,940.00
$6,940.00
Shipping calculated at checkout.
In Stock
Customization Inquiry
WARNING
This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation
