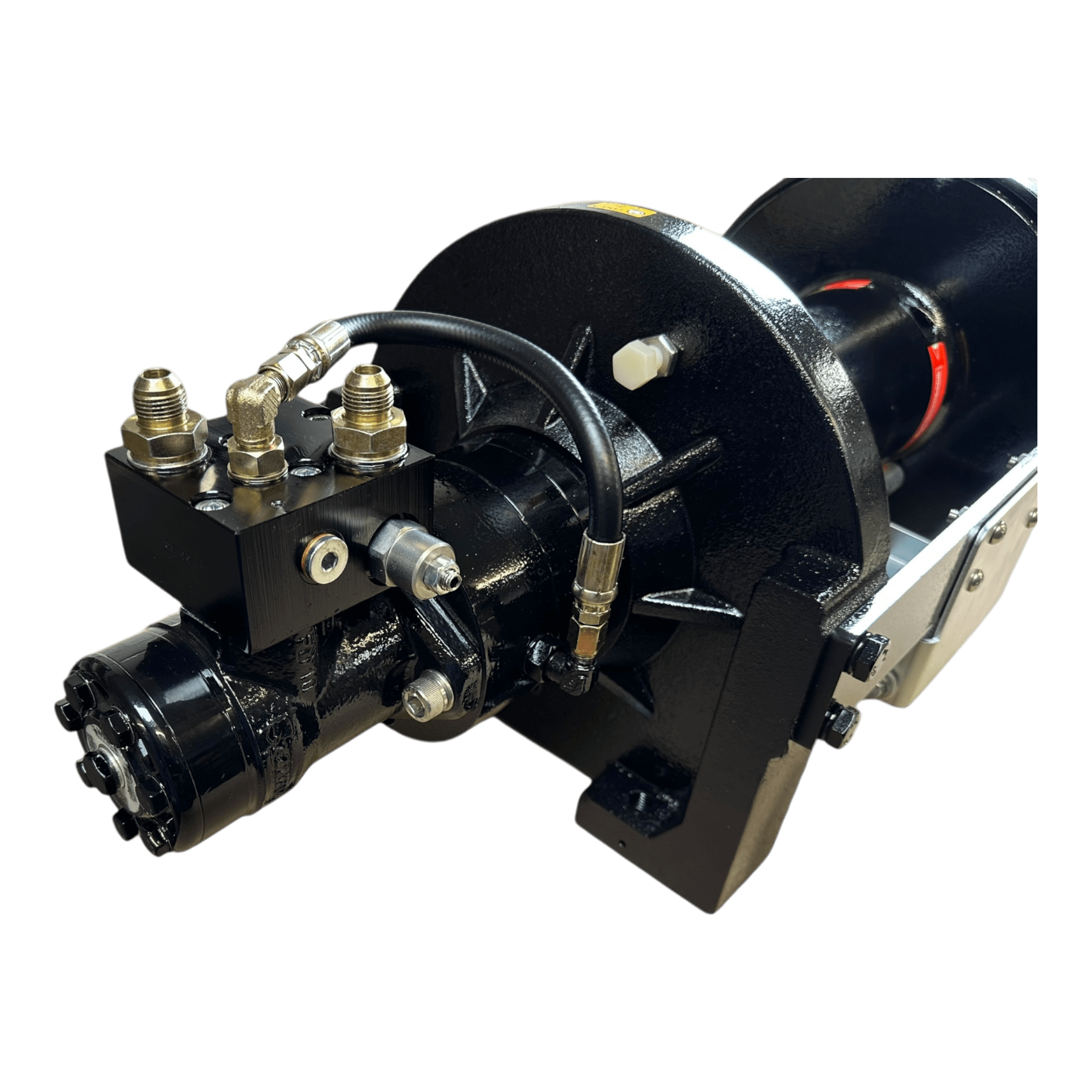

The 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch by PIERCE, featuring cylindrical components and hydraulic fittings alongside a load-holding cone brake, rests against a black background.

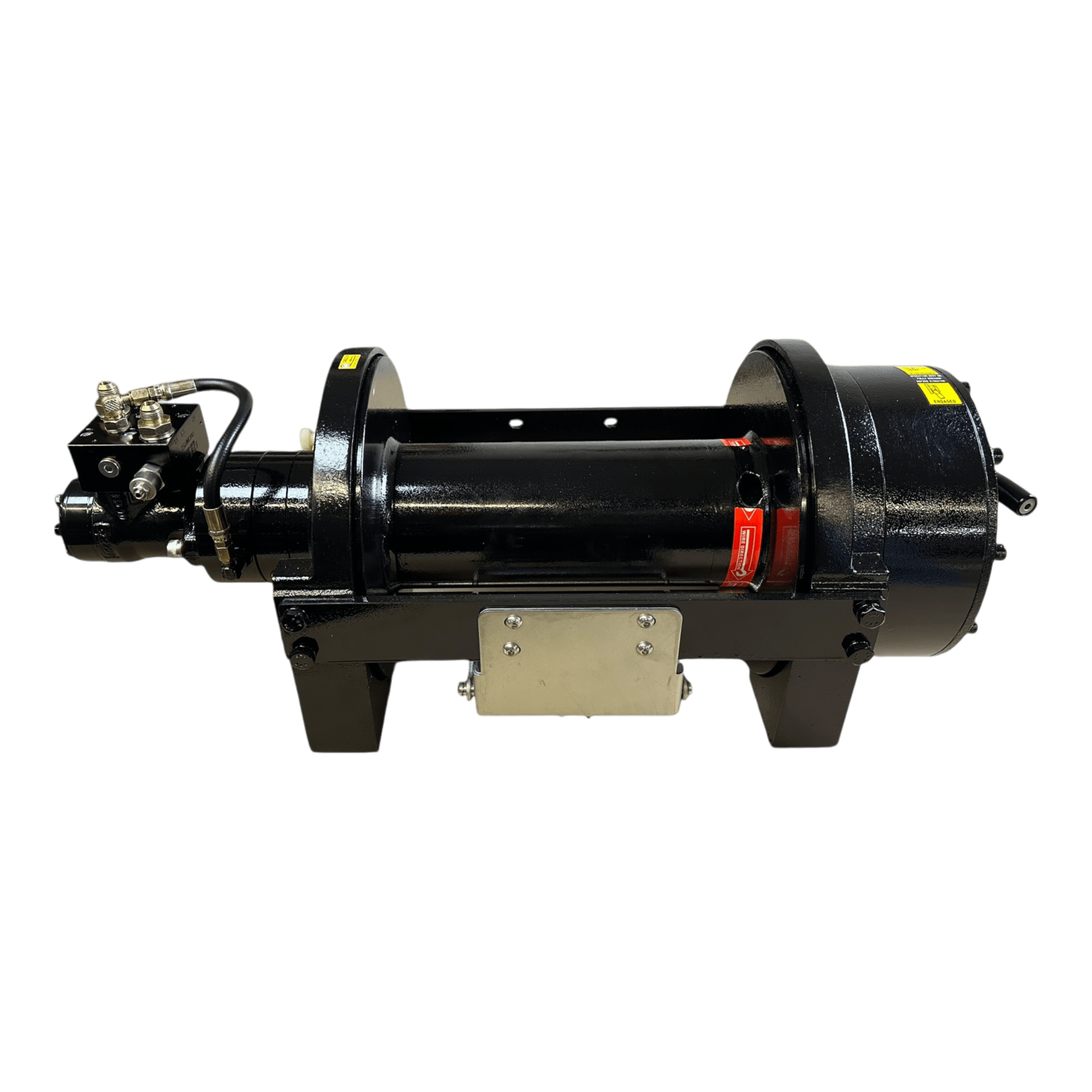

A PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch is set against a black background, featuring an industrial look with its load-holding cone brake.
PSHDH Manual Clutch Option

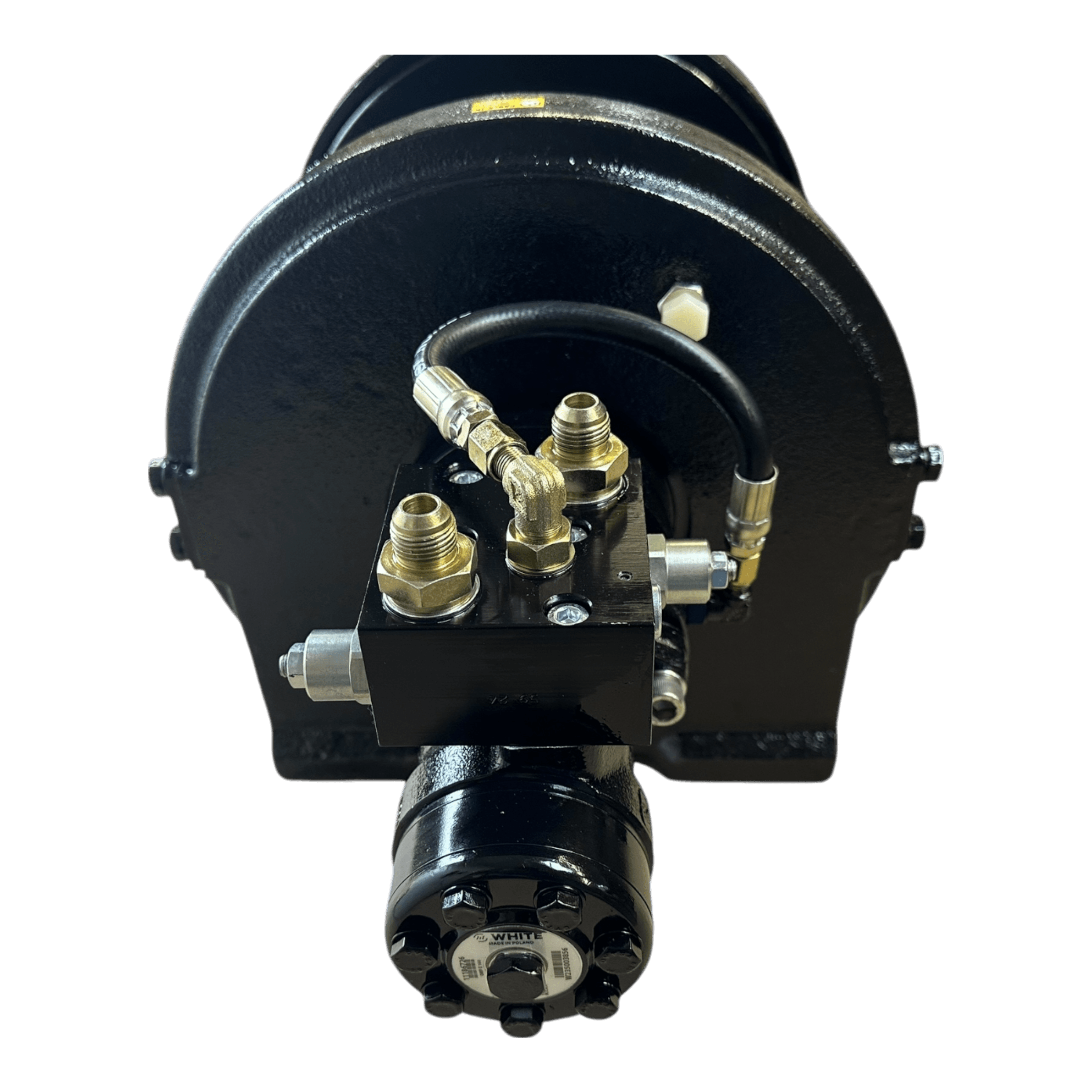

Close-up of a PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, featuring tubes and fittings against a plain black background. This intricate setup integrates precision engineering with its load-holding cone brake.

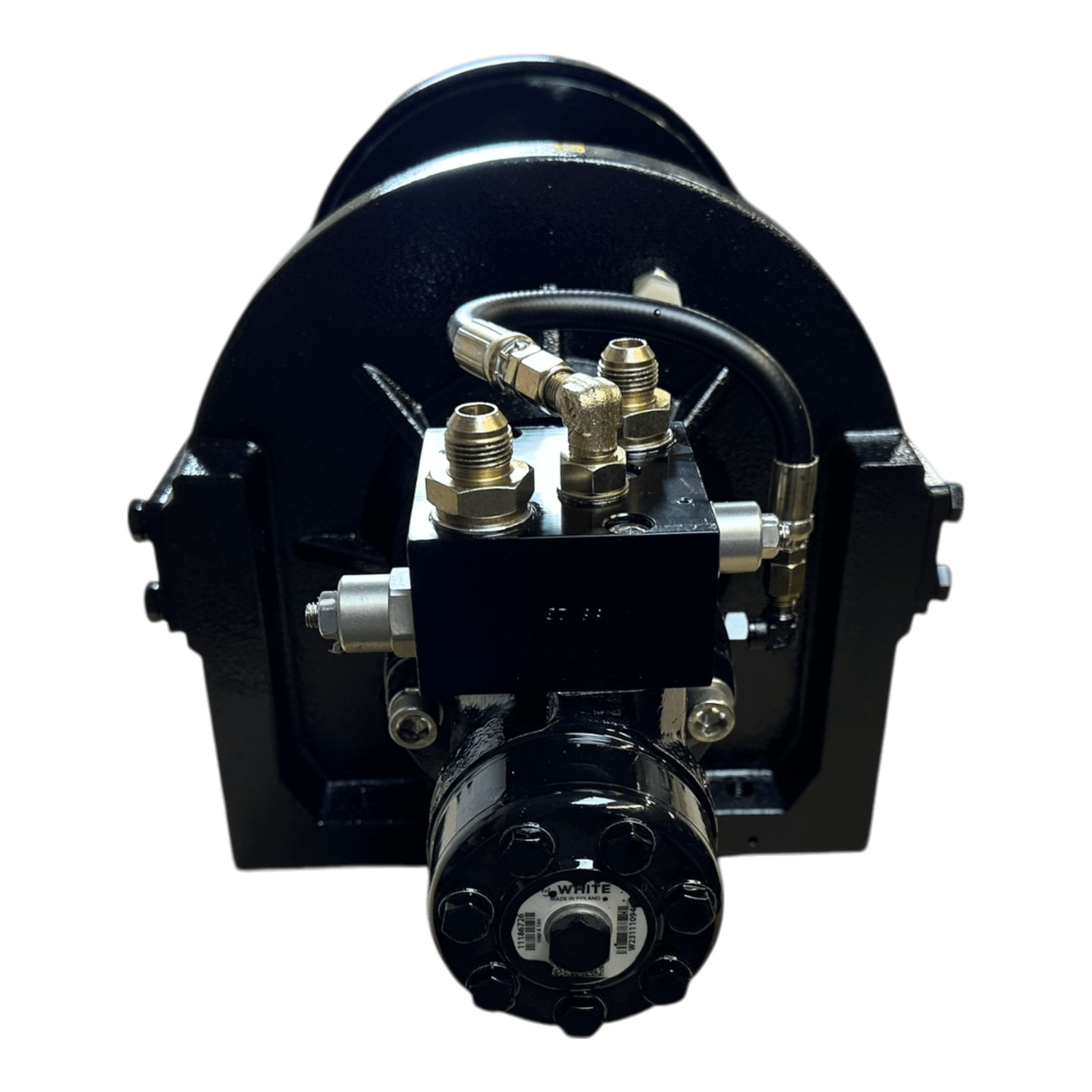

Front view of a PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch, showcasing black industrial design with metal fittings and connectors, and featuring a load-holding cone brake for enhanced safety.

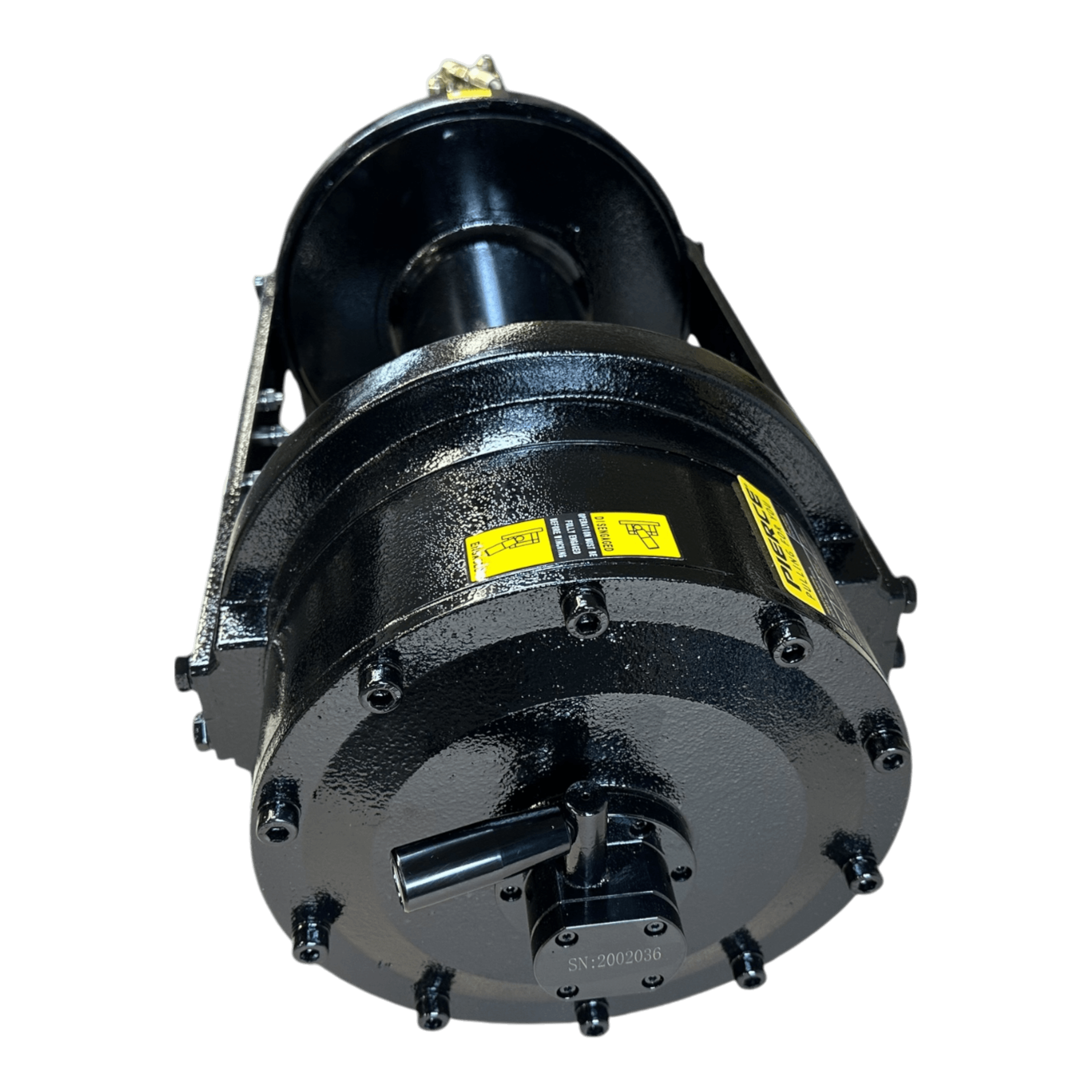

PIERCE's 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch, showcasing yellow labels and a load-holding cone brake, set against a black background.
The PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch features a black industrial design with brass fittings and hoses, a load-holding cone brake, and is mounted on a base against a black background.
    The 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch by PIERCE, featuring cylindrical components and hydraulic fittings alongside a load-holding cone brake, rests against a black background.
    A PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch is set against a black background, featuring an industrial look with its load-holding cone brake.
    PSHDH Manual Clutch Option
    Close-up of a PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, featuring tubes and fittings against a plain black background. This intricate setup integrates precision engineering with its load-holding cone brake.
    Front view of a PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch, showcasing black industrial design with metal fittings and connectors, and featuring a load-holding cone brake for enhanced safety.
    PIERCE's 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch, showcasing yellow labels and a load-holding cone brake, set against a black background.
    The PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch features a black industrial design with brass fittings and hoses, a load-holding cone brake, and is mounted on a base against a black background.
The 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch by PIERCE, featuring cylindrical components and hydraulic fittings alongside a load-holding cone brake, rests against a black background.
A PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch is set against a black background, featuring an industrial look with its load-holding cone brake.
PSHDH Manual Clutch Option
Close-up of a PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, featuring tubes and fittings against a plain black background. This intricate setup integrates precision engineering with its load-holding cone brake.
Front view of a PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch, showcasing black industrial design with metal fittings and connectors, and featuring a load-holding cone brake for enhanced safety.
PIERCE's 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch, showcasing yellow labels and a load-holding cone brake, set against a black background.
The PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch features a black industrial design with brass fittings and hoses, a load-holding cone brake, and is mounted on a base against a black background.
The 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch by PIERCE, featuring cylindrical components and hydraulic fittings alongside a load-holding cone brake, rests against a black background.
A PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch is set against a black background, featuring an industrial look with its load-holding cone brake.
PSHDH Manual Clutch Option
Close-up of a PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, featuring tubes and fittings against a plain black background. This intricate setup integrates precision engineering with its load-holding cone brake.
Front view of a PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch, showcasing black industrial design with metal fittings and connectors, and featuring a load-holding cone brake for enhanced safety.
PIERCE's 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch, showcasing yellow labels and a load-holding cone brake, set against a black background.
The PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch features a black industrial design with brass fittings and hoses, a load-holding cone brake, and is mounted on a base against a black background.
    The 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch by PIERCE, featuring cylindrical components and hydraulic fittings alongside a load-holding cone brake, rests against a black background.
    A PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch is set against a black background, featuring an industrial look with its load-holding cone brake.
    PSHDH Manual Clutch Option
    Close-up of a PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, featuring tubes and fittings against a plain black background. This intricate setup integrates precision engineering with its load-holding cone brake.
    Front view of a PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch, showcasing black industrial design with metal fittings and connectors, and featuring a load-holding cone brake for enhanced safety.
    PIERCE's 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch, showcasing yellow labels and a load-holding cone brake, set against a black background.
    The PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch features a black industrial design with brass fittings and hoses, a load-holding cone brake, and is mounted on a base against a black background.
The 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch by PIERCE, featuring cylindrical components and hydraulic fittings alongside a load-holding cone brake, rests against a black background.
A PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch is set against a black background, featuring an industrial look with its load-holding cone brake.
PSHDH Manual Clutch Option
Close-up of a PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch, featuring tubes and fittings against a plain black background. This intricate setup integrates precision engineering with its load-holding cone brake.
Front view of a PIERCE 20,000 lb hydraulic recovery winch with a long drum and manual clutch, showcasing black industrial design with metal fittings and connectors, and featuring a load-holding cone brake for enhanced safety.
PIERCE's 20,000 lb Hydraulic Recovery Winch with a Long Drum and Manual Clutch, showcasing yellow labels and a load-holding cone brake, set against a black background.
The PIERCE 20,000 lb Hydraulic Recovery Winch with a long drum and manual clutch features a black industrial design with brass fittings and hoses, a load-holding cone brake, and is mounted on a base against a black background.

Product Information

Characteristics

The PIERCE planetary winch incorporates a highly efficient line speed. From vehicle recovery to oil field equipment, the odds are, you have seen this winch. Thousands of these are in the field today in many different industries, filling many different needs.

Winch Installation

In order to install the mounting bolts are inserted from the bottom of the mounting plate, into the winch, allowing for easy fabrication of custom mounts and efficient insertion into applications.

These planetary hydraulics feature a load-holding cone brake allowing this winch to fill even more needs.

Line Pull and Rope Capacity:

Layer of Wire Rope

Pull by Layer, lb

Total Rope on the Drum, ft

Line Speed at 15.9 gpm. fpm

1st

30,000

36

16

2nd

25,216

82

19

3rd

21,745

131

23

4th

19,115

190

26

5th

17,052

246

29

What is Included

1 x (PSHDH20000M) 20,000 lb Hydraulic Recovery Winch | Long Drum | Manual Clutch
1 x Roller Fairlead PSHDH Series
1 x Cable Tensioner
1 x Instructions

Specifications

Specification Details
MAX CAPACITY (LBS.) 20000
POWER SOURCE Hydraulic
MAX LINE SPEED 23 fpm @ 15.9 gpm
MAX OIL FLOW (GPM) 15.9
OPERATIONAL PRESSURE (PSI) 2175
HYDRAULIC MOTOR 9.5 in³ / rev
GEAR TYPE 2-Stage Planetary Gear
GEAR RATIO 30:1
CONSTRUCTION Aluminum Die Cast Housings with Steel Drum
DRUM ROTATION Counter-Clockwise (Underwound)
CLUTCH TYPE Output Shaft Disengaged
BRAKE TYPE Multidisc Brake

PSHDH20000 Line Pull and Rope Layer

Data is calculated based on a consistently supplied 15.9 gpm flow with 9/16" winch cable. Environmental and other conditions may affect results. Always use the proper safety gear and follow all safety precautions when winching.
Layer of Wire Rope Pull by Layer (lbs.) Total Rope on the Drum (ft.) Line Speed (@ 15.9 gpm) (fpm)
1st 20,000 39 23
2nd 17,017 89 27
3rd 14,813 141 31
4th 13,113 203 35
5th 11,762 262 39

Resources

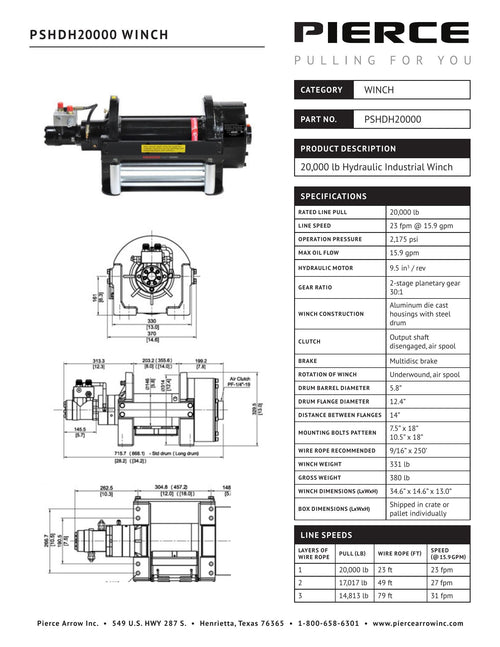

Spec Sheet
PSHDH20000 Spec Sheet

Warranty

1 Year Warranty

All Parts guaranteed free of Defects.

  • Mechanical, Electrical, and Hydraulic parts are guaranteed to be free of manufacturer defects.
  • Parts will be replaced at the manufacturer's discretion.
  • The Warranty period is taken from the date the goods leave our factory, although we will accept a later date if the Distributor can confirm date of purchase.
Conditions
  • Does not include normal wear and tear, misuse, water damage or other forms of abuse.
  • Electrical components must have proper wiring verified and be protected by appropriate fuses, breakers, and power disconnects to qualify for any warranty coverage.
  • This warranty only covers the original products sold by PIERCE. Labor, down time, loss of work and other expenses are not included in this warranty.
  • You must contact us first to receive a return merchandise authorization number and instructions to return and receive warranty.
  • All return shipping logistics and costs are non-refundable and the responsibility of the buyer.
  • Call us to explain the problem, making sure you have both the model number and the serial number on hand. Often, we can resolve the matter over the phone.
Characteristics

The PIERCE planetary winch incorporates a highly efficient line speed. From vehicle recovery to oil field equipment, the odds are, you have seen this winch. Thousands of these are in the field today in many different industries, filling many different needs.

Winch Installation

In order to install the mounting bolts are inserted from the bottom of the mounting plate, into the winch, allowing for easy fabrication of custom mounts and efficient insertion into applications.

These planetary hydraulics feature a load-holding cone brake allowing this winch to fill even more needs.

Line Pull and Rope Capacity:

Layer of Wire Rope

Pull by Layer, lb

Total Rope on the Drum, ft

Line Speed at 15.9 gpm. fpm

1st

30,000

36

16

2nd

25,216

82

19

3rd

21,745

131

23

4th

19,115

190

26

5th

17,052

246

29

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

20,000 lb Hydraulic Recovery Winch | Long Drum | Manual Clutch

PSHDH20000M

Regular price
$5,680.00
Sale price
$5,680.00
Regular price
Shipping calculated at checkout.
In Stock
Customization Inquiry
WARNING
This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation
