Product Information

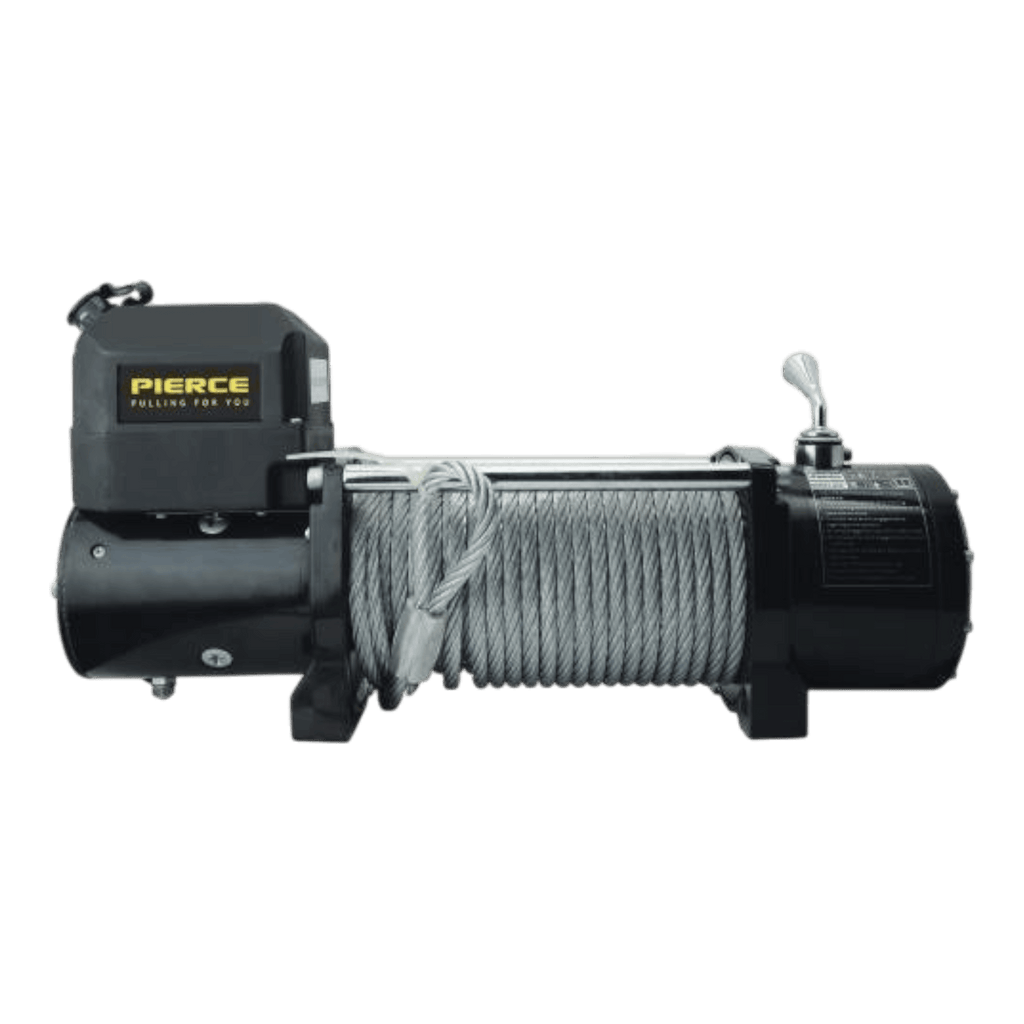

Utilize this 12,000 lb. recovery winch for a wide range of applications, whether for off-roading excursions or for loading equipment onto your utility trailer. This winch boasts a powerful motor with high ampere resistance and output strength, as well as a zinc alloy gear box and a three-stage planetary gear speed reduction system. With its superior torque strength and mechanical safety brake system, it is equipped to handle heavy loads. The user-friendly design of the PS series winches makes operation and maintenance a breeze. Additionally, the four-way steel wire guide wheel allows for easy input of the wire rope in various directions.

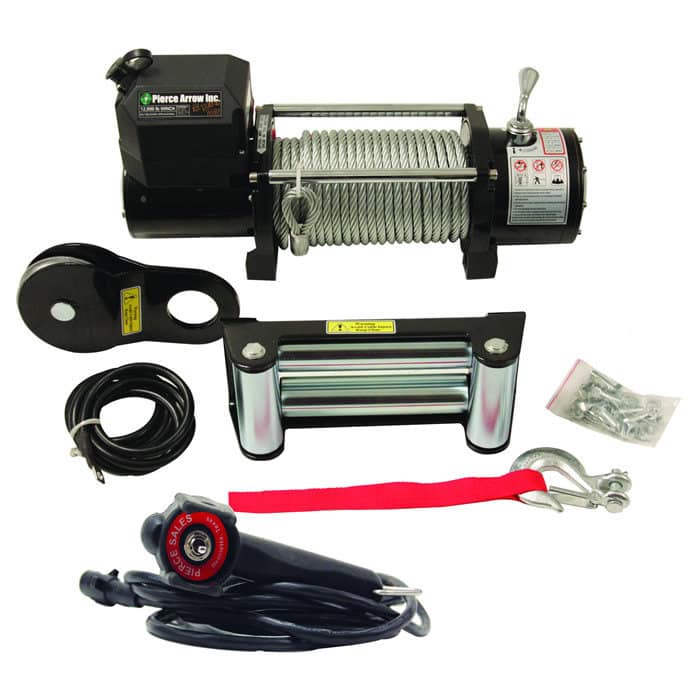

What is Included
1 x
(PS12000) 12,000 lb Recovery Winch
↗
1 x

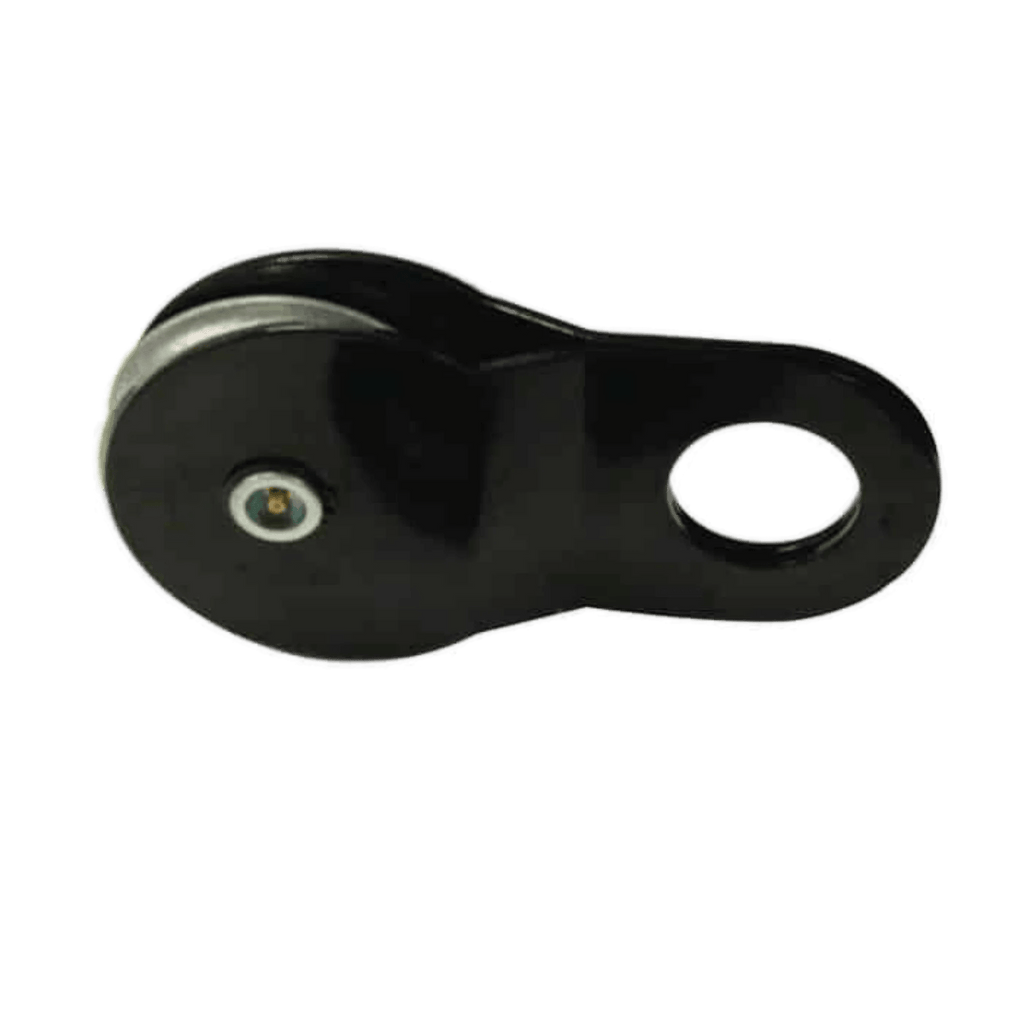

(PLB1030B) Snatch Block | WLL 10,000 lbs
↗
1 x

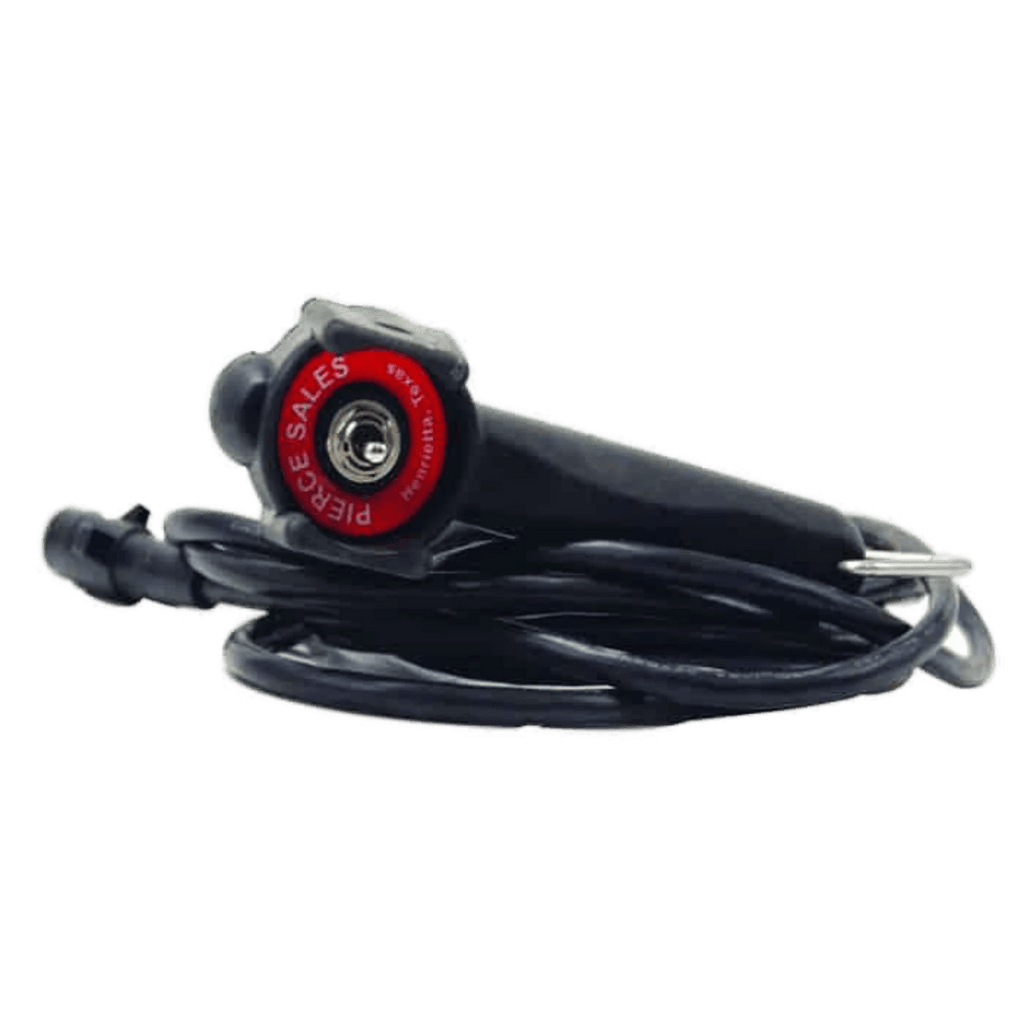

(P040N) PIERCE PS Series Planetary Winch Control
↗
1 x

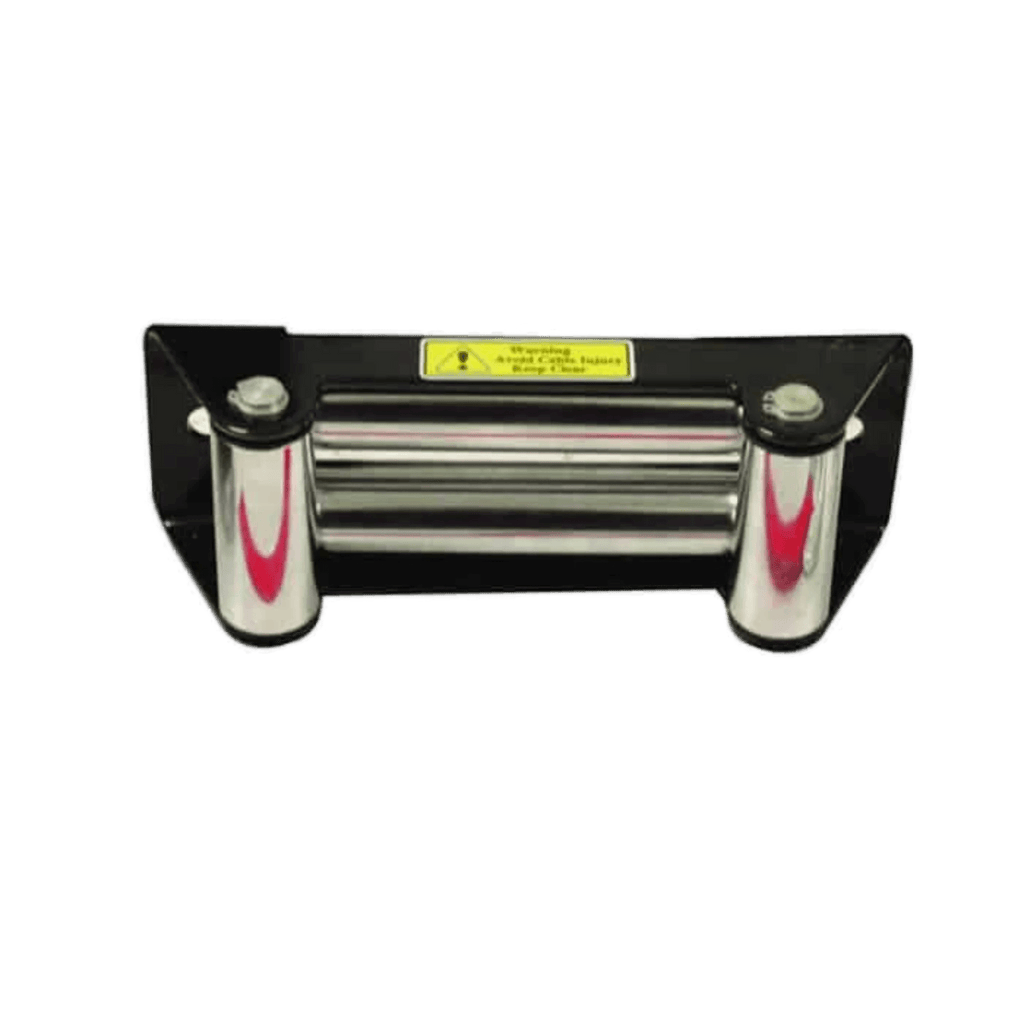

(RF10000) Roller Guide | Electric Planetary Winches | 9,000 lbs | 20,000 lbs
↗
1 x
⅜" by 94' of Winch Cable
1 x
Cable Tensioner
1 x
Instructions
Specifications
- BRAKE TYPE
- Automatic Built-in Drum Brake
- CLUTCH TYPE
- Sliding Ring Gear
- CONSTRUCTION
- Cast Metal
- DRUM ROTATION
- Counter-Clockwise (Underwound)
- GEAR RATIO
- 265:1
- GEAR TYPE
- 3-Stage Planetary Gear
- INCLUDED WIRE ROPE
- ⅜" x 94'
- MAX CAPACITY (LBS.)
- 12000
- MAX LINE SPEED
- 21.3 fpm
- MOTOR (HP)
- 5.5
- OPERATING VOLTAGE
- 12 Volts DC
- RECOMMENDED BATTERY
- 650 CCA
- RECOMMENDED WIRE
- 2 gauge
Warranty
Resources
Manual

PS Series Winch Manual
Wiring Diagram

PS528N - Compact Solenoid Assembly Wiring
Spec Sheet

PS002 - PS528N - Wiring Diagram
Guide

3 Post Motor Test
Wiring Diagram

PSP - Plug for Recovery Winch Solenoid
Wiring Diagram

P040N - Wiring Diagram
Spec Sheet

PS12000 Spec Sheet
Guide

PSCTPS - Cable Tensioner Installation

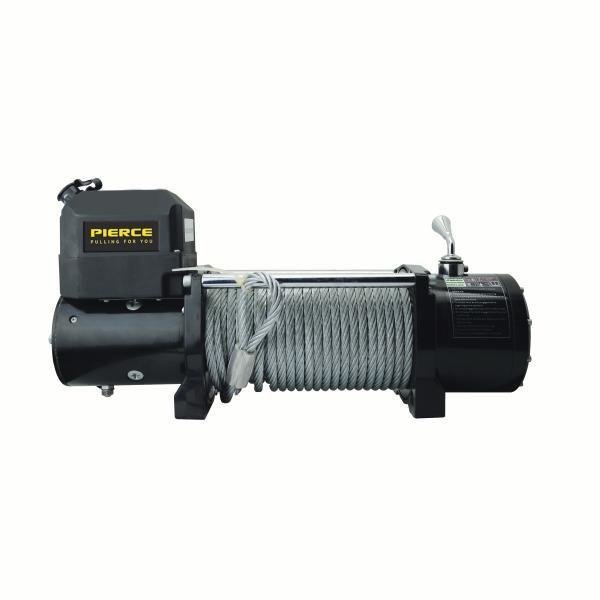

12,000 lb Recovery Winch
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
$0.00
Shipping calculated at checkout.
In Stock


WARNING
This Winch is not intended or designed to transport people. Do not use winch to hold a load during transportation
